EVOLVEO Detective POE8 SMART, camera system

CAMERA NETWORK POE SYSTEM

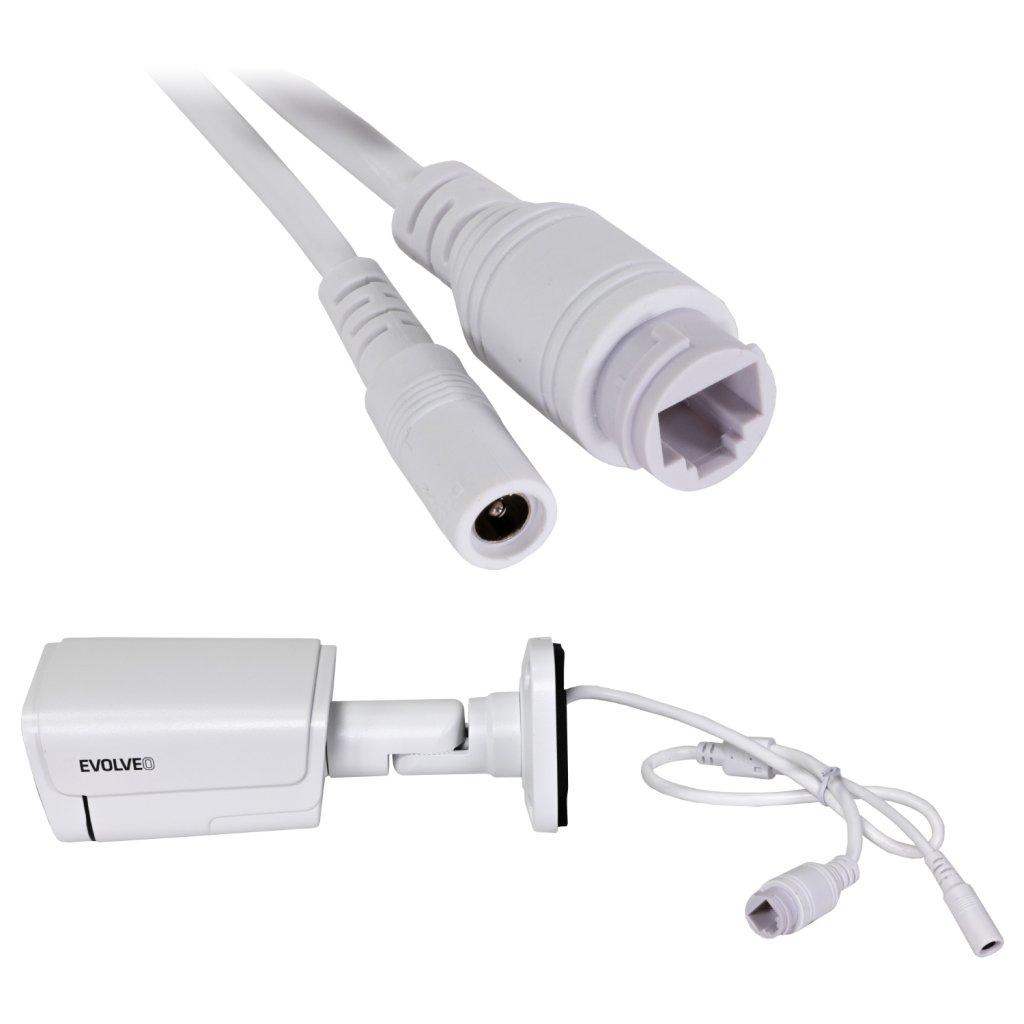

The 8 channel EVOLVEO Detective POE8 SMART camera system is the ideal solution for monitoring and security of your home, office, warehouse or business. It is a compact camera system that uses POE power supply for the cameras, so it is not necessary to have a power adapter socket for each camera. UTP cable with RJ45 connector on both ends, takes care of both the power supply of the camera and the transmission of signals from the NVR unit to the cameras. You can use its clear image both day and night for protection and monitoring of your family home or business, as well as for surveillance of your shop or for surveillance of public spaces. All recorded events are uploaded directly to a hard drive that you insert into the main unit, so you are in full control of your data. You can access the record using the mobile app or the iCMS program for WIndows OS. The recording can also be viewed on a monitor connected directly to the NVR unit via HDMI or VGA cable.

CONNECTION OPTIONS

If you already have IP cameras that support ONVIF and you need to unify the recording system and possibly provide access through the app, there is nothing easier than to add the cameras to the free channels EVOLVEO Detective POE8 SMART just need the cameras to be in the same network as the NVR unit, then you just have to search for compatible devices, enter the password and the cameras are unified under one interface< including recording to the NVR unit's hard drive, so your footage remains safely stored on local storage.

POWERING

Before the first start-up, it is enough to insert a disk into the device, which is not difficult a few screws to remove the cover and then insert the disk in the format of 3.5" or 2.5" can be handled by everyone, only a Phillips screwdriver is needed. Then just connect your mouse, monitor and network cable and you're ready to start setting up your computer. Detective POE8 SMART interface fully localized into English language is a matter of course. A step-by-step guide in English will guide you through the initial setup. The enclosed cameras are already paired with the NVR unit, so you just need to connect them using a UTP cable.

EXTENSION OF ADDITIONAL CAMERAS

If the basic 4 cameras in the package are not enough for you, or if the camera design is not suitable. The EVOLVEO camera system can be expanded with additional cameras in Antivandal. Or about EVOLVEO's WiFi/Ethernet camera Detective WIP 2M SMART, which is fully self-contained and supports ONVIF protocol to add it under one camera system in the network.

Thanks to the SMART solution, the device can be connected to other devices such as EVOLVEO ALARMEX PRO, where you can use the SMARTLIFE app's scenarios to link individual device functions to each other. All devices can be found in the category SMART.

• 8 channel Full HD NVR with POE power
• 4× outdoor all-metal camera
• Cable max lenght: 100m

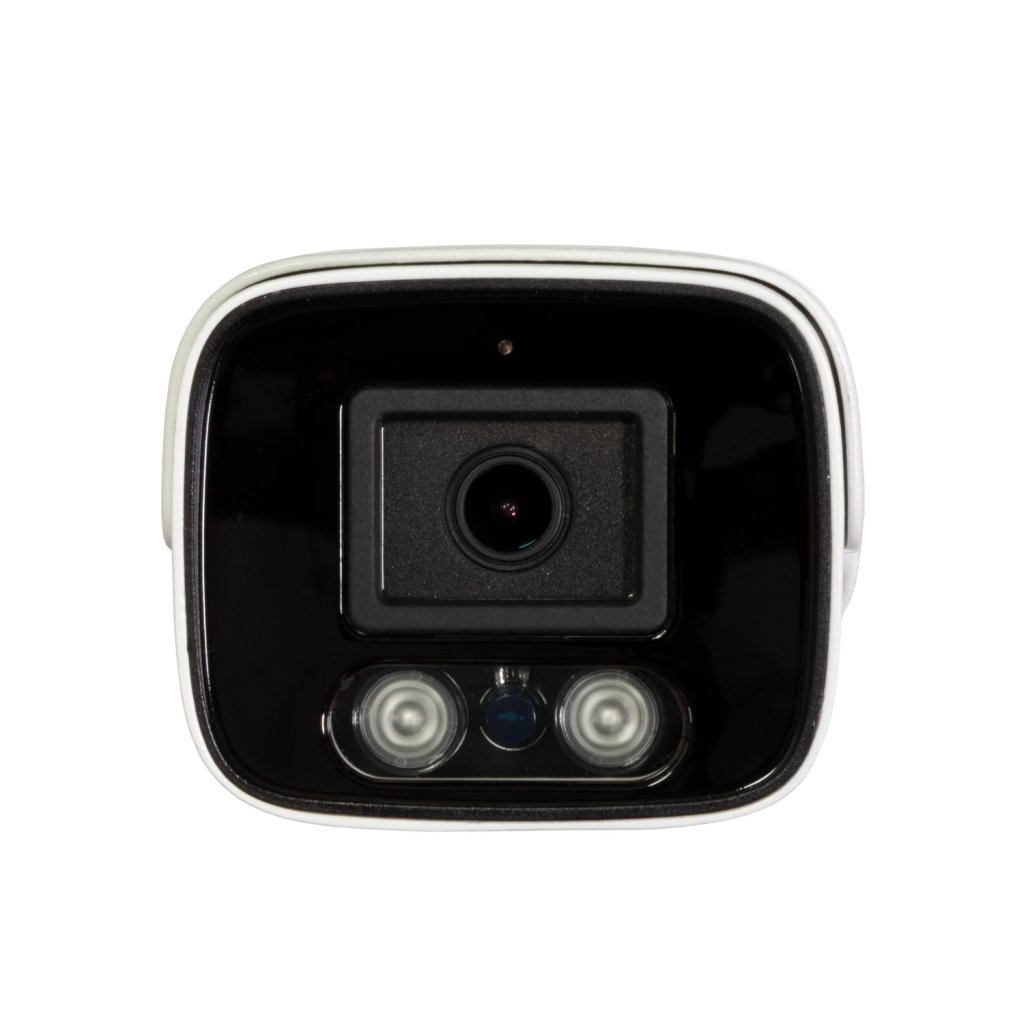

• IR night light 850nm 2x 3W IR LED
• Dosvit IR 15-20m
• 1/2.9" 2Mp CMOS sensor
• Lens 4mm f=2.4 fixed, horizontal angle 84°, vertical angle 45°
• Full HD 1080p 30fps footage
• Mainstream: 1080p at 2Mbps
• Substream: 640x360 at 500Kbps
• H.265 record compression
• Hisilicon Hi3536DV100
• USB and mouse support (mouse included)
• 1× SATA 3.5" or 2.5" HDD bays - Up to 8TB

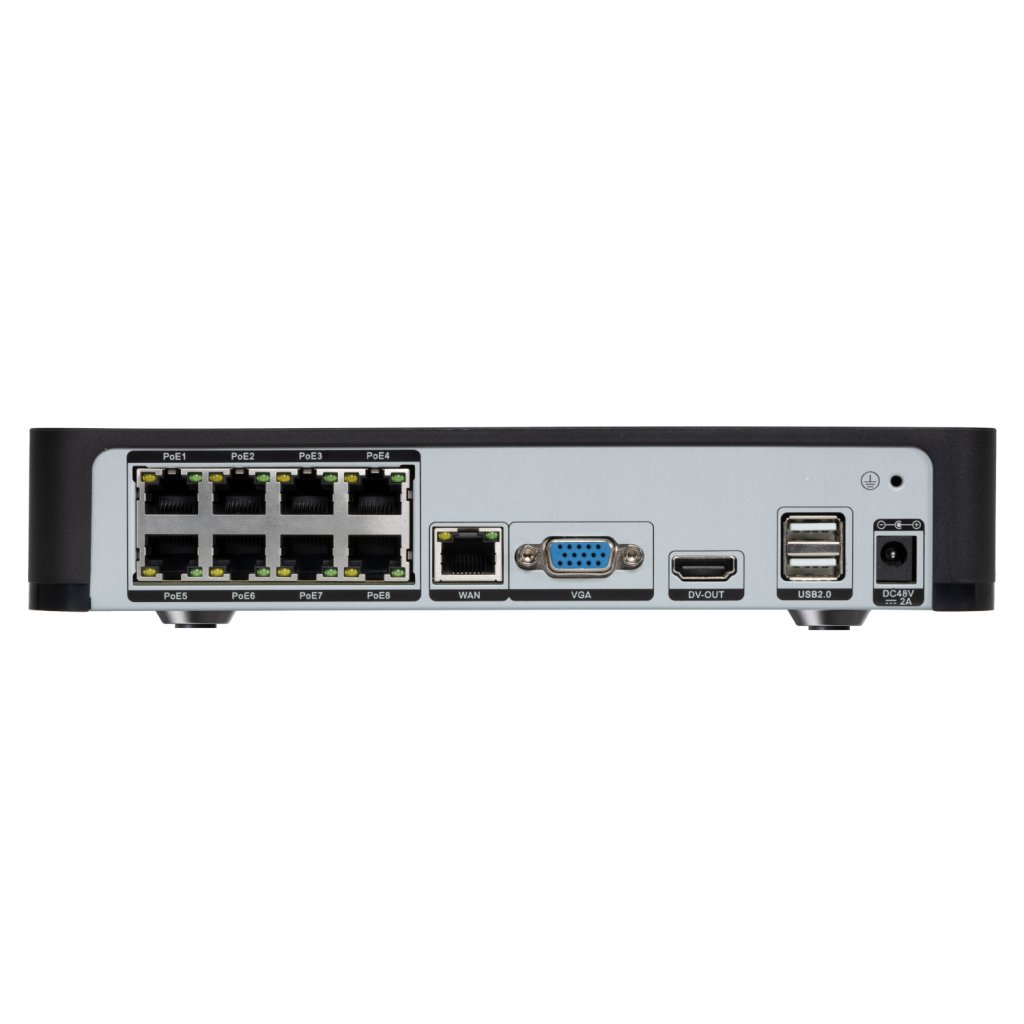

• 1xWAN, 2× USB, VGA, HDMI, 8x LAN/POE port for cameras
• Smartlife (Tuya) app in EN for iOS and Android
• iCMS Program for Windows OS
• Support Onvif protocol
• Movement recognition from image
• Antivandal camera or wifi camera from EVOLVEO
• Operating temperature -15°C/+50°C
• Dimensions NVR WxHxD: 235x49x225mm

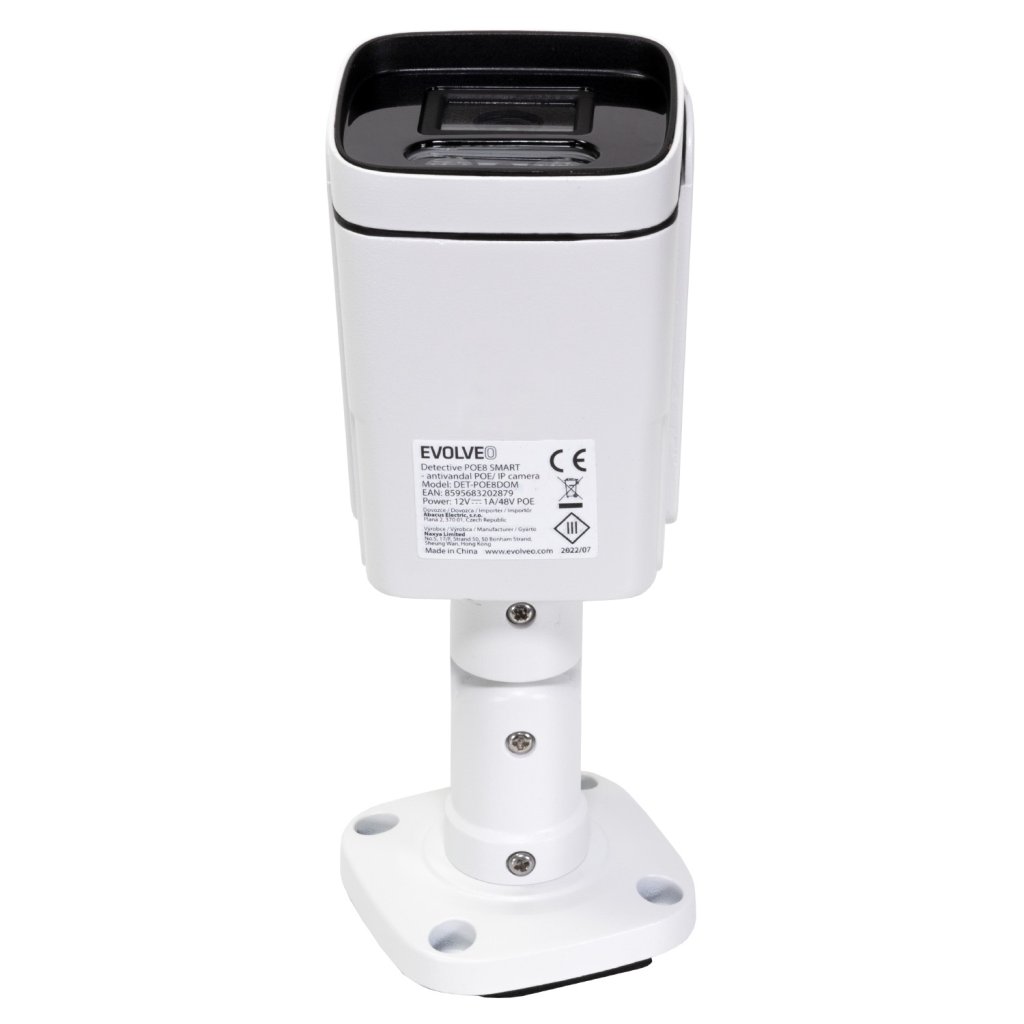

• Camera dimensions WxHxD: 70x55x185mm,  screw spacing for mounting 47x47mm
• NVR weight: 950g without HDD
• Camera weight: 414g
• Max needed: 96W
• WITHOUT embedded HDD
• Network cables not included

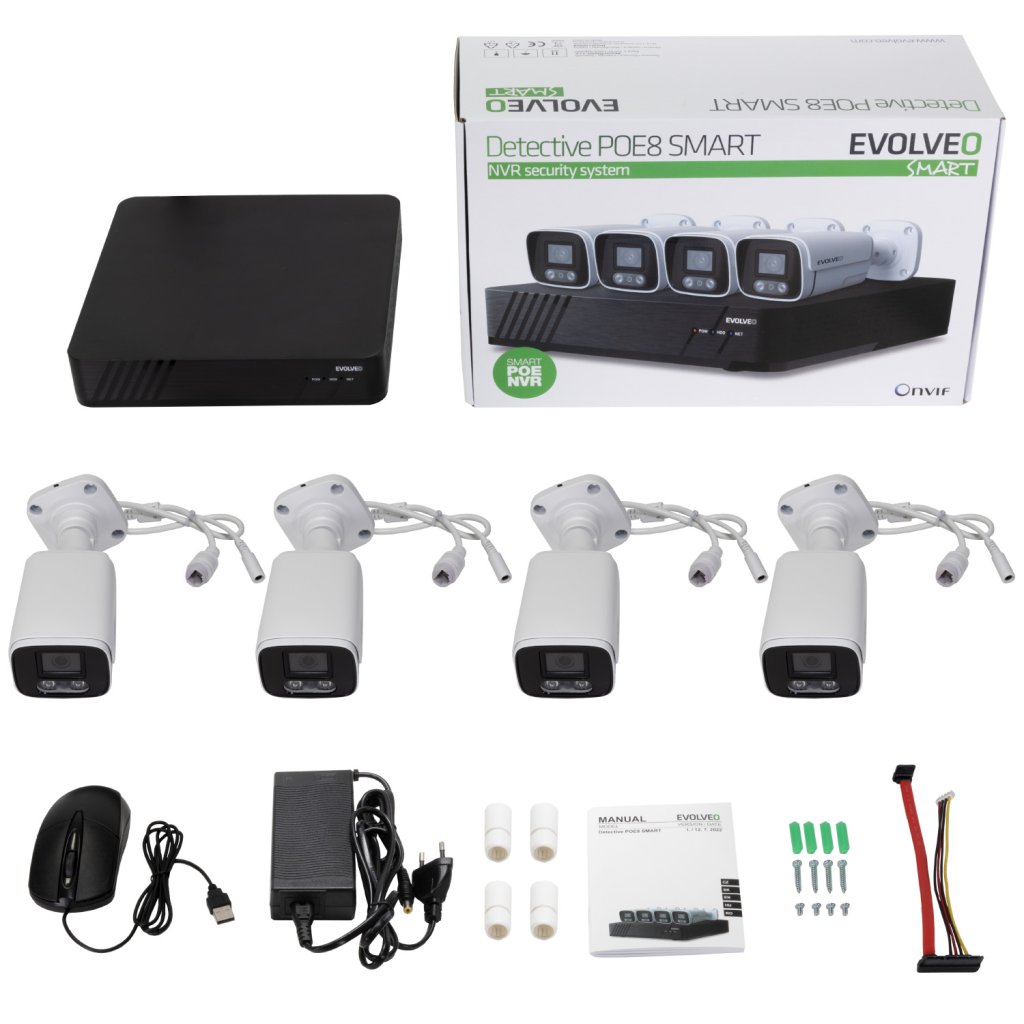

Contents of the Package:

NVR unit with 8x LAN/POE input, SATA connection for up to 8TB drive

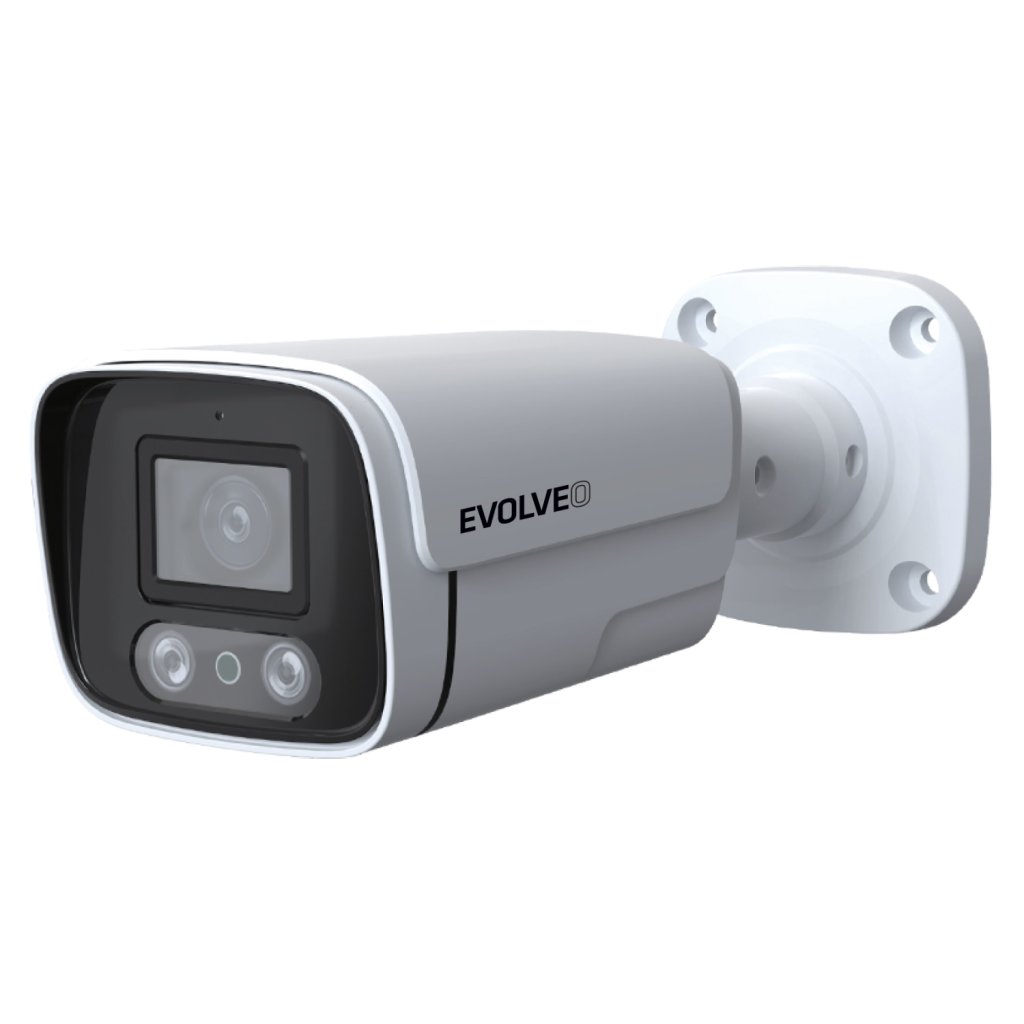

4x POE Bullet IP66 night vision camera

1x power adapter DC 48V 2A

4x camera mounting kit

4x bayonet sealing cap for RJ45 connector

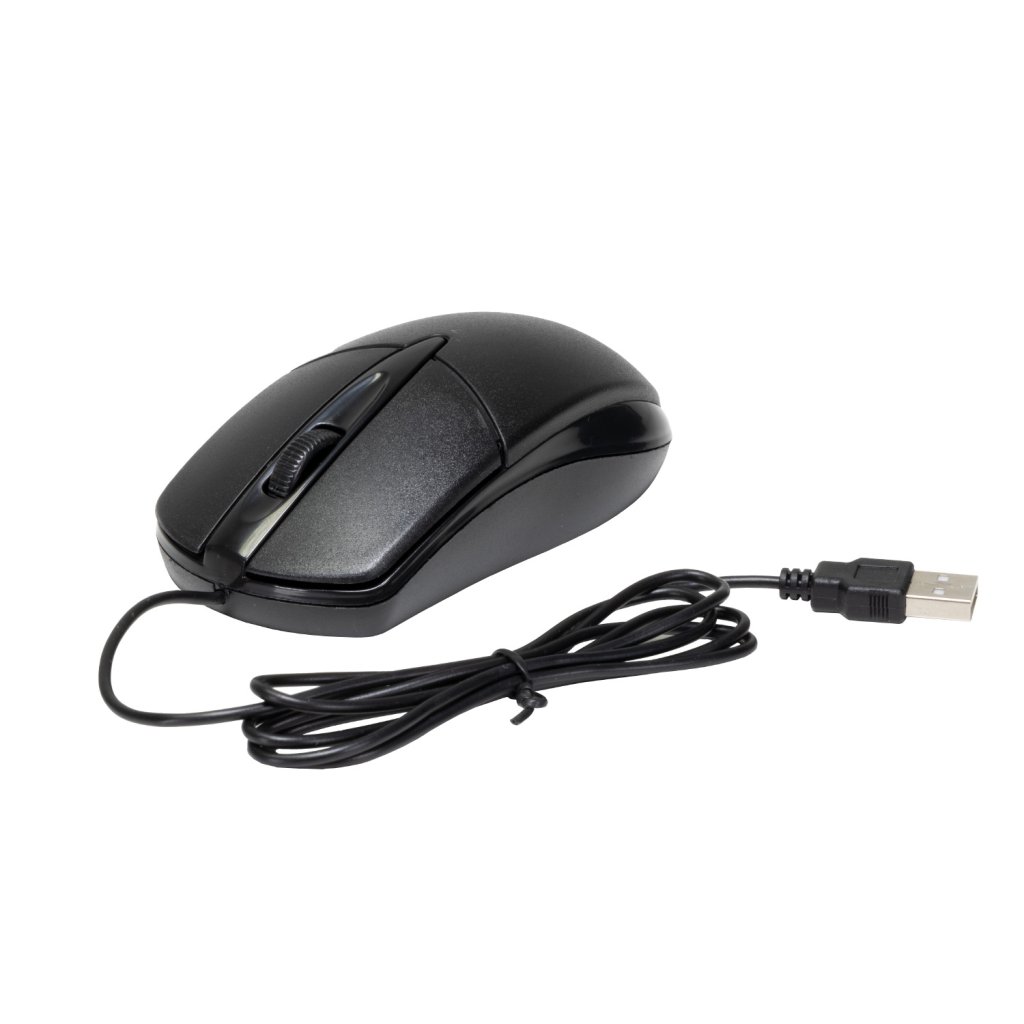

1xUSB mouse

1xSATA cable for HDD connection

1x User Manual
