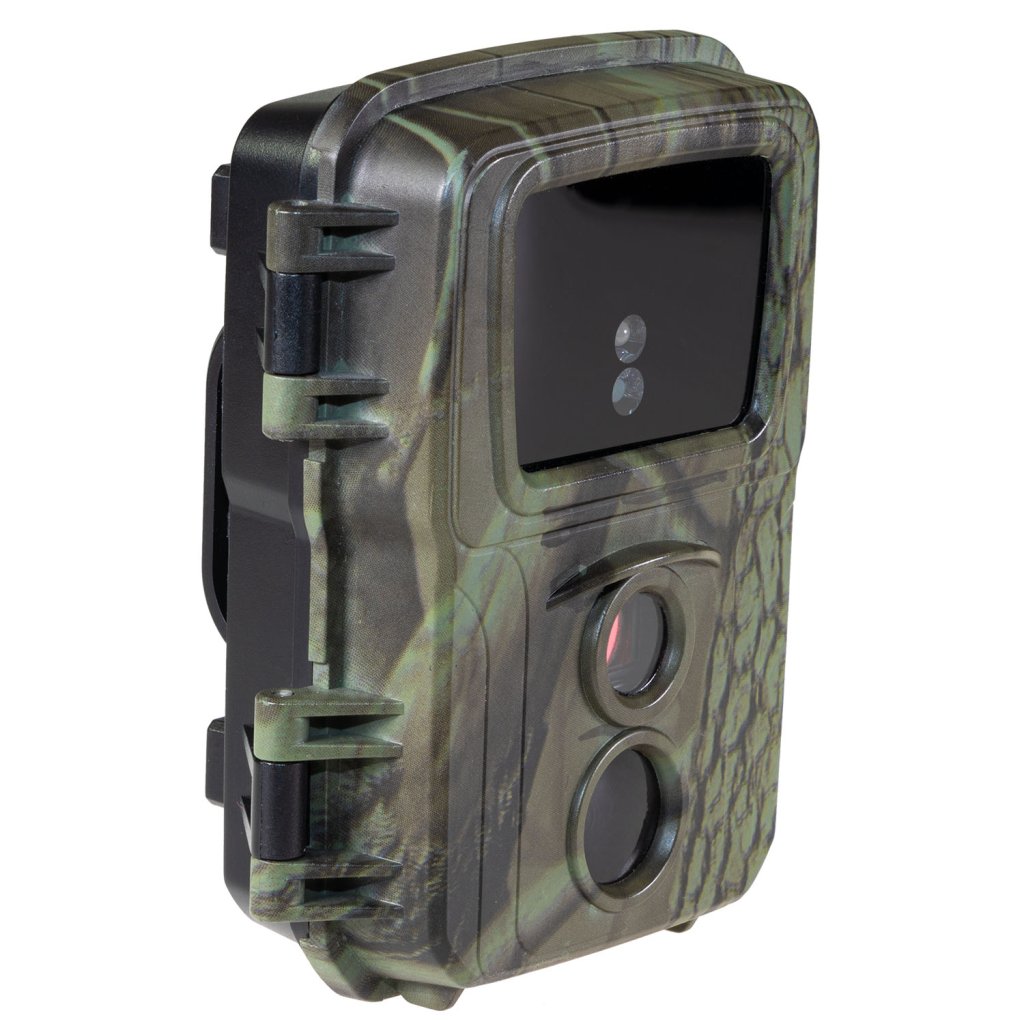

EVOLVEO StrongVision MINI

StrongVision Mini is a compact trail camera primarily intended for gamekeepers. Despite its small size, it provides robust hardware for photo and video recording.

Size matters

With dimensions of 105 x 85 x 40mm, the camera fits into small spaces like a crack in a tree trunk or rock. It can also be mounted on a tree trunk using the fixtures included.

Day and night

Despite its small size, the trail camera is equipped with a 850 nm IR light, making it great for photographing wild animals at night. The IR light allows you to take black and white photographs and videos during the night. Day recordings are in colour. Switching between day and night mode is fully automatic based on the intensity of surrounding light.

Great equipment

Despite its small size, the camera has the same functions as our standard models. The 5 Mpx sensor is able to take 20 Mpx photos and 1080p FullHD video, with a shutter speed at the optimal 0.8 s. The camera has several recording modes. Besides regular photography with adjustable definition, it is equipped e.g. with a burst function to take up to 9 successive pictures. You can choose combined recording with both photos and video, or just video.

Time-lapse

The device can also be used as a time-lapse camera with an interval of 5, 10 or 30 minutes between individual photos. Time-lapse can be used to monitor the development of a construction or areas where PIR activation of the camera is not suitable.

Settings

All you need to do is insert batteries and switch it on. The trail camera is initially set to the most popular mode. Setting the camera can be done using the configuration file on the SD card on your computer in the comfort of your home.

Accessories

The camera’s operating time can be extended using specialised EVOLVEO accessories, such as a solar panel or added to the original 230 V one.

Parameters:

Memory: Micro SD Card Max 32 GB

Lens: F=3.1; FOV=60°

Dimensions: 105 x 85 x 40 mm

LED: 850 nm IR

Passive IR sensor (PIR):  Field of view 90°

Number of IR LEDs: 26 LEDs

Maximum illumination range of IR LEDs: 20 metres/22 yards (optimal illumination 6–8 m)

Activation speed: 0.8 s

Shutter lag: 1/5/10/30 sec/min

Photography resolution: 20 MP/16 MP/12 MP

Burst/photo sequence: 1/3/6/9

Video resolution: 1080p/720p/VGA

Recording format: JPEG/AVI

Date and time included in the photo:  Yes

Stand-by current: 0.02 mA

Power: 4× AA 1.5 V LR6 batteries, External 6 V DC (1.2 V batteries not suitable)

Water resistance: IP 65

Package contents:

• EVOLVEO StrongVision Mini
• fastening strap
• Micro SD card reader
• user manual
