EVOLVEO DoorPhone 10-2W - 2-wire video phone with 32GB memory app
- Full HD camera with night vision
- Wi-Fi control via mobile phone
- 1" touch LCD monitor
- Access system up to 500 chips
- Simple two-wire connection
| Category: | Video telephones and home intercoms |
|---|---|
| EAN: | 8595683205160 |
| EAN: | 8595683205160 |
| Obj.kód: | SED DP-10-2-W |
| waranty: | 24 months |
Goods in stock, dispatched within 24 hours
With purchase over €85 (for selected countries)
Need help? We're here for you!
Network of GLS outlets, Packeta group.

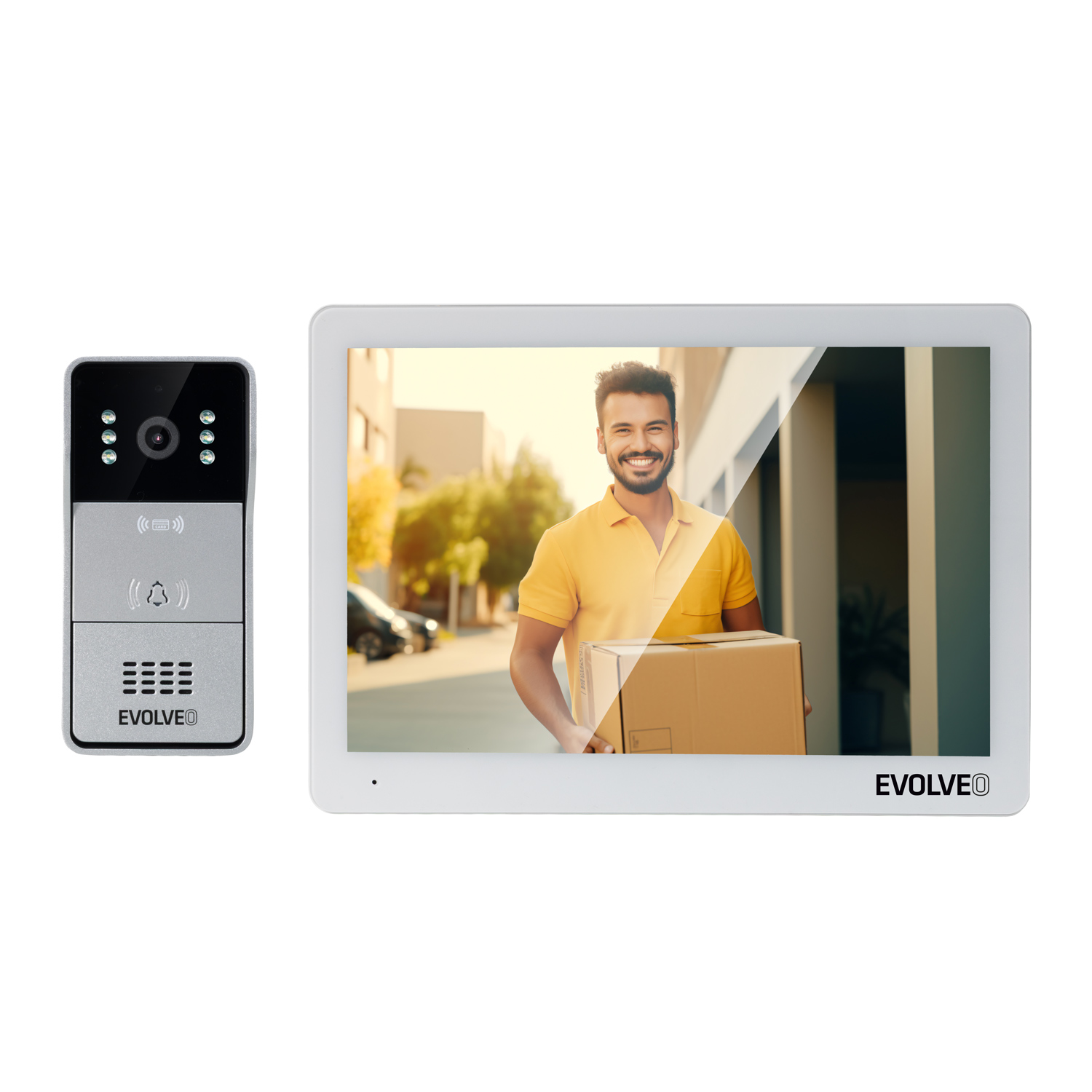

EVOLVEO DoorPhone 10-2W Video Doorbell
Are you looking for a way how to have your home under perfect control? There it is. It is called EVOLVEO DoorPhone 10-2W and it is your new digital guardian. This smart doorbell with a camera allows you to see and hear every visitor even when they are standing behind a closed door – whether you are at home or on the other side of the world. Thanks to the Wi-Fi connection, you can easily check who is at your door from your mobile phone. It is like having your eyes everywhere.
The system can also be connected to an externally powered electromagnetic lock, so you can also unlock and lock it using it.
Eye which never sleeps

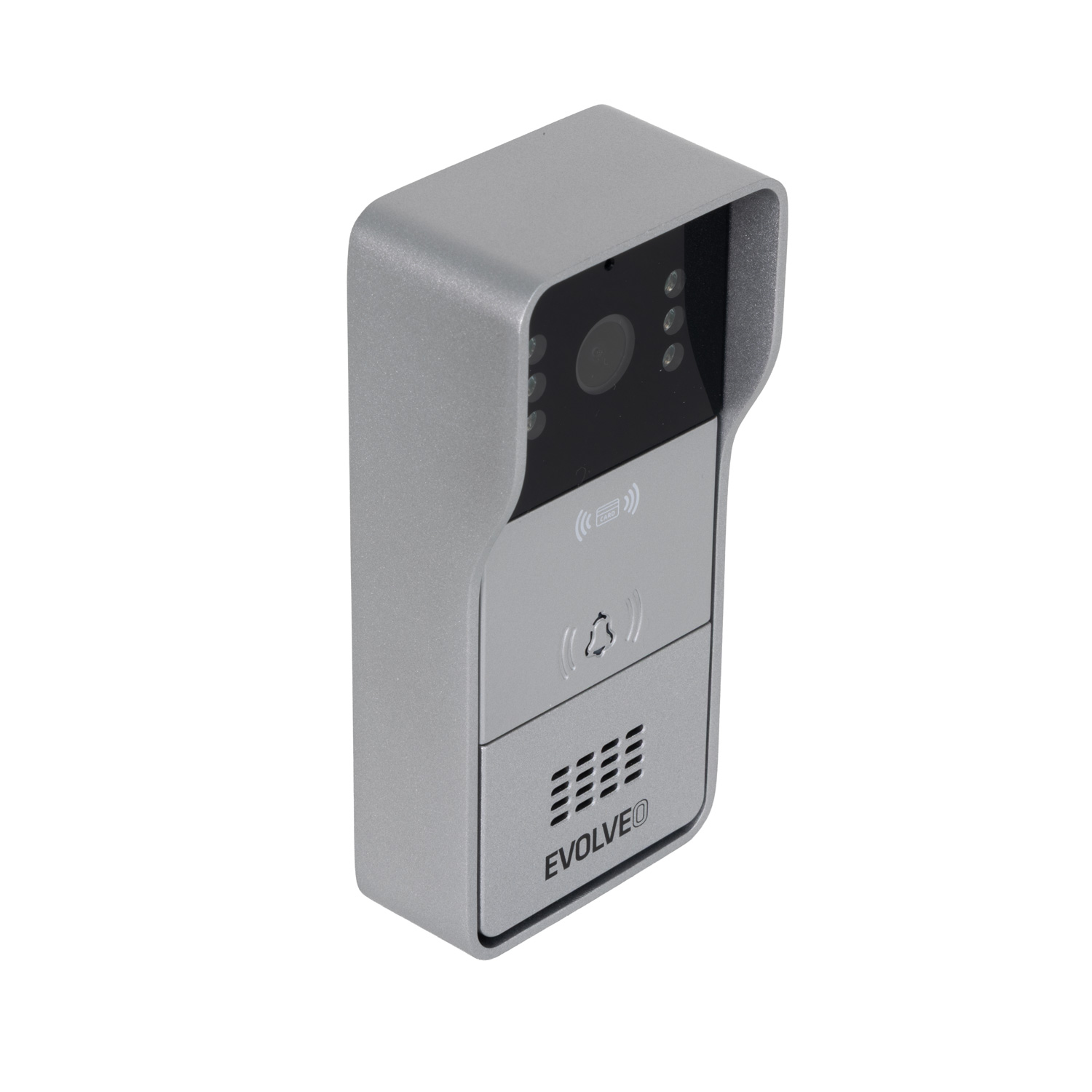

The heart (or rather say the eye) of this system is the outdoor unit with a Full HD camera which captures every detail day and night. Having 1080p resolution and night vision, it provides a crystal-clear image in all lighting conditions. So, it reliably records every arrival, and thanks to its IP65 certified dust and water resistance, it easily withstands even adverse weather conditions.
Touch screen to have everything under control
Another important part of this video doorbell is a 10.1" touch screen monitor with a resolution of 1280 × 800 pixels which is designed to be placed indoors in your home. This display is your window to the world behind the closed door – it will give you a clear and detailed image of incoming visitors without opening it. Thanks to two-way voice communication, you can also talk to incoming visitors comfortably. And the control? Very intuitive! To open the door or start a call, a single touch is enough.
Memory which does not forget
Thanks to the built-in 32GB memory, the EVOLVEO DoorPhone 10-2W video doorbell remembers every visit – even the one you missed. Do you need more space for the photos and videos of your incoming visitors? Just insert a memory card which expands the storage place by up to another 128 GB. Then, you will be able to see who was at your place at any time, which is useful not only for your security, but also when you missed a visit.
Mobile phone-controlled doorbell? Why not!
Thanks to the Wi-Fi connection, you can control your doorbell remotely via the Smart Life or Tuya mobile app. Even when you are not at home, you can see who is at your door, talk to visitors, or even open the door. Moreover, useful notifications on your smartphone will ensure you do not miss any visitors.
RFID: a key to the future and even to your home
No more looking for keys in your pockets! The RFID card reader, which is a part of the outdoor unit of this video doorbell, allows you to unlock your door in a second – easily, quickly and securely. You can store up to 500 unique codes in the reader and that means easy access for all members of your family and other trusted persons. None of them need to use classic keys at arrival. The system can also be connected to two locks at once, so you can conveniently control, e.g., the main entrance of the house and the gate.
Installation? Easy. Use? Joy!
The installation of the EVOLVEO DoorPhone 10-2W video doorbell is extremely simple – you only need two wires without polarity. Once got into the operation, the device works reliably in the temperature range from –10 to +60 °C, so it can serve you well all year long and in various climatic conditions.
Package full of safety and comfort

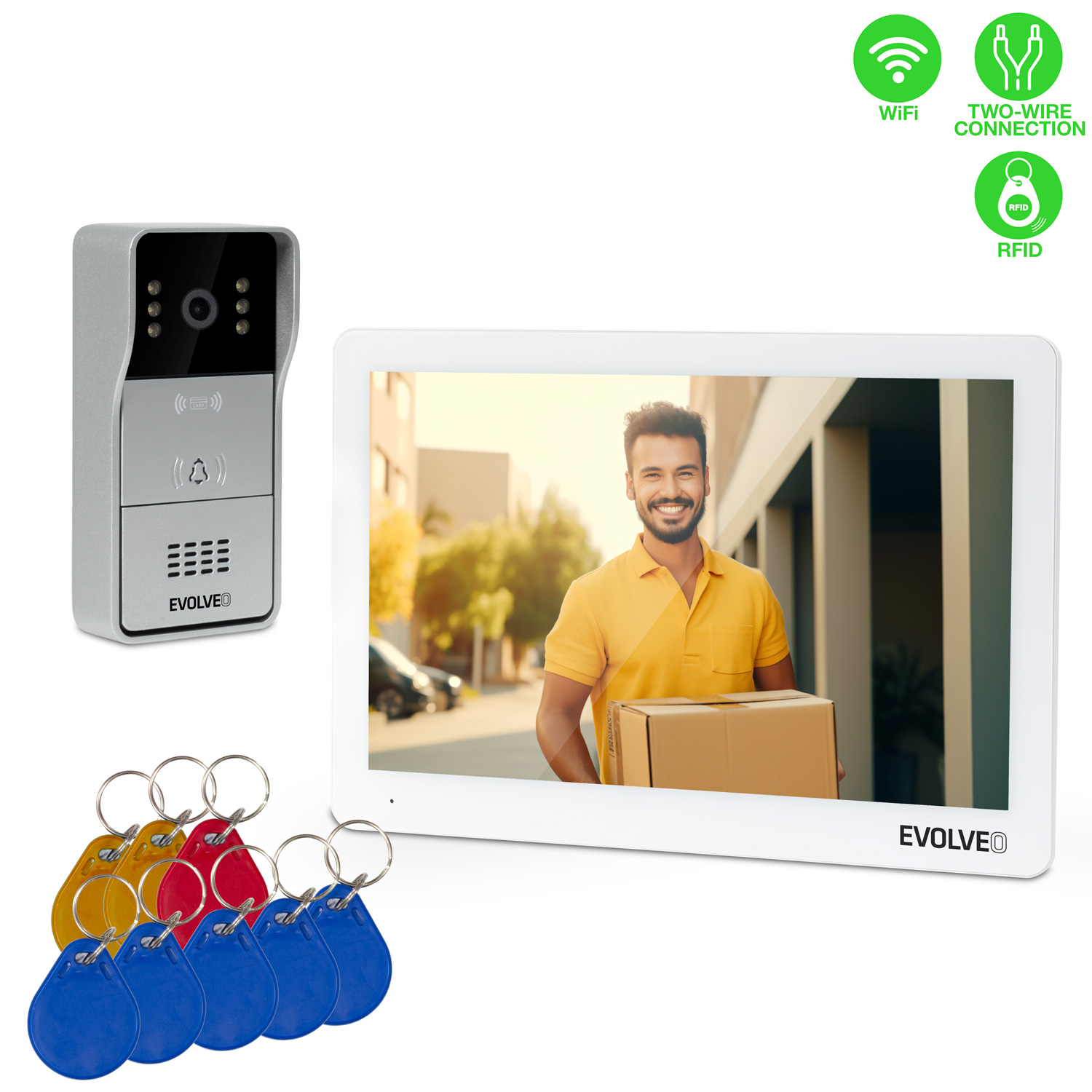

The package contains everything you need: an outdoor unit with a camera and RFID reader, an indoor touch monitor with Wi-Fi, mounting materials, a power adapter, connection cables and a basic set of RFID cards. And of course, an ordered instruction manual. Shortly, you have everything you need to create a modern and secure entry system for your home.
Parameters:
Indoor monitor:
- Display: 10.1" LCD touch screen
- Resolution: 1280 × 800 px
- System: Linux
- Memory: 32 GB
- Connection method: 2 wires without polarity, max. diameter 0.75 mm²
- Function: Video communication, monitoring, door lock control
- Communication method: Two-way voice communication
- Talk time: 60 seconds
- Memory: Support memory cards, Wi-Fi connection
- Maximum memory capacity: 128 GB
- Power supply: DC 18V/1A
- Dimension: 246 x 172 x 26 mm
- Power consumption:
- Standby mode: 1.5 W
- Working mode: 10 W
- Working temperature: -10°C to +60°C
Wi-Fi connection of the monitor:
- Wi-Fi frequency: 2.4 GHz (5 GHz is not supported)
- Standards: IEEE 802.11 b/g/n
- Security: Supports WPA/WPA2 encryption
Wi-Fi functions:
- Each monitor connects separately to Wi-Fi and the application
- Connection to the Smart Life or Tuya application for control from a mobile phone
- Notifications and calls directly to the smartphone
- Option to remotely control the lock via the mobile application
- Option to connect multiple users to one system
- Wi-Fi connection management:
- Option to turn Wi-Fi on/off in the monitor settings
- Wi-Fi password entry with SSID support
Outdoor unit:
- Camera resolution: 2MPx 1080P
- Video stream: H.264
- Communication: Two-way
- Function: Call and communication
- Talk time: 60 seconds
- Waterproof: IP65 (with proper installation with seal)
- Night vision: Yes
- Standby mode: 1W
- Working power: 2W
- Power supply: 18-24V DC
- Working temperature: -10°C to +60°C
- Connection: 2 wires without polarity
- Lock support: Possibility of connecting up to 2 locks, external power supply required for electromagnetic lock
- Dimensions: 133 x 63 x 37 mm
- RFID reader: Yes (with card management option) 500 cards
- RFID Frequency: 125 kHz
- Buttons: 1 button for calling the monitor
- Other unit equipment: Microphone, speaker, infrared illumination for night vision
Package Contents:
- Outdoor unit (with 1080P camera and RFID reader)
- Indoor monitor 10.1" Wi-Fi (touch screen display)
- Mounting frame for monitors
- Fixing screws and dowels
- 18V DC power adapter
- Connection cables with connectors
- Mounting frame for outdoor unit + gasket
- RFID cards (yellow administrator, red for deletion, blue user)
- User´s manual
