EVOLVEO DoorPhone W7, Set of home Wireless videophone with WiFi silver black monitor

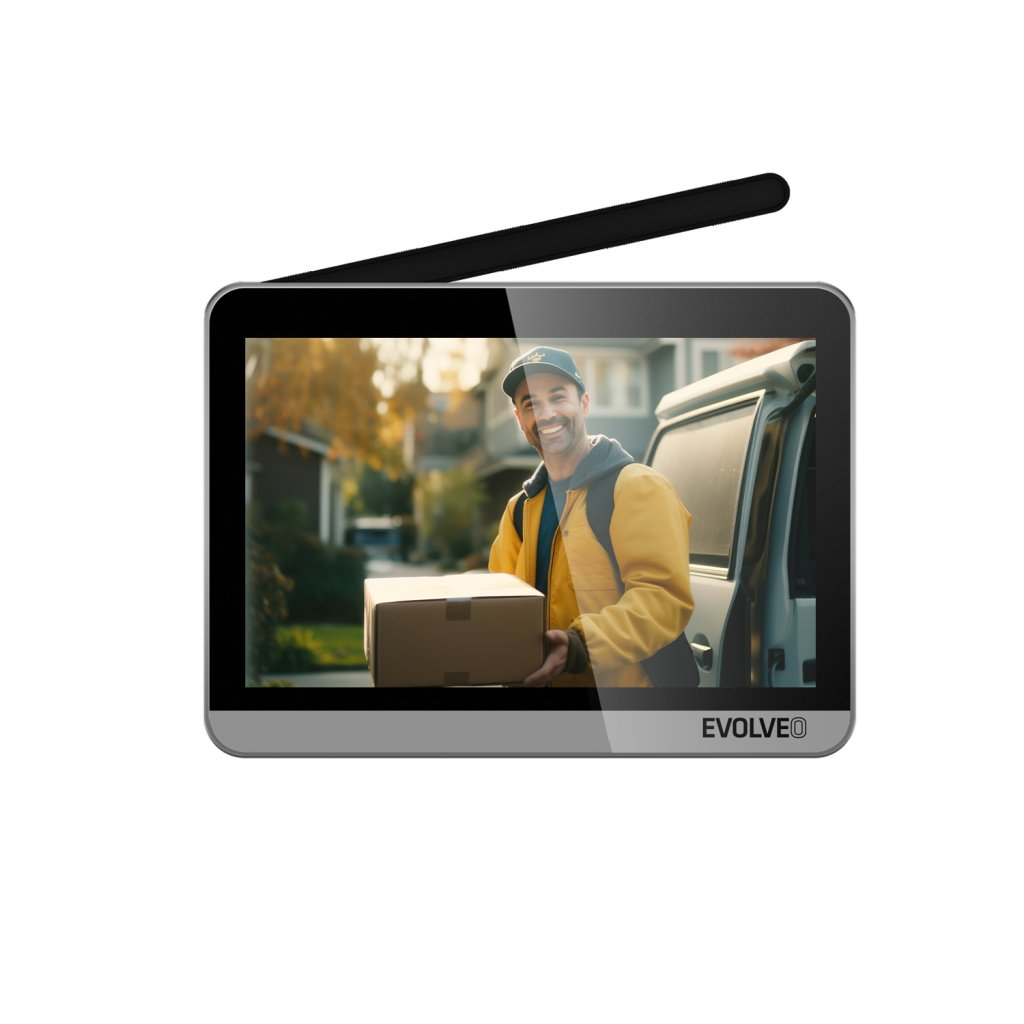

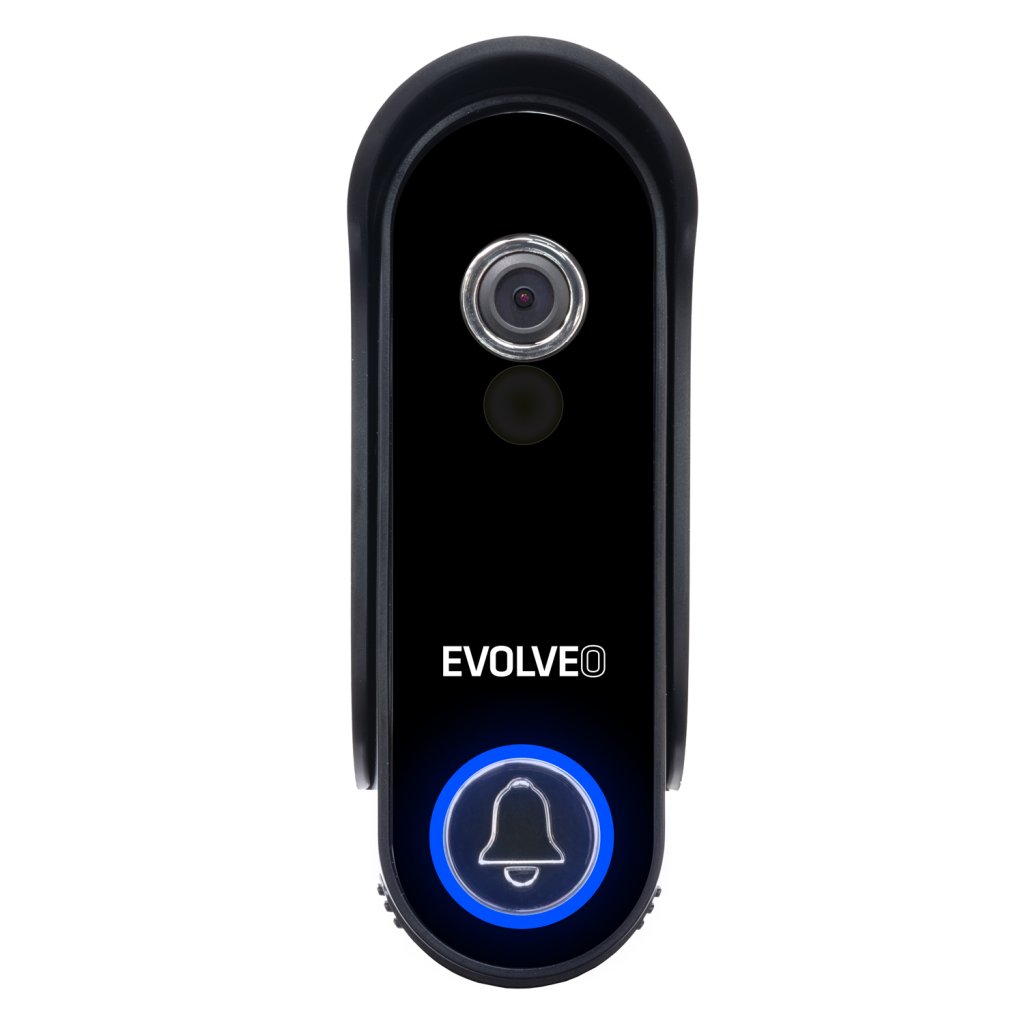

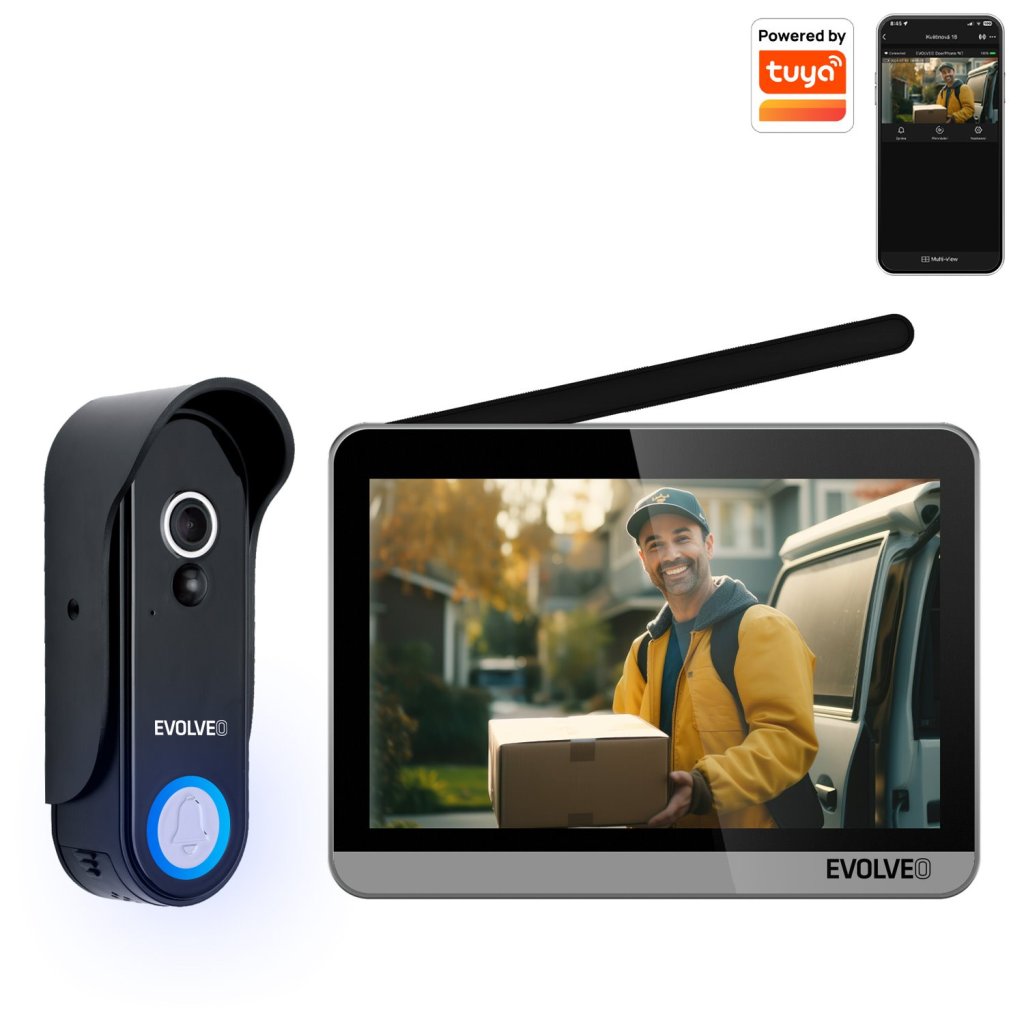

EVOLVEO DoorPhone W7 is a modern wireless home videophone that combines elegant design with practical features. The set includes a 7-inch 1024x600 pixel high-resolution monitor that features a black and silver bezel that easily blends into any interior. An outdoor wireless doorbell with a 1080p camera is connected to the monitor to provide clear images of incoming visitors. This system brings a modern look and security features to your home in one package.

User-friendly and easy to install

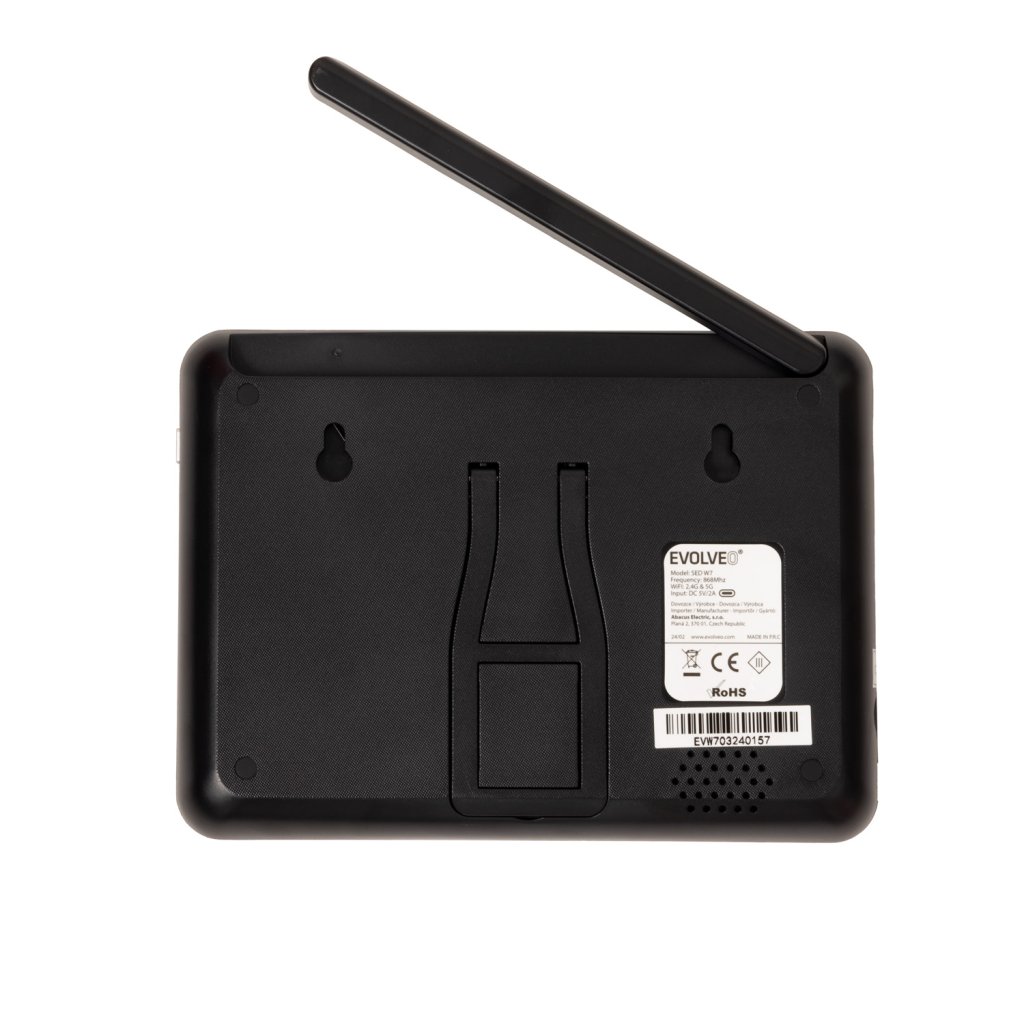

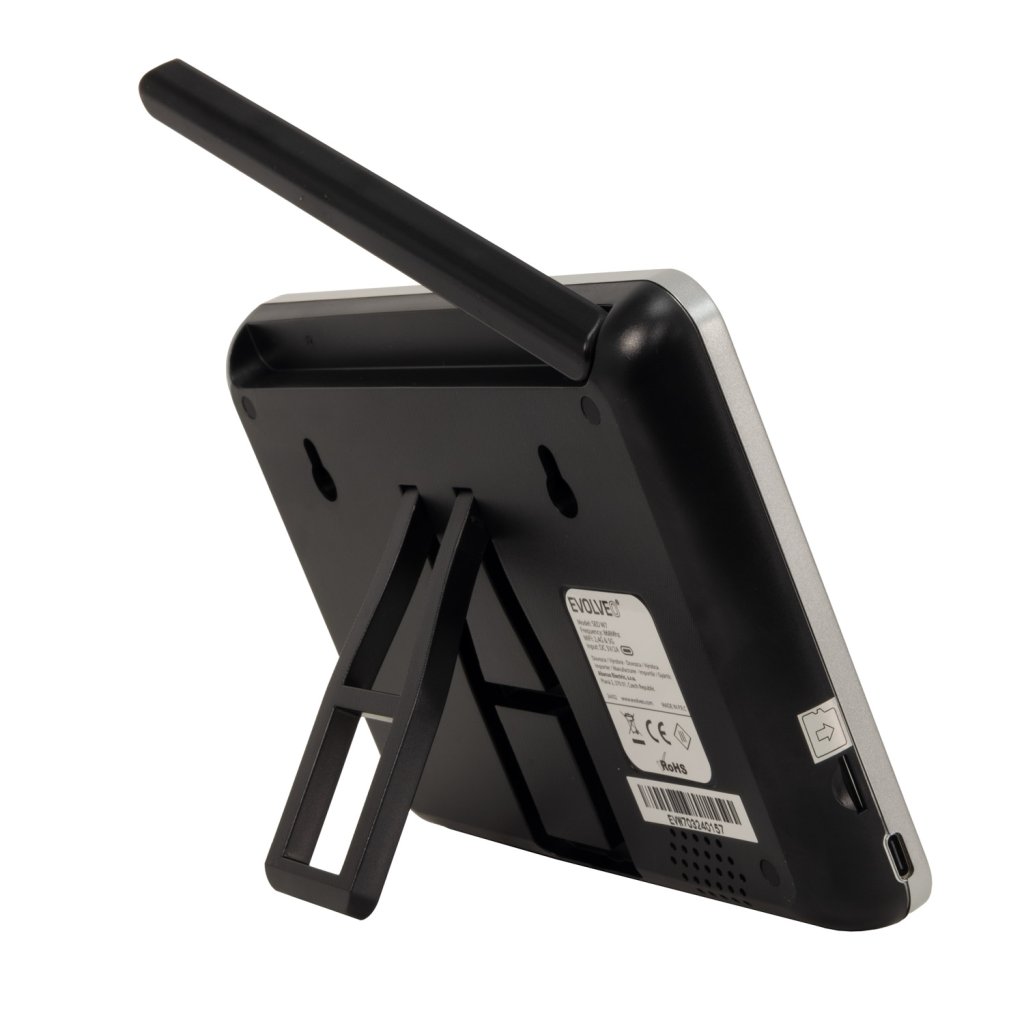

EVOLVEO DoorPhone W7 is user-friendly and simple to install. It does not require complicated wiring, making it easy to place it in various locations around the house where it can be attached using either the included adhesive tape or a set of screws. The system is weatherproof, ensuring its longevity even when exposed to rain or dust. Users can customize various features through the app, such as adjusting the sensitivity of the motion sensor or selecting notification sounds.

Comfortable and safe communication

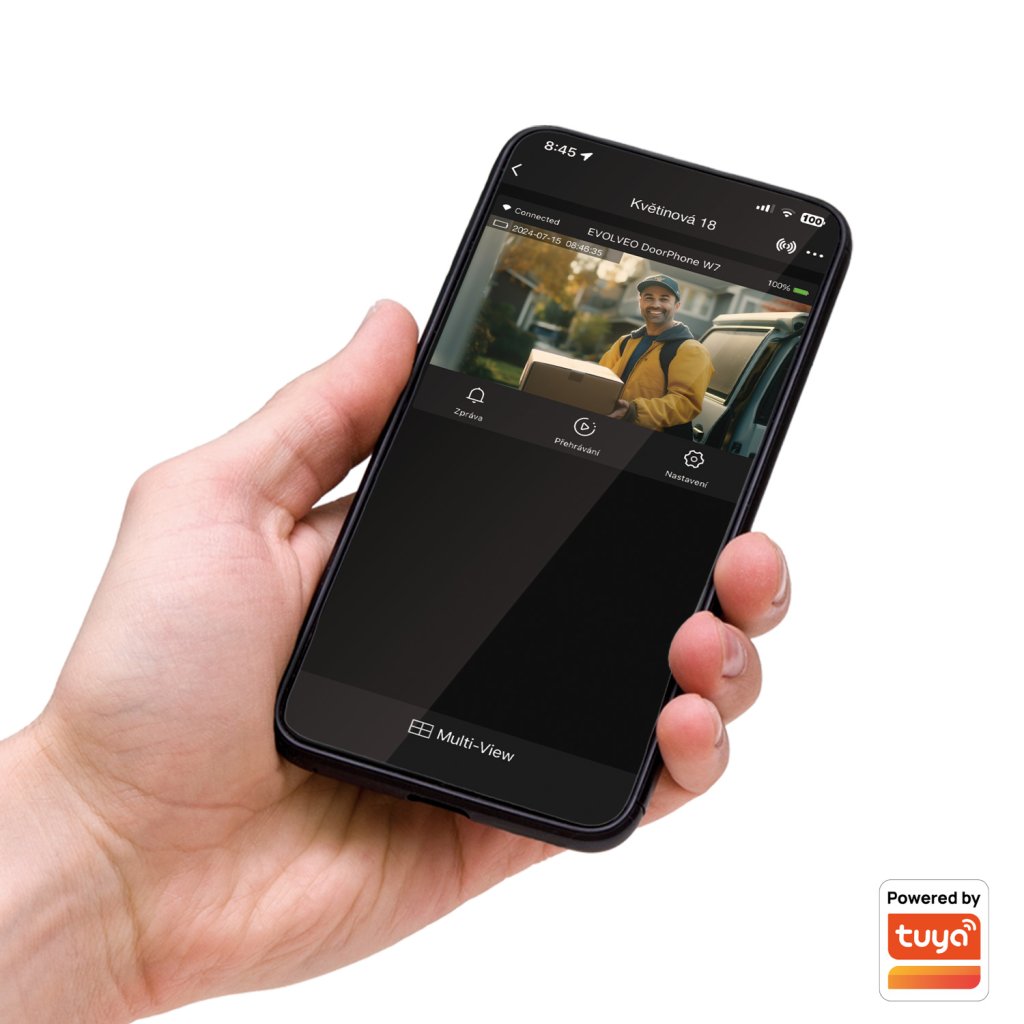

One of the main features of DoorPhone W7 is two-way communication, which allows you to easily communicate with visitors using the built-in microphone and speaker. Thanks to WiFi connectivity, the system can be linked to the Tuya or Smartlife mobile app, allowing remote monitoring and communication. Users can watch live video, receive alerts and open doors directly from their smartphone. *The motion sensor automatically detects movement in front of the camera, increasing security and allowing the footage to be viewed retrospectively.

Powerful hardware

The outdoor camera is equipped with night vision, which ensures a quality image even in low light conditions. The camera has a wide-angle lens, covering a larger area in front of the door. The system supports microSD cards up to 128GB capacity, allowing long-term storage of recordings. The monitor is equipped with a 2000mAh battery that ensures operation in the event of a power outage of the monitor, while the outdoor unit has a 5000mAh battery that allows reliable operation for up to several months, or you can connect the doorbell to a permanent power source.

Ideal for everyday use

In everyday life, DoorPhone W7 provides convenience and security. When someone rings the doorbell, you don't have to open the door right away - you can check who it is on the monitor first and communicate with the visitor if necessary. When you're not at home, the Tuya app lets you answer a call from your phone and see what's happening outside your door. This system is ideal for families, seniors and individuals who want to increase the security of their home.

Parameters:

Monitor

Battery charging voltage: DC5V
Backup battery capacity: 2000mAh
Display size: 7" - 1024 x 600
Operating current: 500mAh
Full duplex intercom: Yes
Automatic video recording: Yes
Video playback: Yes
Screen resolution: 1024x600
Operating temperature: -20 °C ~ 60 °C
Size: 20.1x12.5x1.6cm
WiFi : 802.11n、802.11ac/ 2.400GHz-2.484GHz、 5.15~5.85GHz

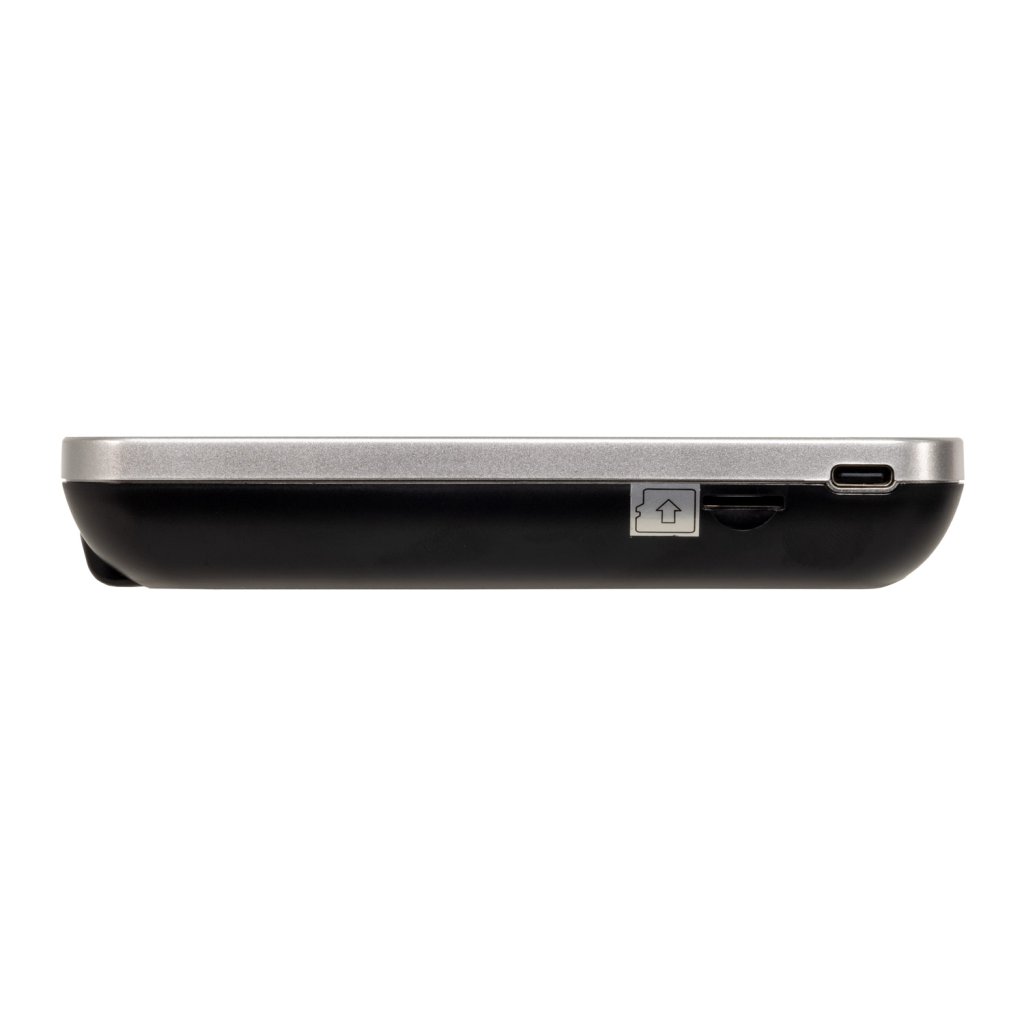

Power Connector: USB-C / Vstup: 5V/2A
Micro SD card: Až 128GB Class 10

Menu in languages: EN,CZ,SK

Application in languages: EN,CZ,SK,HU,RO

Bell

Battery charging voltage: DC 5V

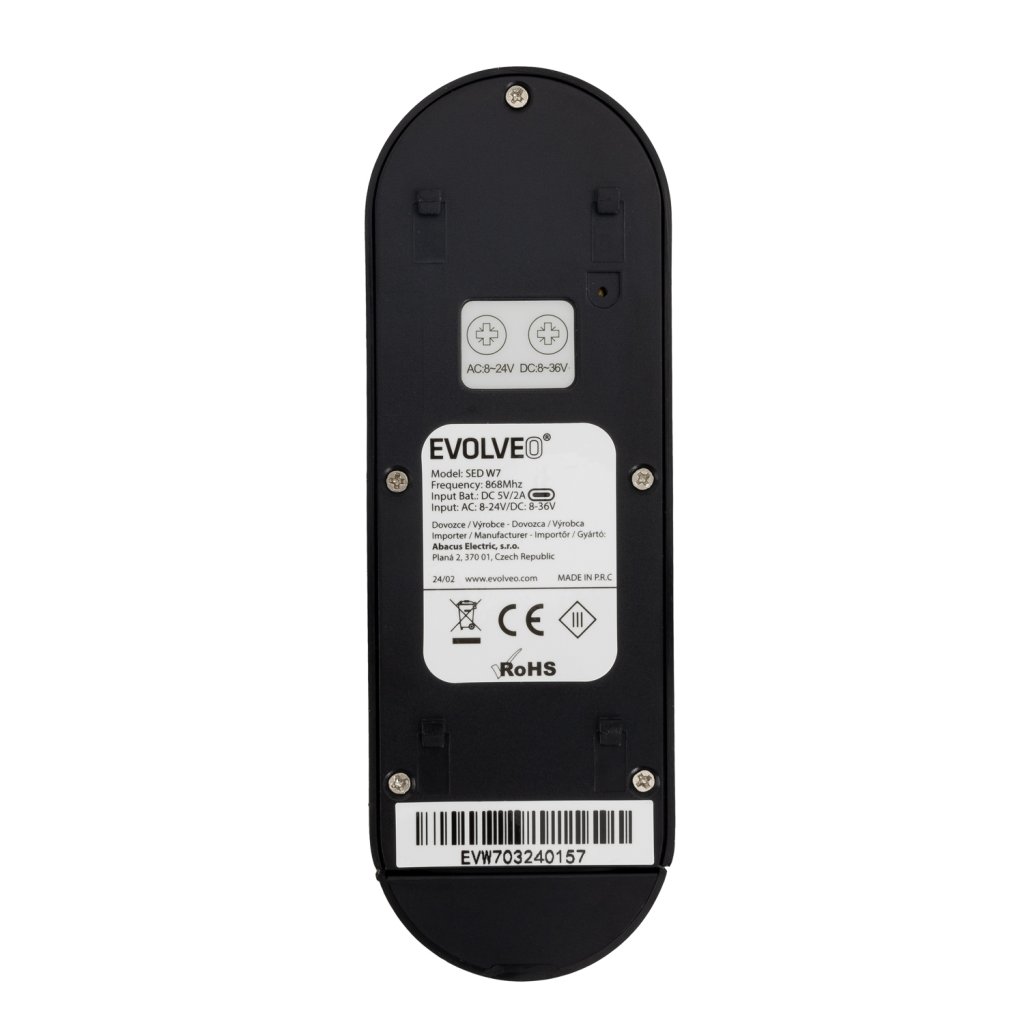

External power supply: DC 8-36V 2/A AC 8-24V/2A
Power consumption: Standby mode: 285uA Working: 240mA
Battery capacity: 5000mAh
Pixel: 1080P
Camera angle: 151°
Night vision light: 850 nm infrared LED
Full duplex: Yes
* PIR motion detection: Yes - significantly increases power consumption - recommended for use with external power supply
Operating temperature: -20 °C ~ 60 °C
Size: 14,4x5,1x3,5cm
Frequency for communication with the monitor: 868MHz
Sensor: 1/3" Color CMOS; 1080*1920Pixel, f2.8mm/F2.8

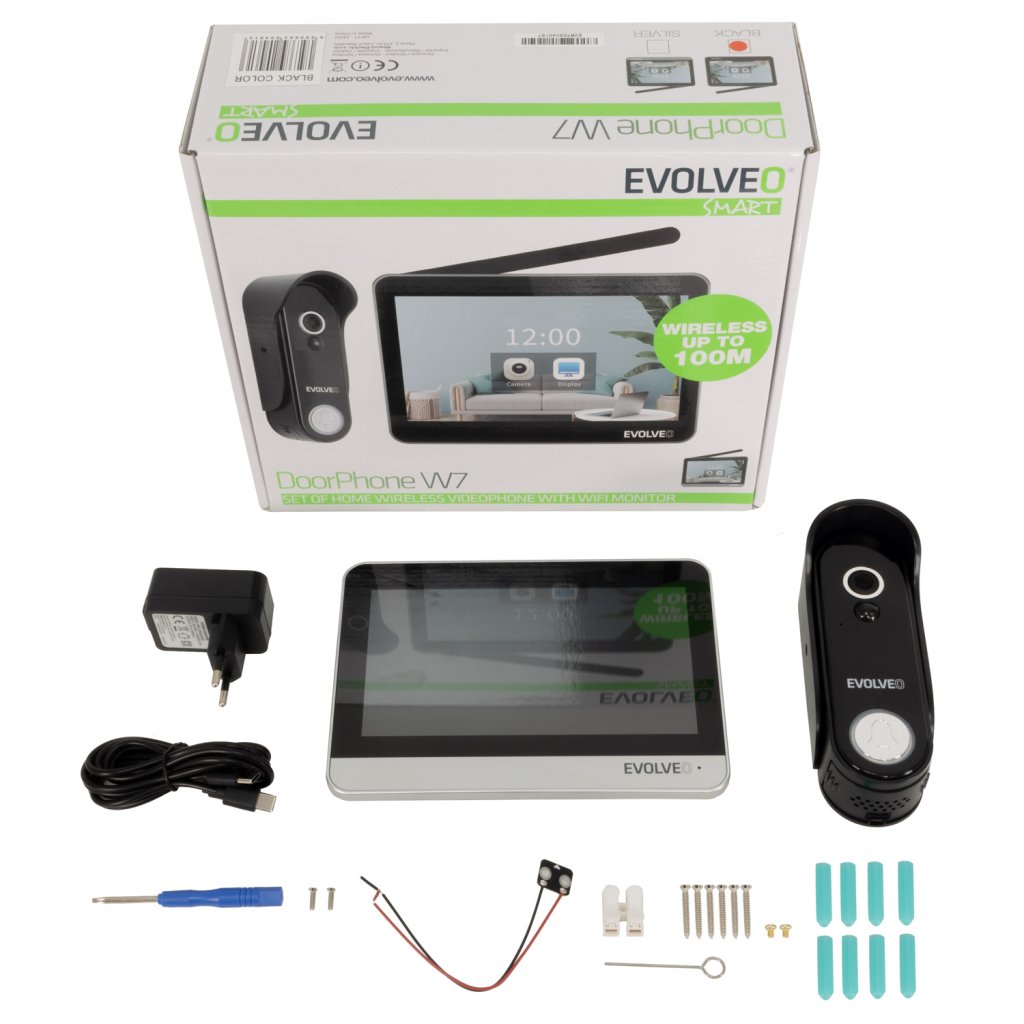

Contents of the Package

• Monitor

• EVOLVEO DoorPhone W7 with integrated battery

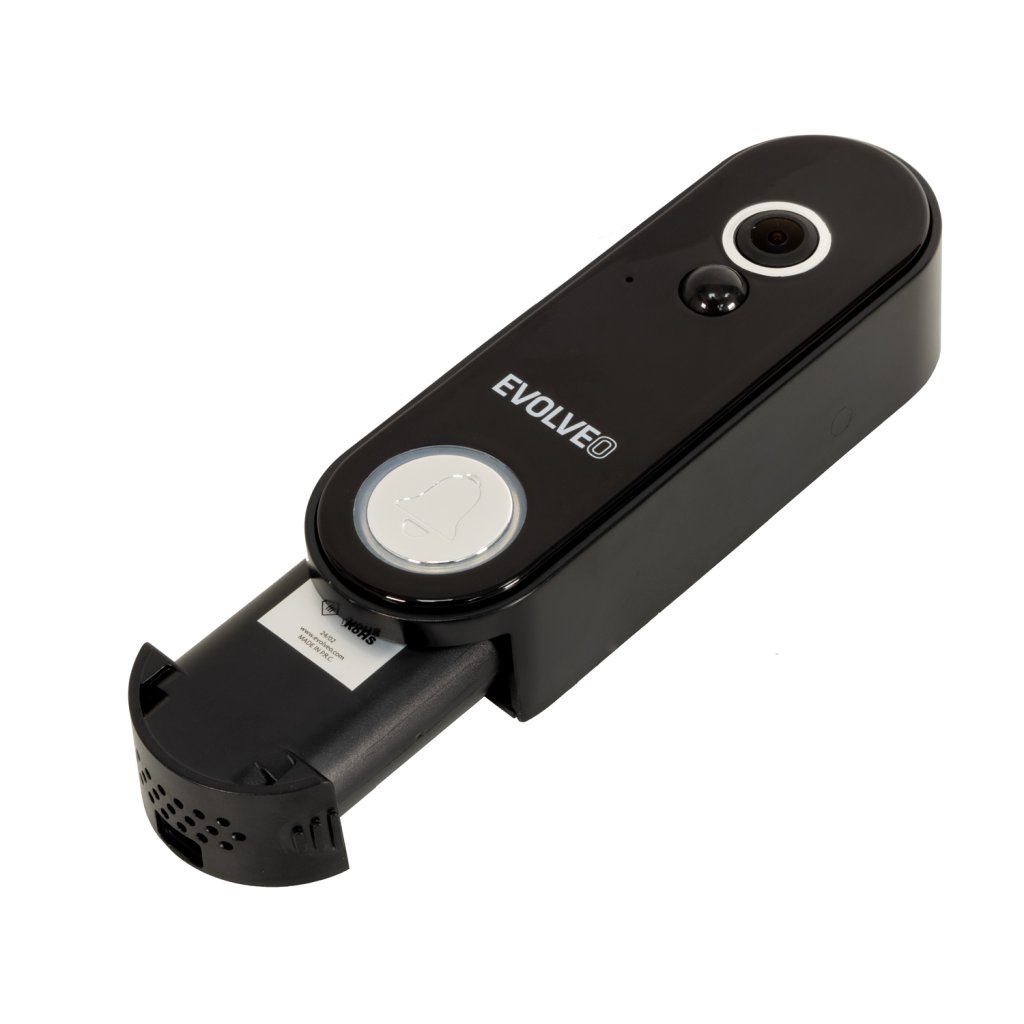

• Bell with replaceable battery
• Power adapter
• USB-C cable with double end
• Connector for external doorbell power supply
• Mounting set
• User Manual
