New among EVOLVEO products is a compact noiseless charging station EVOLVEO PowerCharge 1000. It has a rugged aerospace aluminium body and is easy to carry and operate. With a capacity of 1037 Wh and a total output power of 1000 W, it allows you to charge a wide range of devices such as mobile phones, tablets, cameras, speakers and other devices with USB-A or USB-C input anywhere, anytime. In addition, devices that require AC power (220 V-240 V), such as drones, laptops, TVs, fans, etc., can be connected using AC outlets. The EVOLVEO PowerCharge 1000 is equipped with two 230V sockets, one 12V socket, four USB-A sockets and one USB-C socket.
EVOLVEO PowerCharge 1000 is easy to use. The touch buttons on the front display can be used to easily switch the AC or DC output on and off, and the remaining battery level can also be monitored. The station is equipped with a fan for efficient cooling and also features a sensor to prevent overheating.
There are three ways to charge the station. The station can be charged from the mains, using a solar panel and the last option is charging from the car via a car charger. In all cases, the charging status is shown on the display. A set of charging cables is included.
The EVOLVEO PowerCharge 1000 charging station allows you to always have enough power on hand for a wide range of devices, anywhere, anytime. Traveling, fishing, cottaging, outdoor activities, camping and roadtrips will be more convenient with the PowerCharge 1000 charging station.
In the range of EVOLVEO charging stations there is also a variant of EVOLVEO PowerCharge 500 with half the capacity of 512 Wh.
Technical parameters of EVOLVEO PowerCharge 1000 charging station
- Capacity: 1036.8 Wh (25.6 V, 40.5 Ah)
- Lifepo4 rechargeable battery
- Nominal power input: 1000 W
- Peak power: 2000 W
- Total AC output power: 1000 W
- Robust aerospace aluminium body
- Three possible charging methods:
- 230 V mains (AC 100-240 V, 50/60 Hz, 200 W)
- Solar panels (DC 12-30 V, max. 200 W, MPPT)
- Outlet (DC 12 V)
- 2× AC output ports: 100-230 V, 50/60 Hz
- 7× DC output ports:
- 4× USB-A port (5-20 V, 18 W)
- 1× USB-C (Type-C) port (5-20 V, 18 W PD)
- 1× 5521 (12 V, 5 A)
- 1× CL cigarette port (12 V, 7 A)
- Input port 5521 for charging from solar panels (12 V, 5 A)
- Shared QC 3.0 (18 W) support on USB-A ports
- PD 3.0 (Power Delivery) 18W support on USB-C (Type-C) port
- Maximum Power Point Tracking (MPPT) support for solar charging, tracking the highest panel current and voltage in order to obtain the most optimal battery charging parameters
- Charging time: 6 hours
- Appliance power life: tablet (20 W) - 46 h, drone (60 W) - 15 h, mobile phone (11 W) - 84 h, light bulb (7 W) - 133 h, TV (100 W) - 9 h, car refrigerator (70 W) - 12 h
- Large and clear display with touch sensors to control the station
- Colour display backlight
- Display graphic indicators:
- Indicator for switching on the whole station
- AC port power on/off indicator
- On/Off indicator for DC port power supply
- Battery charge indicator (5 levels)
- Indicator of the station charging in progress
- Sinusoidal AC output waveform indicator
- Overheat indicator
- Simple overload indicator
- Sound signaling of station control
- Colour indication when station capacity reaches below 3%
- Separate power on/off for AC and DC ports

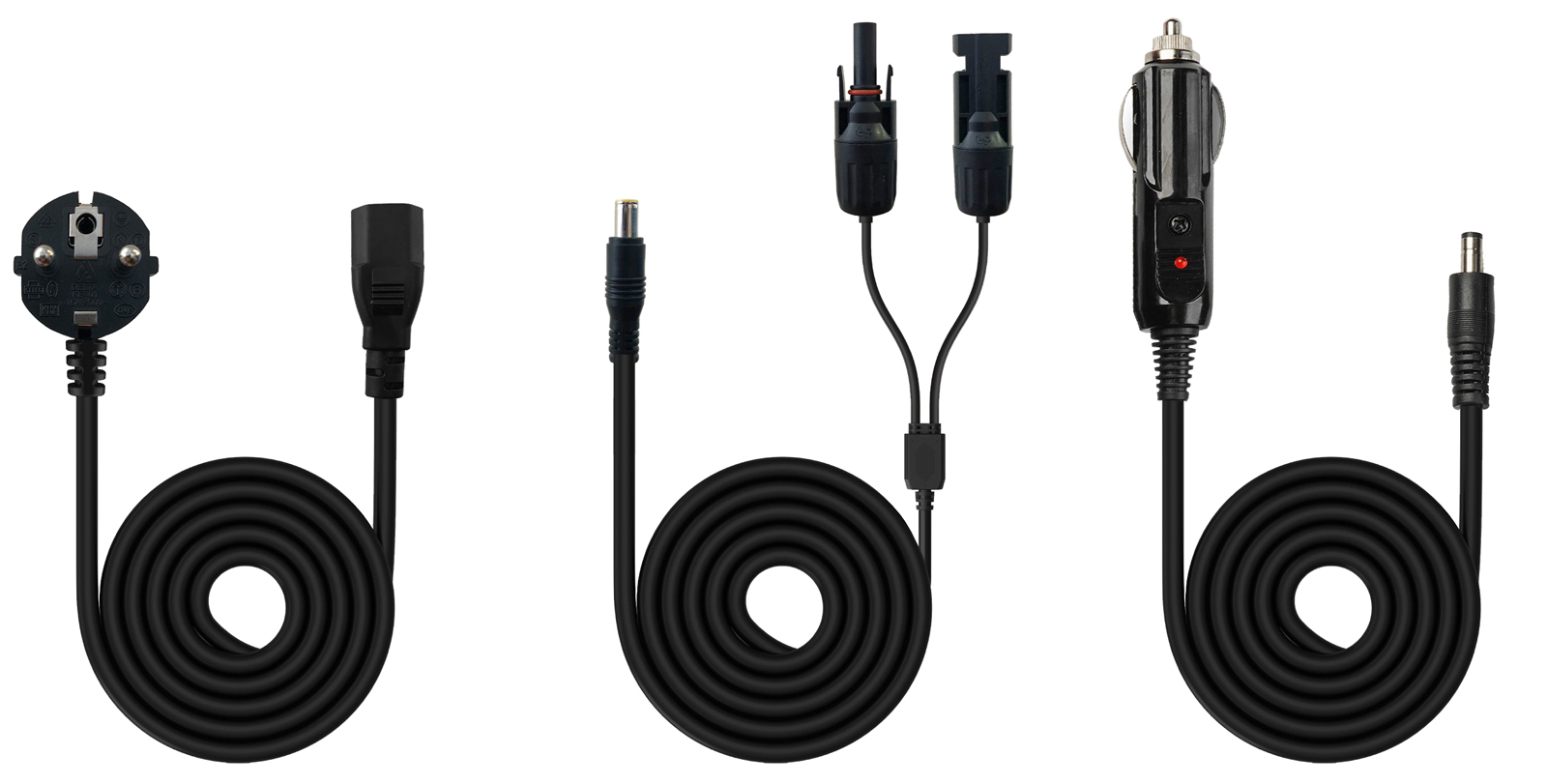

- All cabling is included:
- Power cable to power adapter (length 1.5 m)
- Solar charging cable MC4 (length 1.8 m)
- CL car charging cable (length 1.5 m)
- Inverter AC port waveform: pure sine wave for maximum appliance protection
- High performance and quiet cooling fan
- Automatic fan switching when the internal temperature of the station reaches 35 °C
- Massive handle for easy carrying and transport
- Silent and noiseless operation
- Rubber non-slip feet
- Power adapter parameters:
- AC input 100-240 V, 5-2.5 A, 50/60 Hz
- Dc output 24 V, 10.41 A, 250 W
- AC output: AC 230 V, 4.35 A, 1000 W
- Double security protection:
- Overheating protection (if the internal temperature reaches 85 °C, the power supply to the output ports is stopped and an acoustic alarm is triggered)
- Anti-overload
- Operating temperature range: 0-40 °C
- LVD, EMC, RoHS certification
- Dimensions (w × h × h): 16.5 × 38.5 × 17.3 cm
- Weight: 13.5 kg
Availability and price
The charging station EVOLVEO PowerCharge 1000 is available through a network of online stores and selected retailers for 1 195€ including VAT.
The charging station EVOLVEO PowerCharge 500 is available through a network of online stores and selected retailers for only 765€ including VAT.
