EVOLVEO DoorPhone AP2-2 wired videophone for two apartments with app

Videophone EVOLVEO AP2 is a modern videophone with SMART LIFE application for remote management, Full HD video, a pair of relays for controlling the opening of the entrance gate and entrance gate. Thanks to its simple wiring with only two wires, its installation can be done by anyone. In addition, the monitor is equipped with an internal 32GB memory for recording events in front of the camera, so you will not miss any mailman with a package.

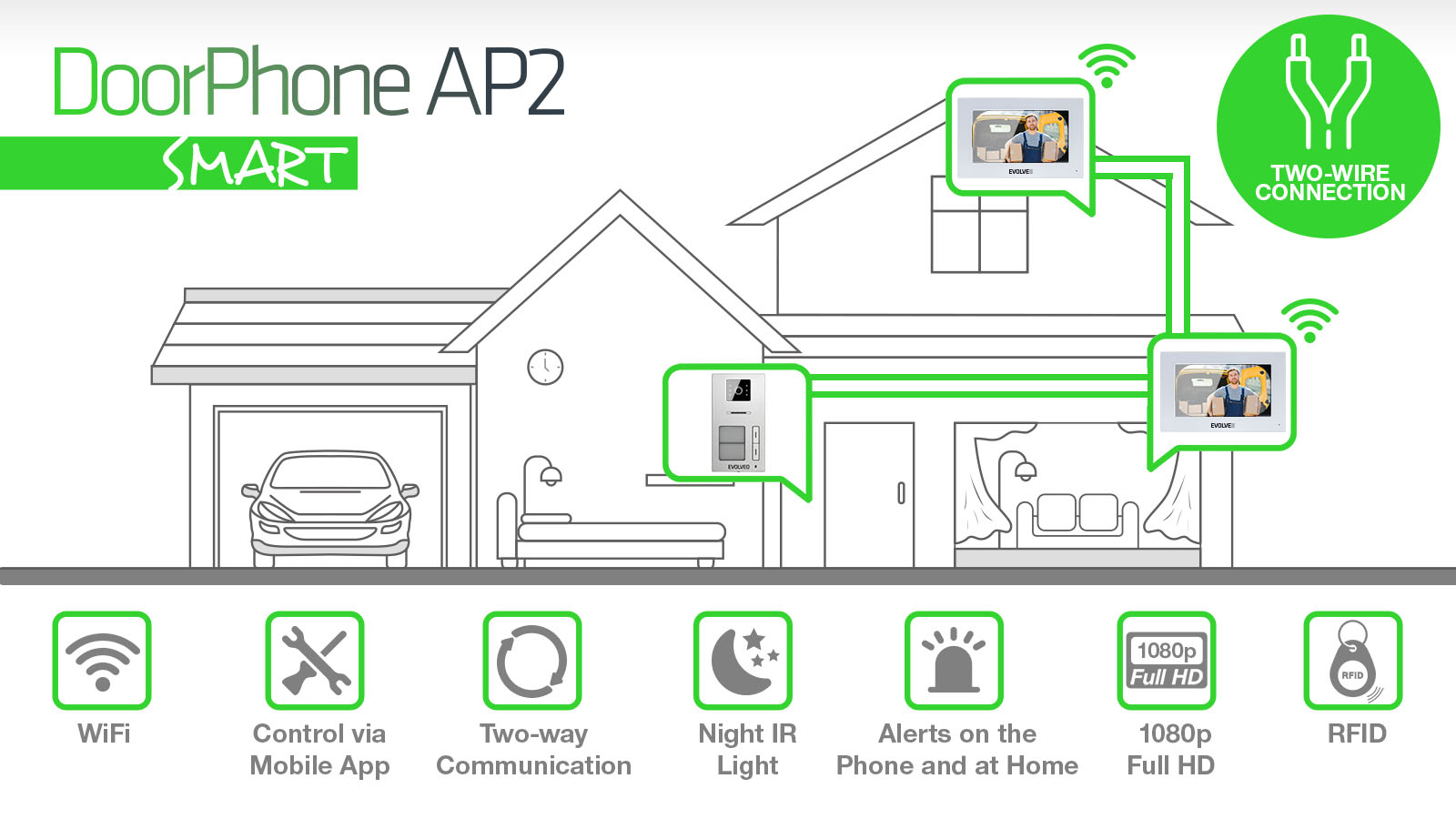

Only two wires are enough.

Installation has never been easier, only two wires are needed to connect the door unit and monitor. The video phone can also be connected to the original doorbell with a two-line cable. In addition, there is no need to watch the polarity of the wires, just use the prepared lever clamps and quickly connect everything. The power adapter plugs into the side of the monitor. Both the door unit and the monitor are designed for mounting on a standard KU68 installation box.

Quality durable design,

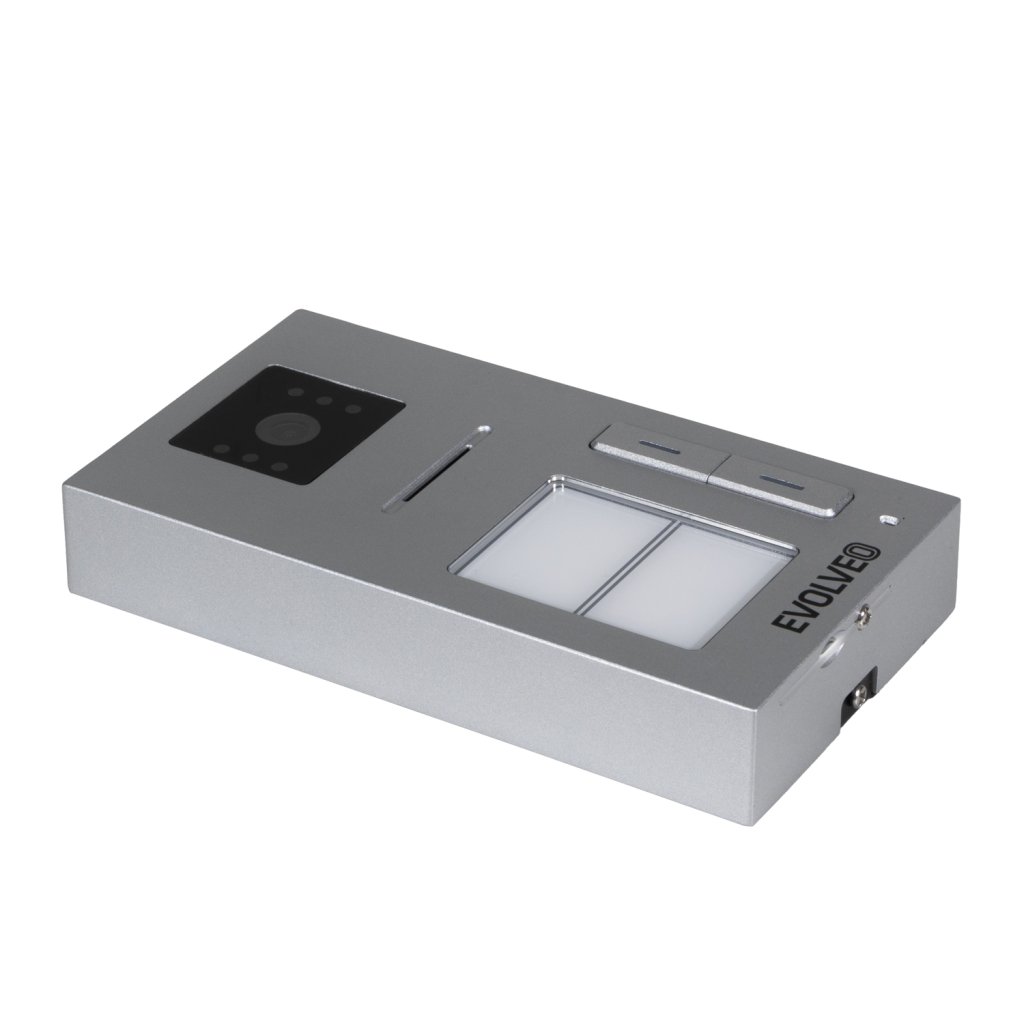

The door - outdoor unit with push button and camera is made of durable aluminium alloy. When properly mounted using the supplied gasket, the device achieves IP65 weather protection. The camera is equipped with night invisible illumination, so you can see who came to visit you at night.

Easy to use

The weather-resistant outdoor panel is equipped with 2 buttons and a camera for guests to call you. When a guest presses the call button on the outdoor station, the monitor rings, at the same time the visitor's image appears on the screen, you decide whether to open the door or not. This amazing feature gives you a complete access control system. At the same time, it is possible to make calls between individual monitors, just press the appropriate button on the monitor and a voice call to the second monitor, which can be located in the other apartment, is started.

Balení obsahuje vše co je potřeba k jednoduché instalaci dva vnitřní monitory, venkovní jednotku s kamerou,  sadu šroubů a hmoždinek, svorky na kabely s páčkou.

Keyless Access

The two-button panel is equipped with an RFID chip reader, which is located between the camera and the buttons, giving you keyless access. When the learned chip is attached, the selected relay is activated and opens the gate or gateway. The individual RFID chips can be easily set up using the included driver.

Main functions of the input panel:

Kamera: CMOS 1/3 sensor, 1.22mm

Image resolution: 1080P

Microphone: Yes - two-way voice communication

Selectable ringtones: yes

Internet connection: WiFi 2.4Ghz monitor

Monitor colour: white

Door panel colour: aluminium

Intercom function: yes (communication between monitors)

Remote Management: yes Smart Life (Tuya platform)

Built-in card/key reader for unlocking entry

Nepolar, two-wire system for simplified installation

Model with 2 buttons

Touchless access control - RFID

Equipped with clamps to add a button to open the gate

Night IR illuminator - night black and white photo

Surface mounting with gasket

Weatherproof - IP65

Large backlit nameplate

2x 5A relays for gate and gate opening

Monitor power supply: 18V DC

Adapter cable length: 120cm

Menu in languages: CZ,SK,EN,HU and RO

Monitor dimensions: 130x200x40, VxŠxH(mm)

Mounting the monitor: using a bracket with spacing on the wiring box KU68

Dimensions of the door unit: 100x138x40 HxWxD(mm)

Panel mounting: using a bracket with 4 screws spacing 45x100mm

Package contains:

2 x 7″ monitor

1 x entrance panel for 2 flats

1 x power supply

1x set of screws and dowels

1x set of cables for connecting units

1x IR controller for RFID reader setup

5 x key fobs (RFID)

1x User Manual
