EVOLVEO Flexi 2, passive outdoor DAB+/DVB-T2 antenna, LTE,4G,5G filter

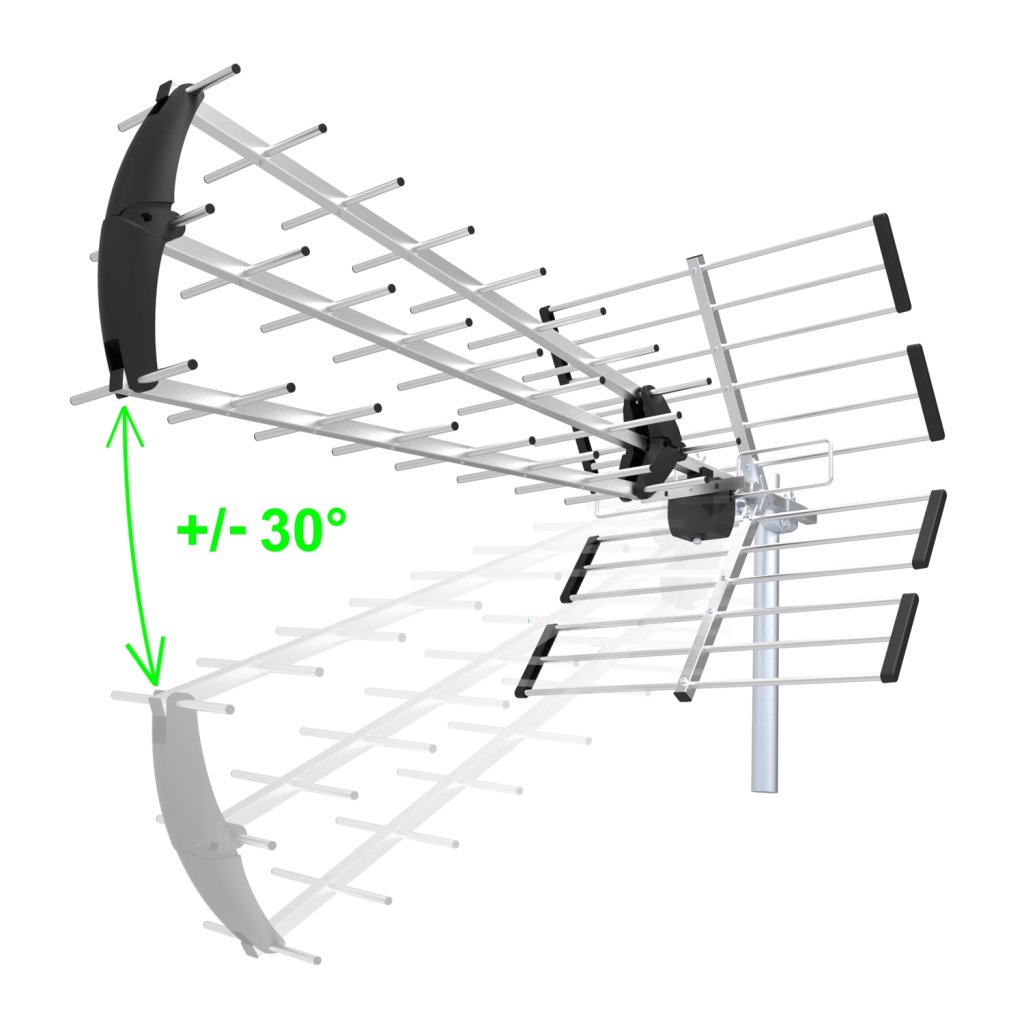

Outdoor passive antenna, for receiving DAB+/DVB-T2, expandable with an amplifier, LTE filter, 4G, 5G. Vertical position adjustment +/- 30° increases the gain of the antenna compared to antennas that do not have this adjustability.
| Category: | Outdoor antennas |
|---|---|
| EAN: | 8595683204347 |
| Obj.kód: | TDE Flexi 2 |
| waranty: | 24 months |
Goods in stock, dispatched within 24 hours
With purchase over €85 (for selected countries)
Need help? We're here for you!
Network of GLS outlets, Packeta group.
Outdoor passive antenna for receiving DAB+/DVB-T2 signal. The possibility of vertical adjustment +/- 30° increases its gain compared to antennas that do not have this adjustability.
LTE/4G/5G filter. Expandable with EVOLVEO AMP 1 amplifier with 5G filter. The amplifier complies with the Radio Equipment Directive 2014/53EU (RED) standard and is therefore safe for human health. The package includes a 10m cable, reduction, and mount for attaching the antenna.
Specifications
- Gain 18dBi
- VHF: 174-230MHz (DAB+)
- UHF: 470-694MHz (DVB-T2)
- Impedance: 75 Ohm
- Number of cross elements on the wave part of the antenna: 27
- Beam width H/V: 38°/42°
- Vertical position: +/- 30°
- Connector: IEC, reduction from IEC to F-connector
- Cable 10 m
- Height: 500 mm, width: 470 mm, length: 1045 mm
- Weight: 1.8kg

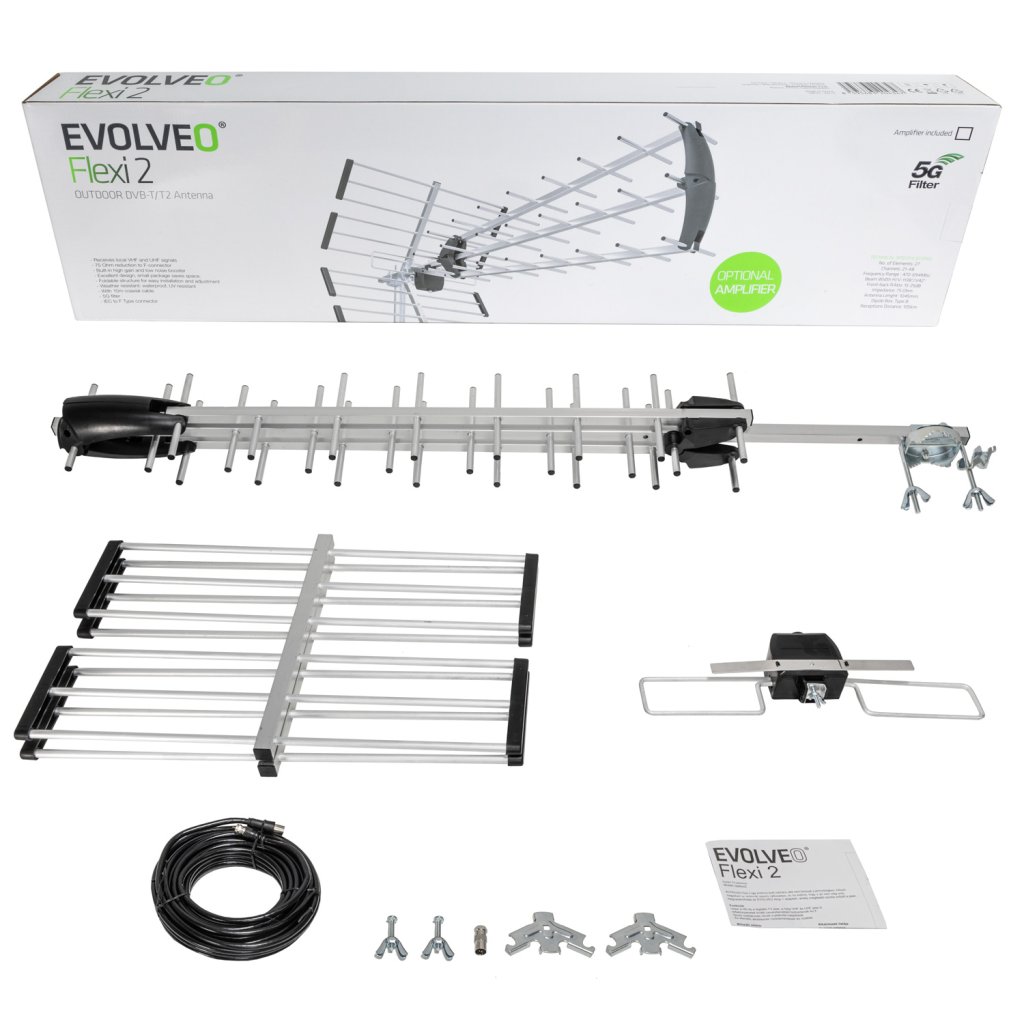

Package contents
- Antenna
- Antenna mount

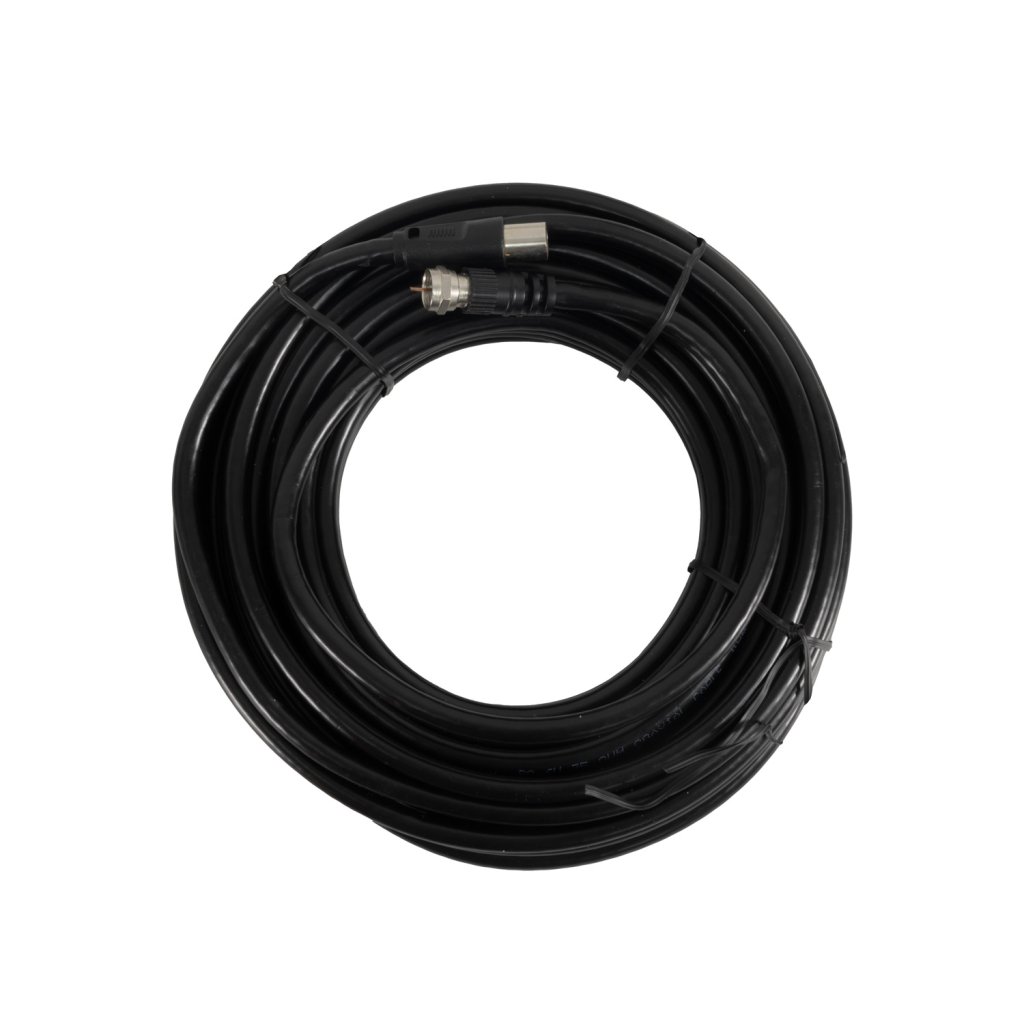

- Cable 10m, IEC connector

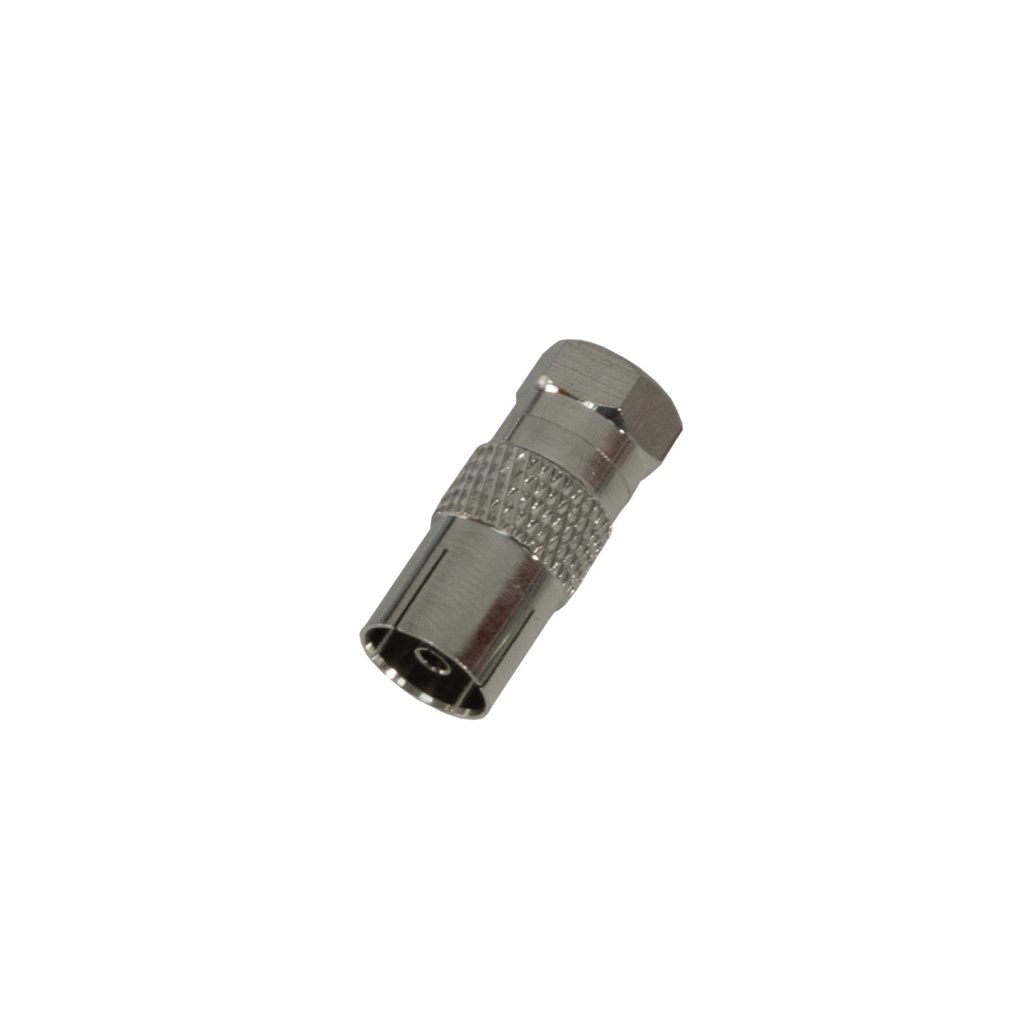

- Reduction from IEC to F connector (for set-top box)
- Manual
Packaging
- Packaging dimensions: 290 x 100 x 1150 mm
- Product weight with packaging: 2.1 kg
