EVOLVEO G1000 PCIe 5.0, 1000W, ATX 3.0, 80+ GOLD, 90% efficiency, aPFC, 140mm fan, retail

The EVOLVEO G1000 is the ideal choice for a gaming PC that has a graphics card with PCIe 5.0.  It stands out especially for its efficiency with the 80 PLUS GOLD certification guaranteeing efficiency up to 90%. The power supply is fully modular, for this reason only the most necessary cables can be connected. A quiet 140mm fan is also included. Due to the size of the output, this power supply does not have semi-passive cooling. The power supply fan is always running and its speed is regulated depending on the cooling demand.

Certification 80 PLUS GOLD

The EVOLVEO G1000 is 80 PLUS GOLD certified. This certification guarantees high efficiency under different power supply load styles. When the power supply is loaded to half, the guaranteed efficiency is 90%. At high or low load the efficiency of the power supply decreases. Therefore, the efficiency is 87% at 20% or full 100% load of the power supply. Of course, there are also protections against damage to the power supply or components in the PC. Protection against short circuit, overload, overvoltage, undervoltage and thermal protection are integral parts of the system.

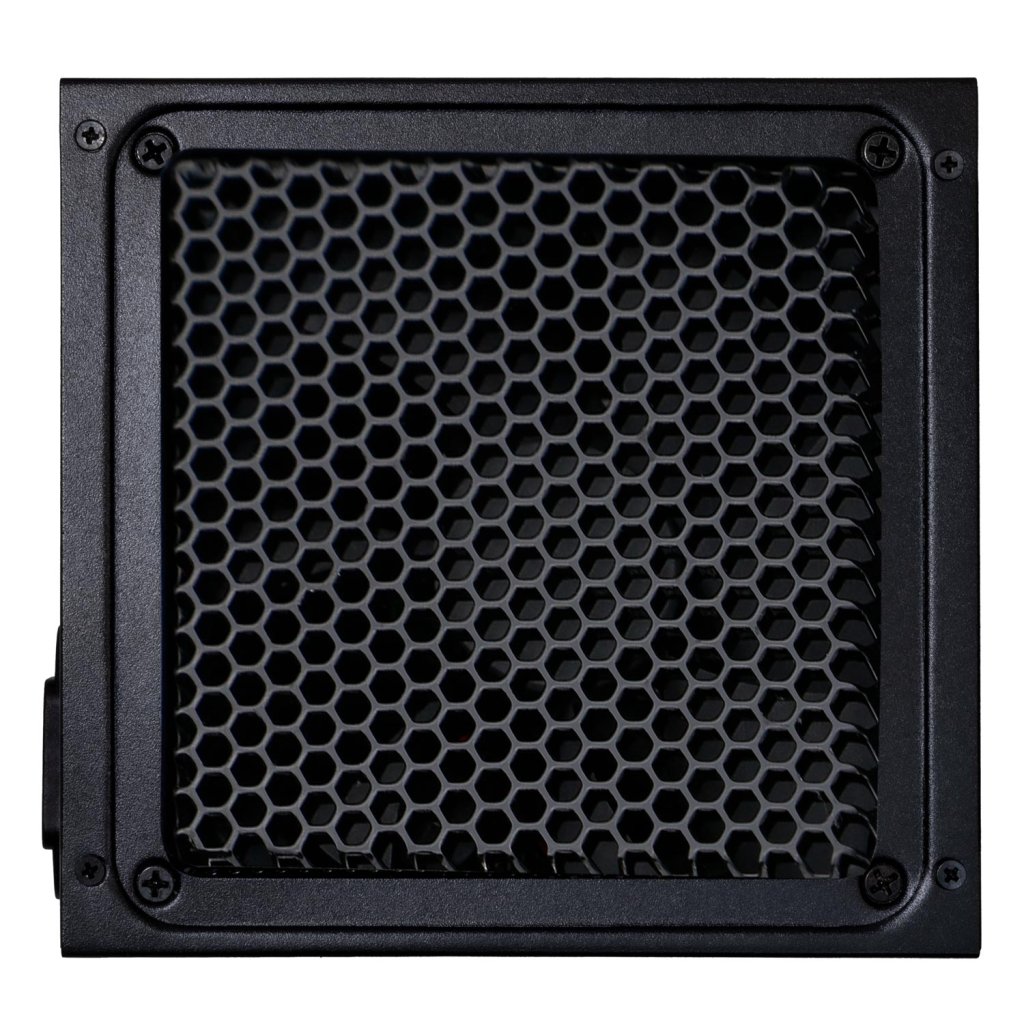

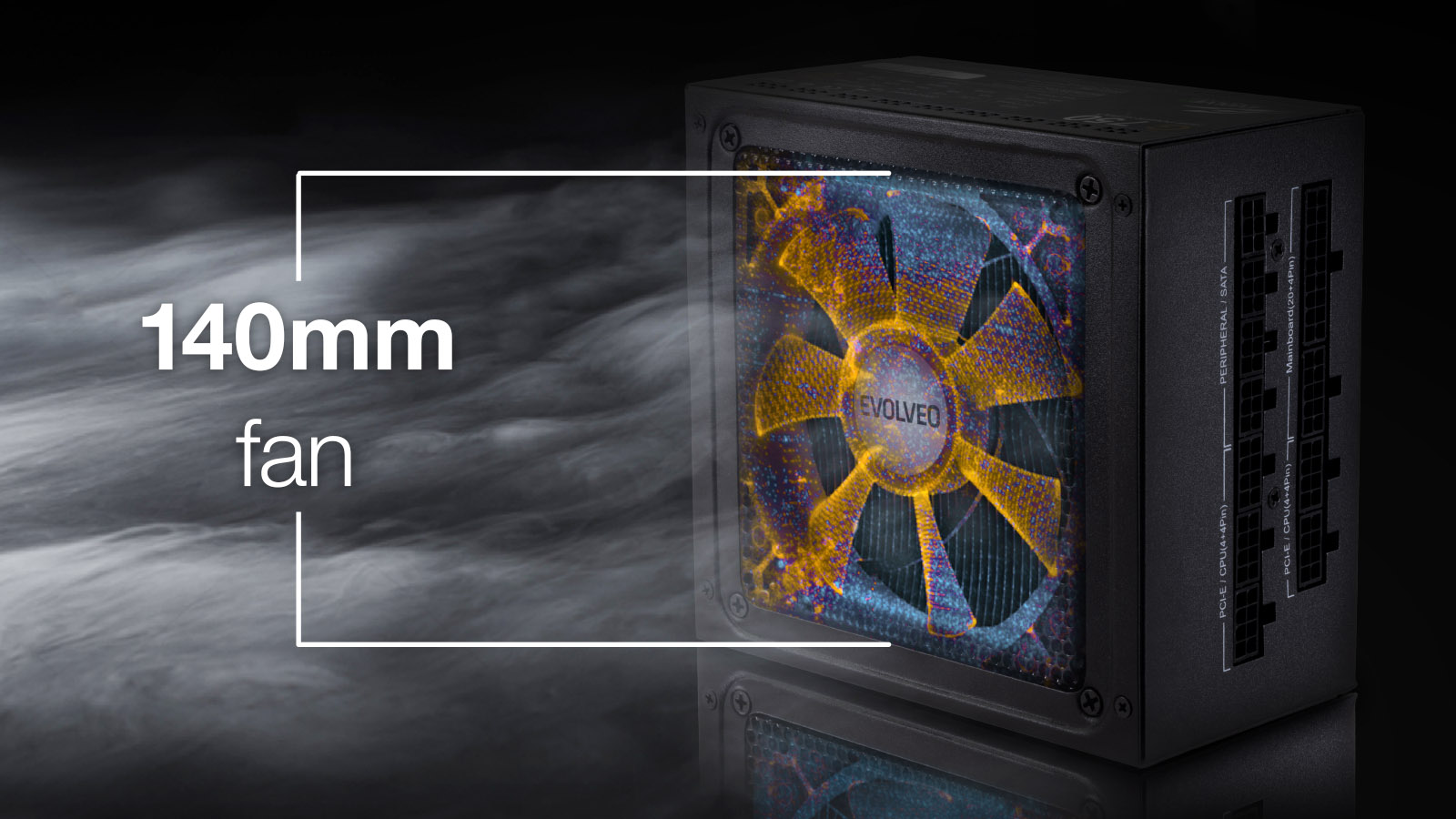

Silent cooling with 140mm fan

EVOLVEO G1000 is equipped with 140mm fan, which can effectively cool the power supply. The speed regulation is controlled by the power supply itself according to the need and thus helps quiet operation and increases the lifetime of the fan itself, due to lower wear and tear.

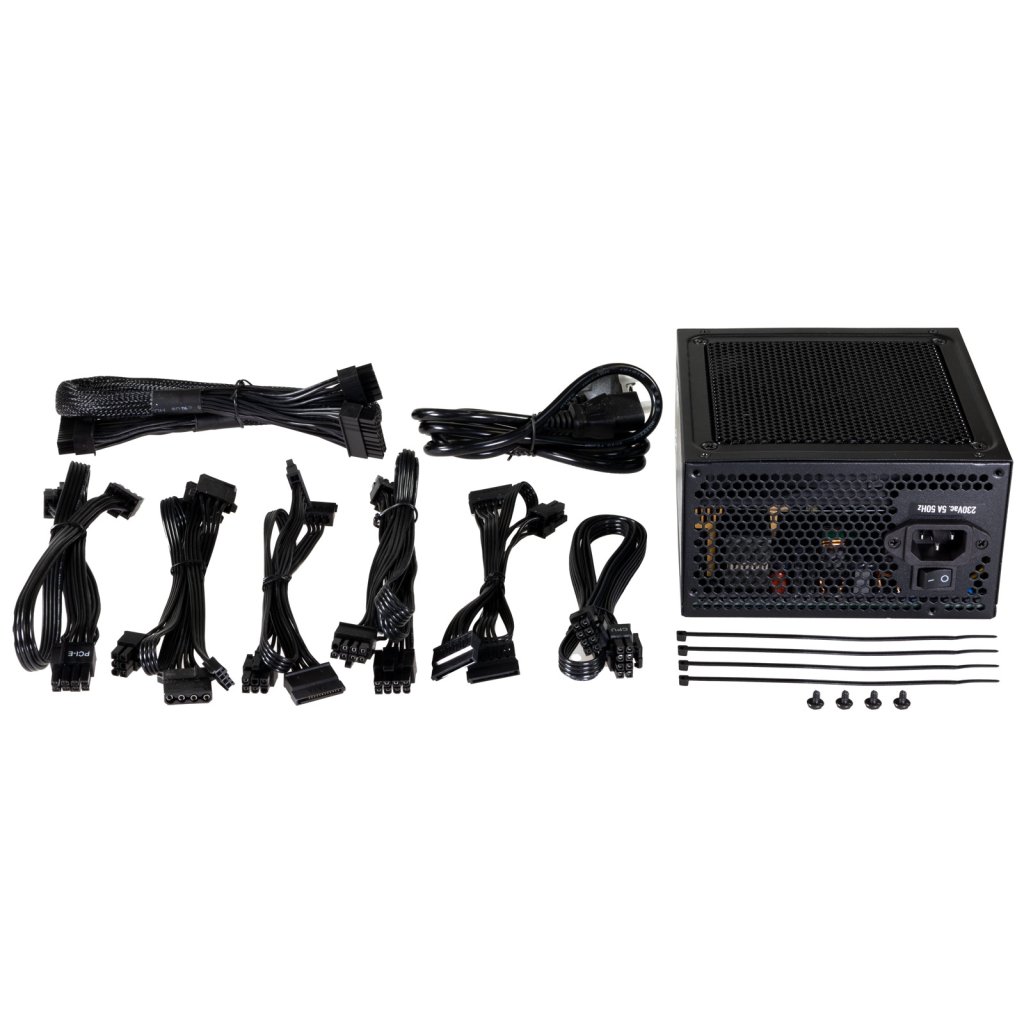

Modular cabling

Complete modularity of the power supply means you don't have to keep any cables in the case that you're not currently using.The result is much better internal organization and incomparably more efficient cooling. Sufficient cables are available to cover most of your component power requirements.

Specifications

- quiet 14cm fan with speed control
- active PFC
- 80+ GOLD certification
- efficiency: 90%
- Color: matte black
- Efficiency of at least 87%/90%/87% at 20%/50%/100% load
- Short circuit, overload, overvoltage, undervoltage and thermal protection

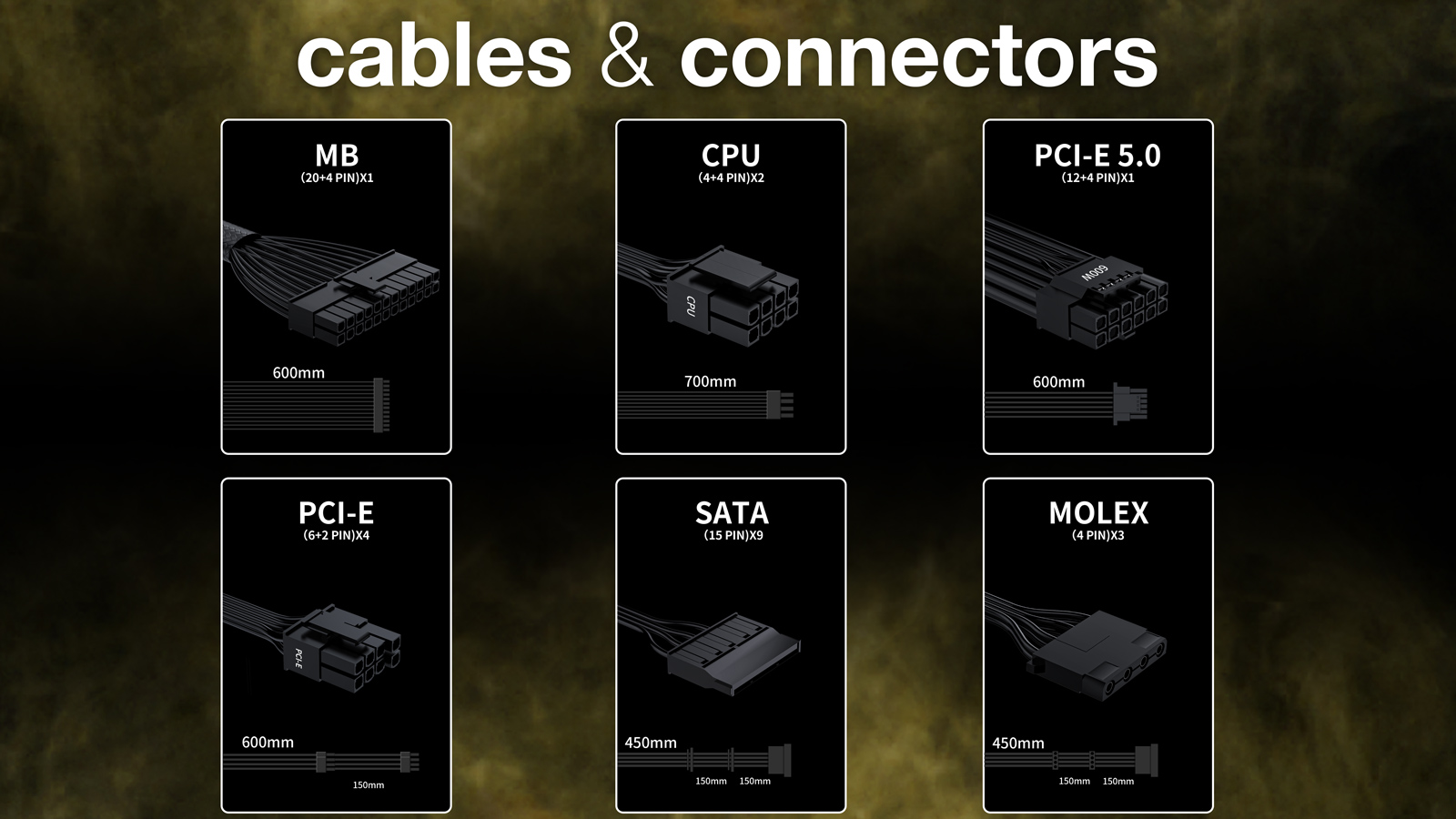

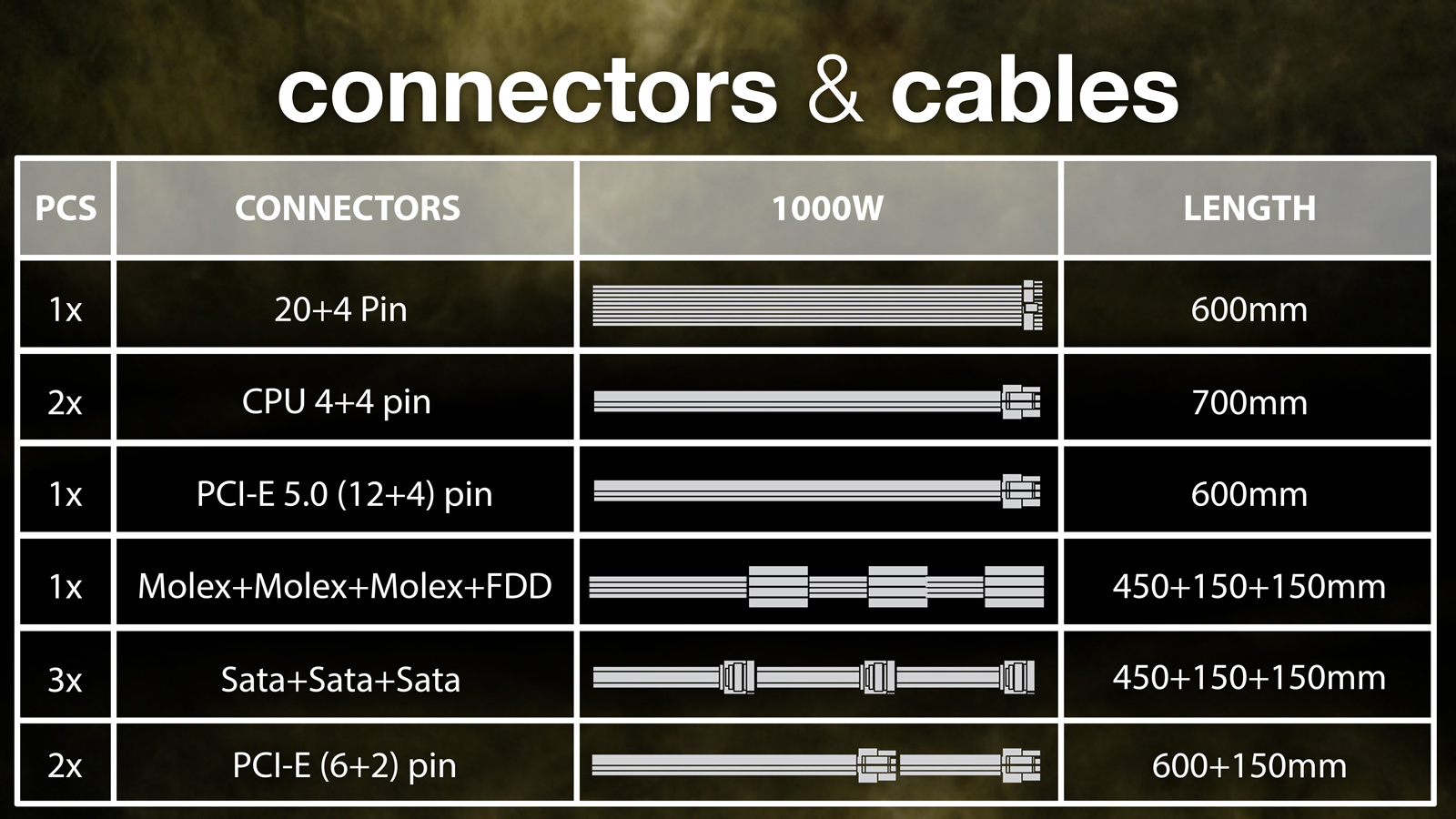

Cabling

1 x 20+4 Pin (600mm)
2 x CPU 4+4 pin (700mm)
1 x PCI-E 5.0 (12+4) pin (600mm)
3 x Molex+Molex+FDD(450+150+150mm)
9 x Sata+Sata+Sata (450+150+150mm)
4 x PCI-E (6+2) +(6+2)pin (600+150mm)
