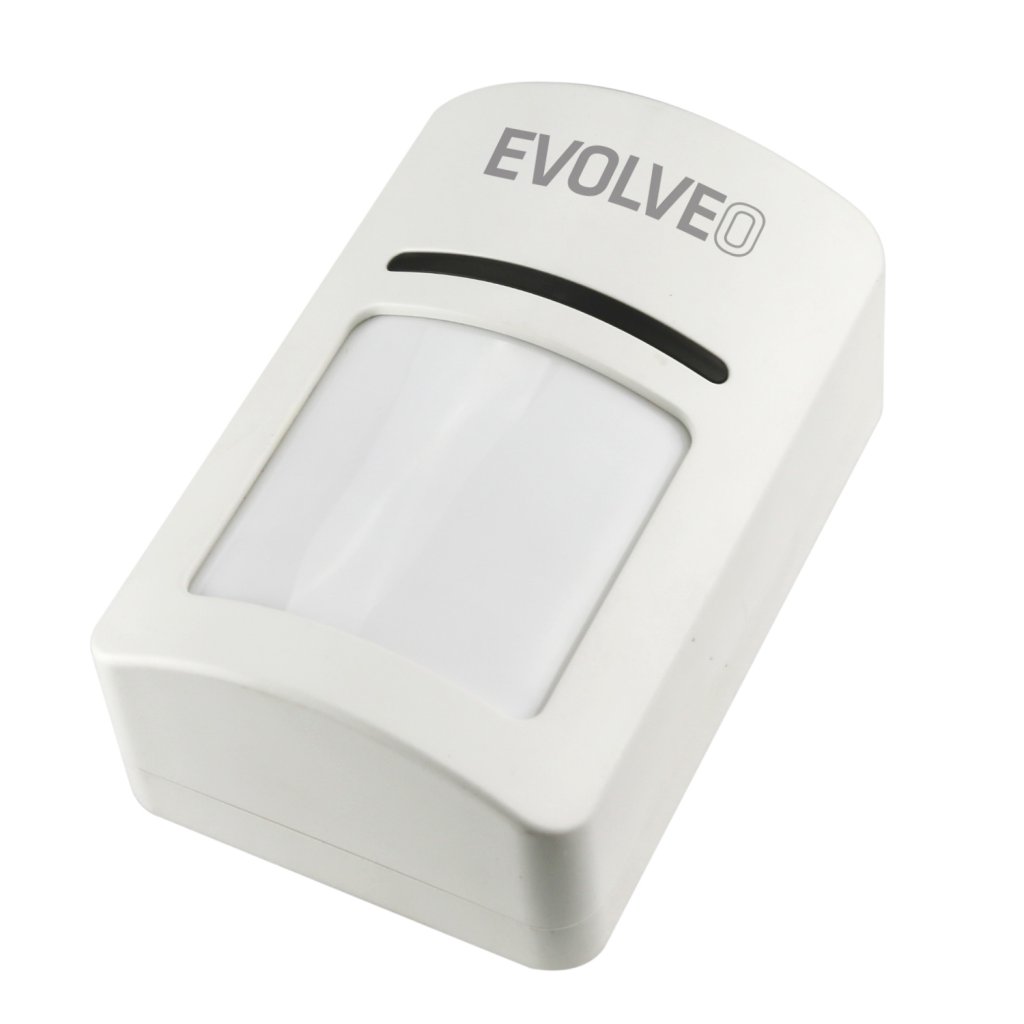

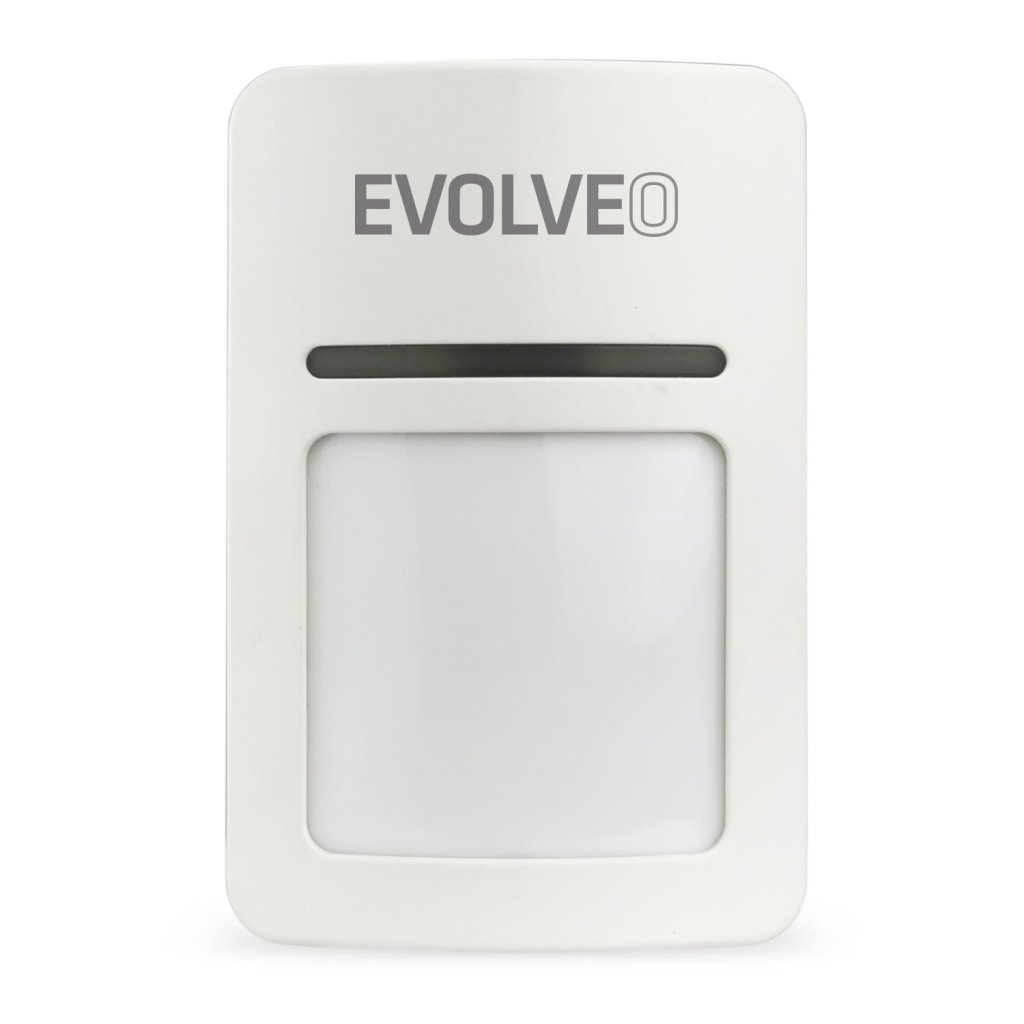

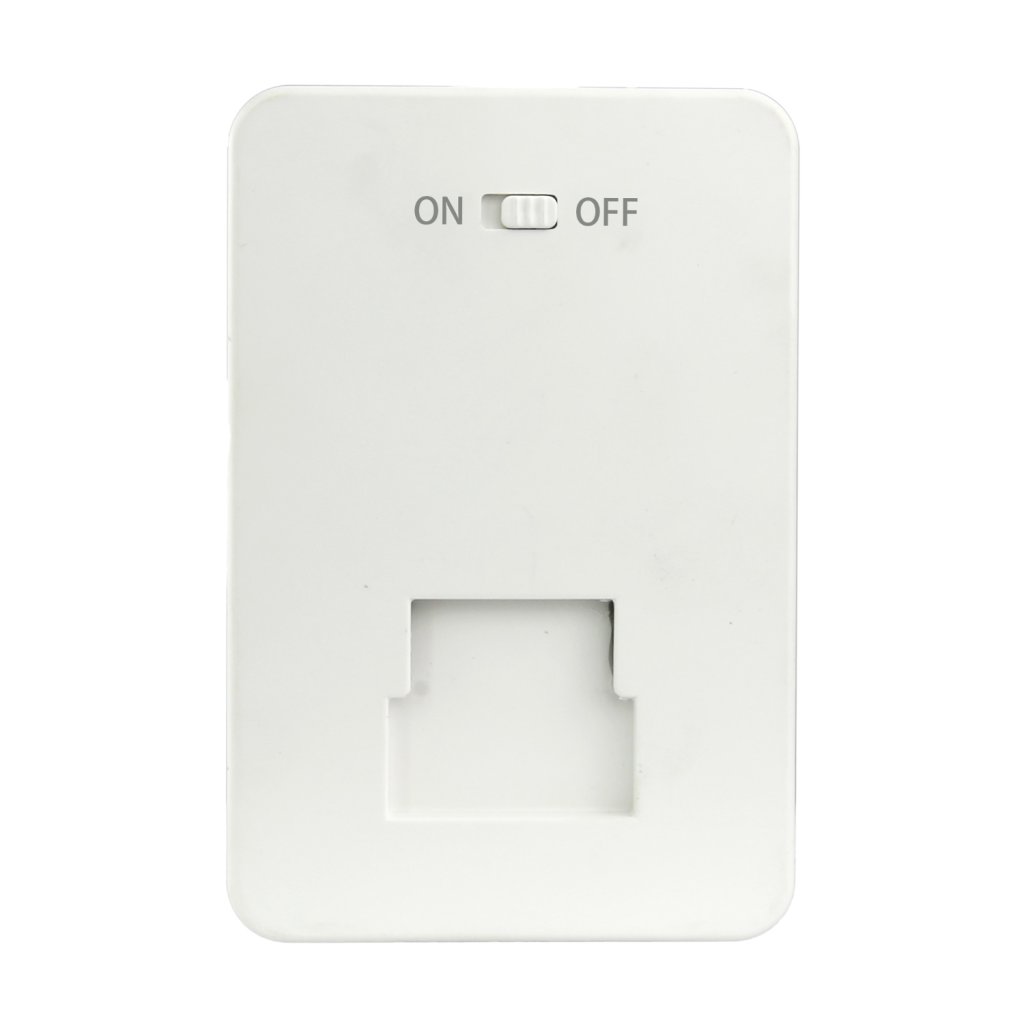

EVOLVEO PIR, smart WiFi wireless PIR motion sensor

EVOLVEO PIR, motion detector

The system uses PIR infrared sensor with ambient temperature compensation, ensuring constant sensitivity and high resistance to false alarms. The detection is based on the detection of temperature difference when people move differently with temperature against the environment.

You connect the detector to your Wi-Fi network and pair it with your phone, then when the guarded area is breached (when the alarm is on), the detector indicates this fact to you via an alert in the app.&nbspIt works independently, without the need for a control panel, just connect to Wi-Fi. The detector can also be connected to a smart alarm EVOLVEO Alarmex PRO. Using the scenarios, an action can be performed when motion is detected, triggering another Tuya Smart appliance, for example, switching on a smart socket EVOLVEO Porta F16.

This device can be connected and controlled via the Smart Life app (you can also use the Tuya Smart app as an alternative).

Technical Specifications

• Baterie 1×CR123A 3V
• Activation current≤160mA
• Contingency current ≤45μA
• Low voltage warning ≤2.6V
• Wi-Fi 2,4GHz / 802.11b/g/n
• Detection distance 10m / 110°
• Operating temperature -10 - 50°C
• Relative humidity < 95% (non-condensing)
• Method of installation - Mounting on a bracket
