EVOLVEO DoorPhone AHD7, Set of home WiFi videophone with gate or door control white monitor

Videophone EVOLVEO AHD7 is a modern videophone with SMART LIFE App for remote management, Full HD picture, With the ability to open the gate or gate remotely via the app, for example, when you have a visitor. Wiring is simple with 4 wires up to 50m. In addition, the monitor is equipped with a micro SD card slot for recording events in front of the camera, so you will not miss any mailman with a package.

Connections

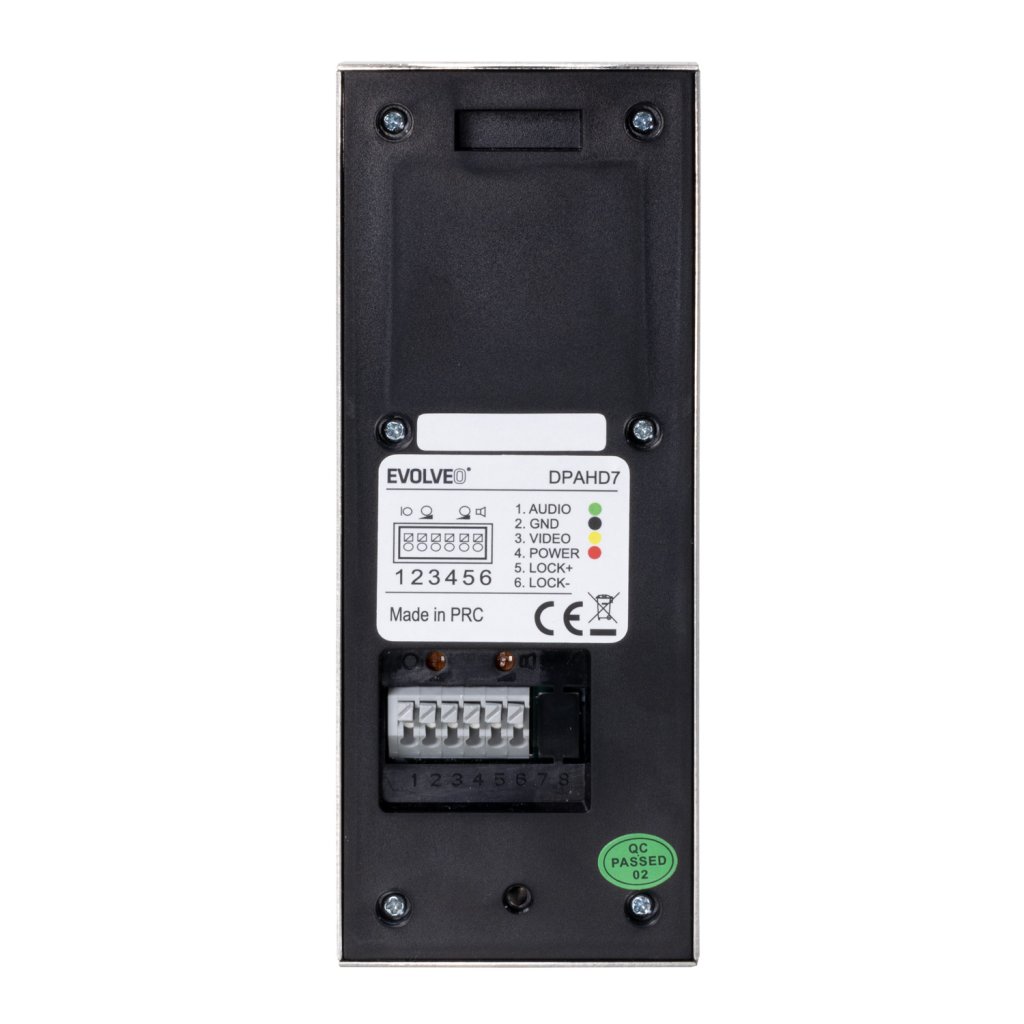

No need to worry about the connection, 4 wires connect the Monitor to the door unit, everything is color coded and simply connected with lever clamps.

Quality durable design,

The external part of the device is made of stainless steel, so it can withstand external weather conditions without any problems. When properly mounted using the supplied gasket, the device achieves IP65 weather protection. The camera is equipped with night invisible illumination, so you can see who came to visit you at night.

Easy to use

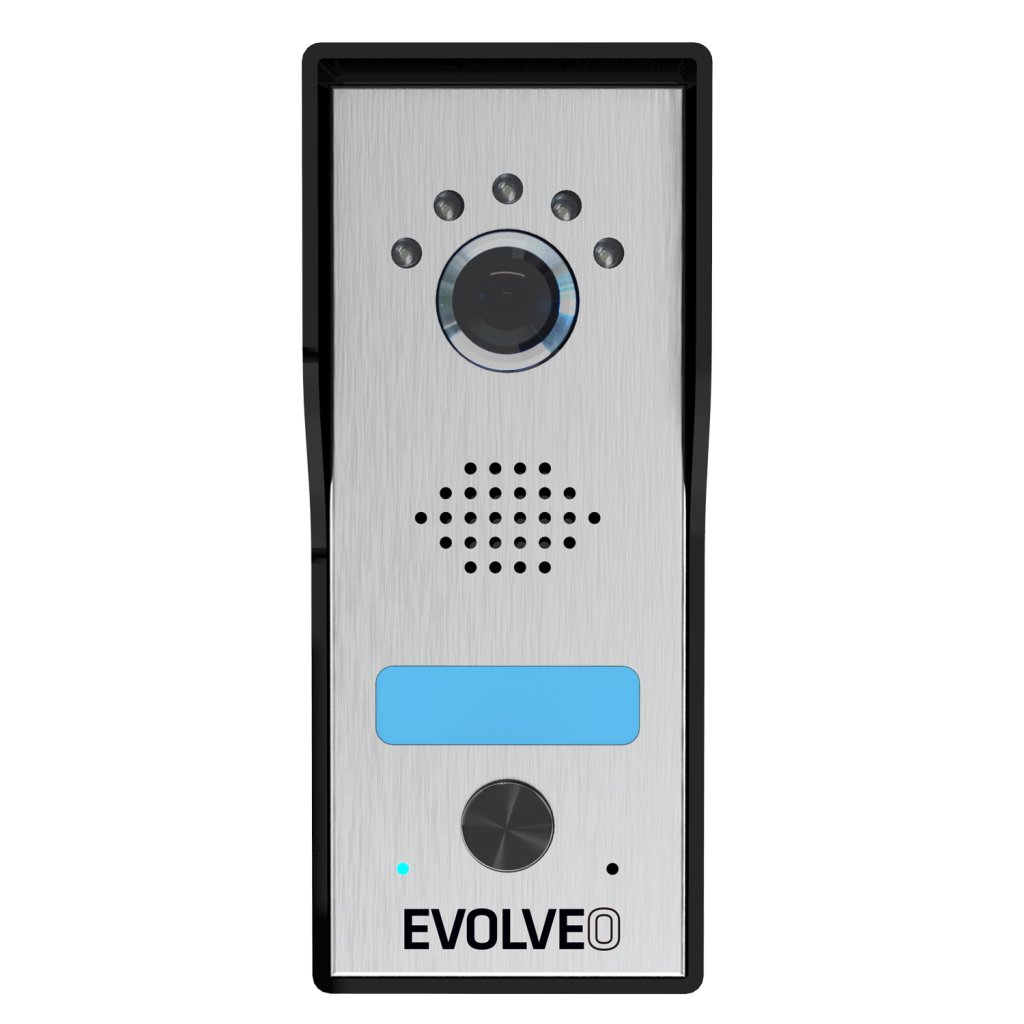

The weather-resistant overhead panel is equipped with a button and camera for guests to call you. When a guest presses the call button on the outdoor station, the monitor rings, at the same time the visitor's image appears on the screen, you decide whether to open the door or not. This amazing feature gives you a complete access control system.

Balení obsahuje vše co je potřeba k jednoduché instalaci: vnitřní monitor, venkovní jednotku s kamerou,  sadu šroubů a hmoždinek, svorky na kabely s páčkou.

Main functions of the input panel:

Camera: 2MP, 70° FOV

Image resolution: 1080P

Microphone: Yes - two-way voice communication

Selectable ringtones: yes 6 ringtones - add your own

Internet connection: WiFi 2.4Ghz monitor

Monitor colour: white

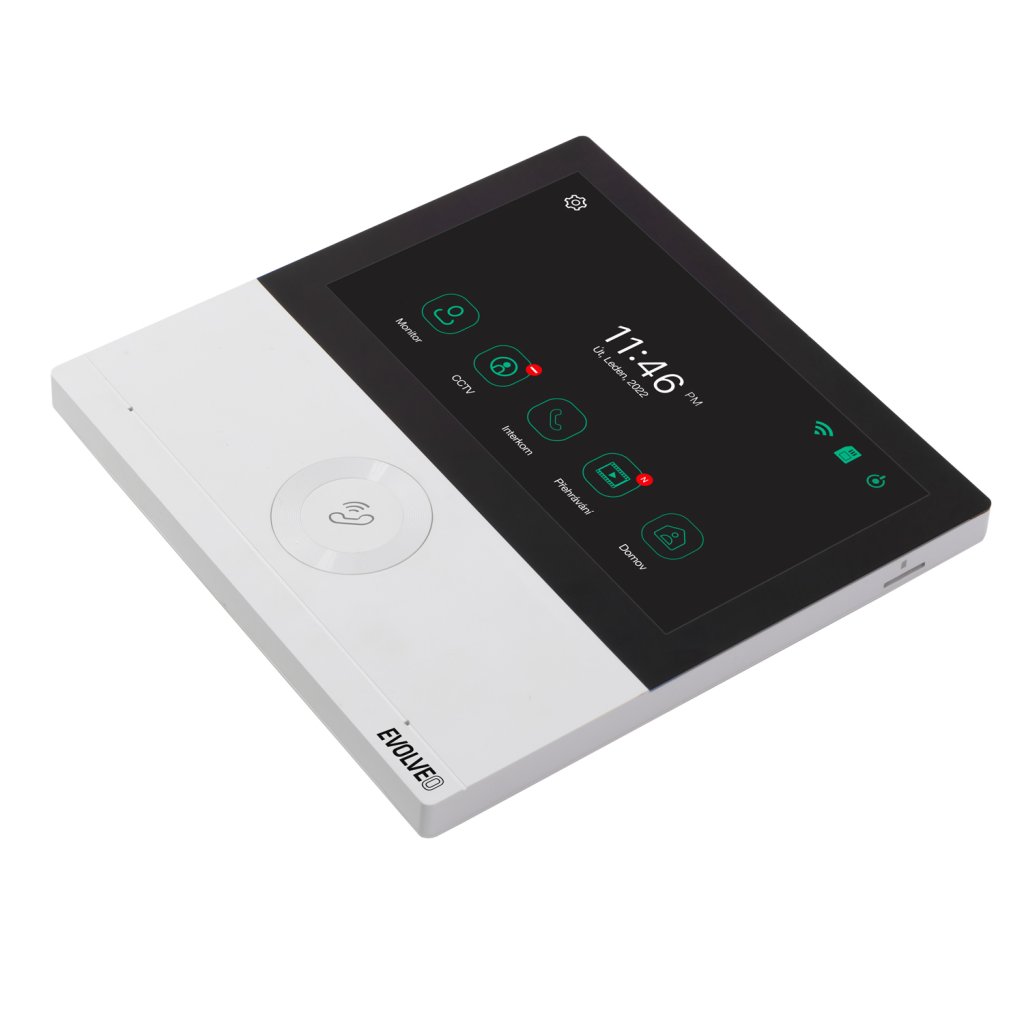

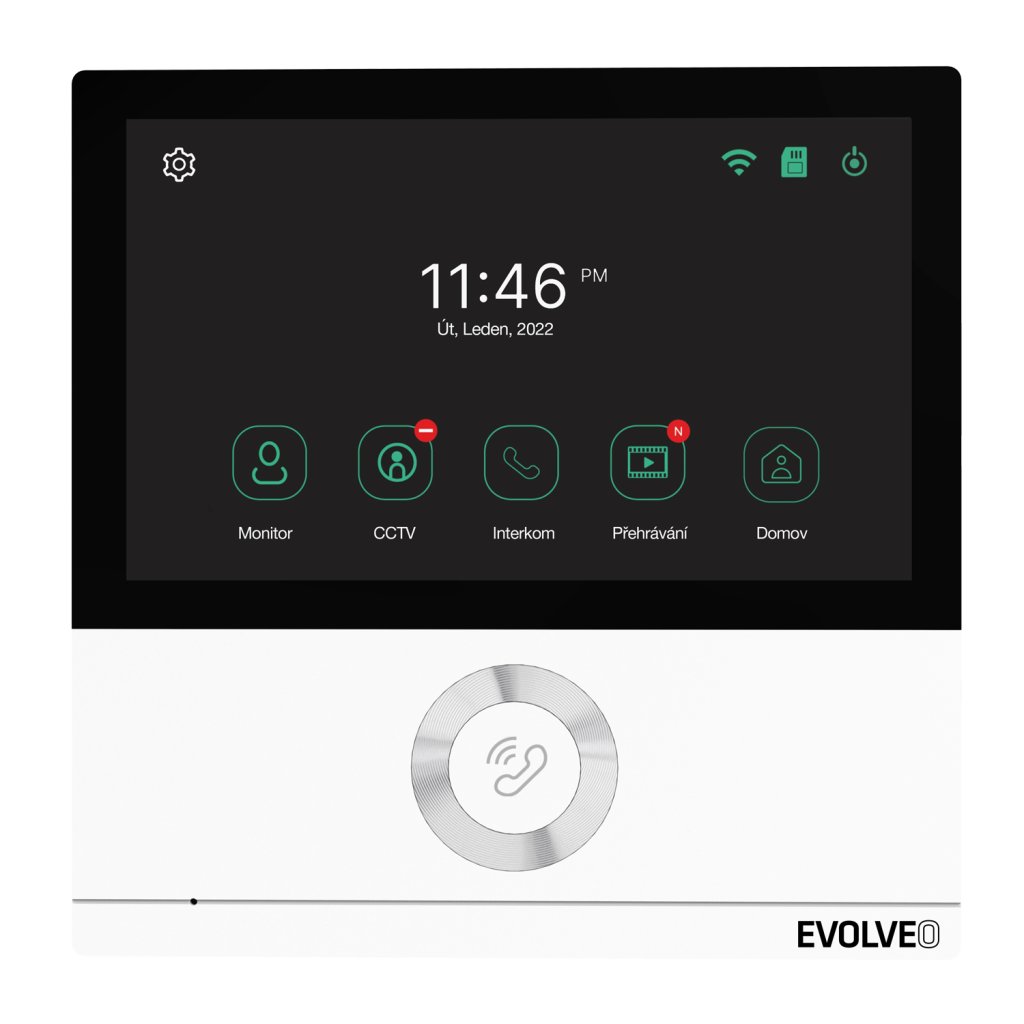

Monitor size: 7"

Door panel colour: stainless steel

Remote Management: yes Smart Life (Tuya platform)

4 wire connection - colour coded for easy installation

Night illuminator - night color photo and video

Surface mounting with rain cover

Weatherproof - IP44

Large backlit nameplate

1x 5A relay for opening gate or gate

Monitor power supply:12-15V/1A DC

Adapter cable length: 120cm

Menu in languages: CZ,SK,EN,HU and RO

Monitor dimensions: 181x181x18, VxŠxH(mm)

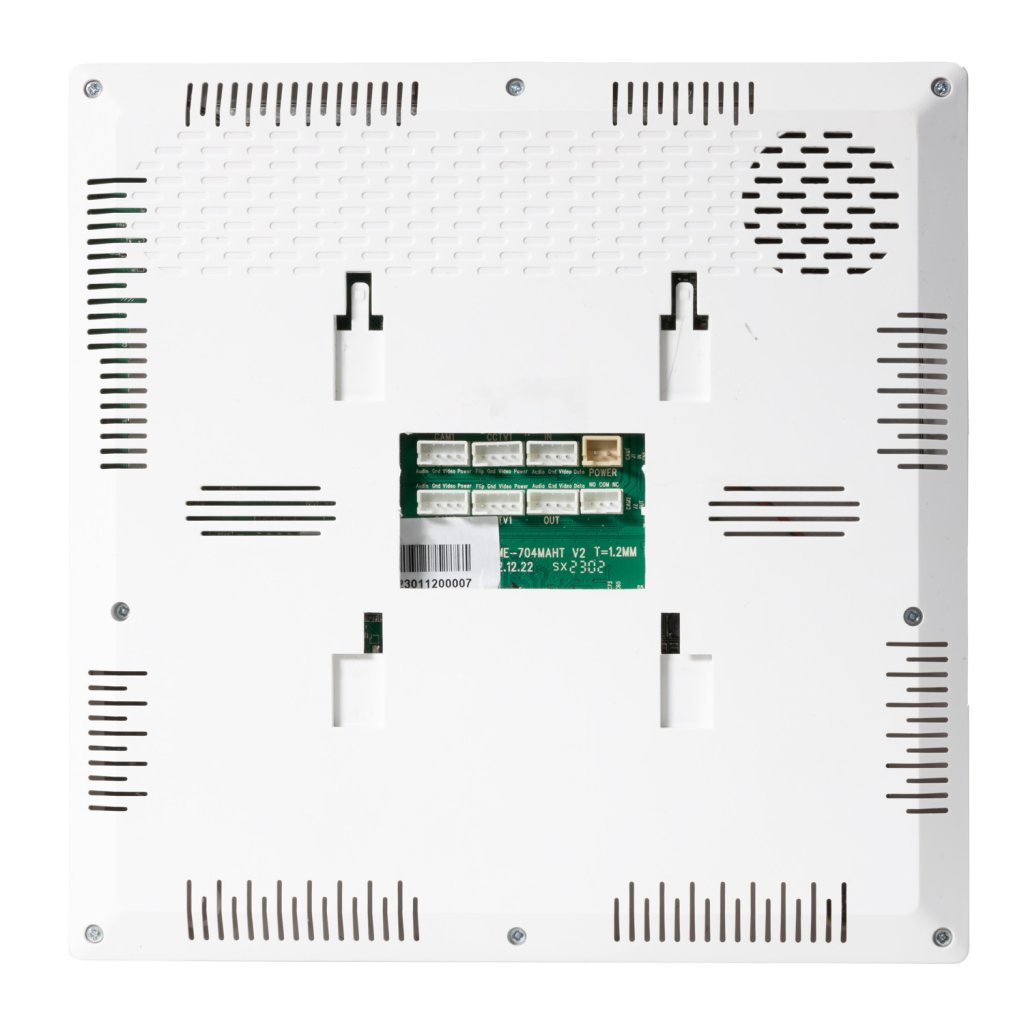

Mounting the monitor: using a bracket with spacing on the KU68 wiring box (standard switch/socket box)

Dimensions of the door unit: 50,5x136,5x28 HxWxD(mm)

Panel mounting: using a bracket with 4 screws spacing 45x100mm

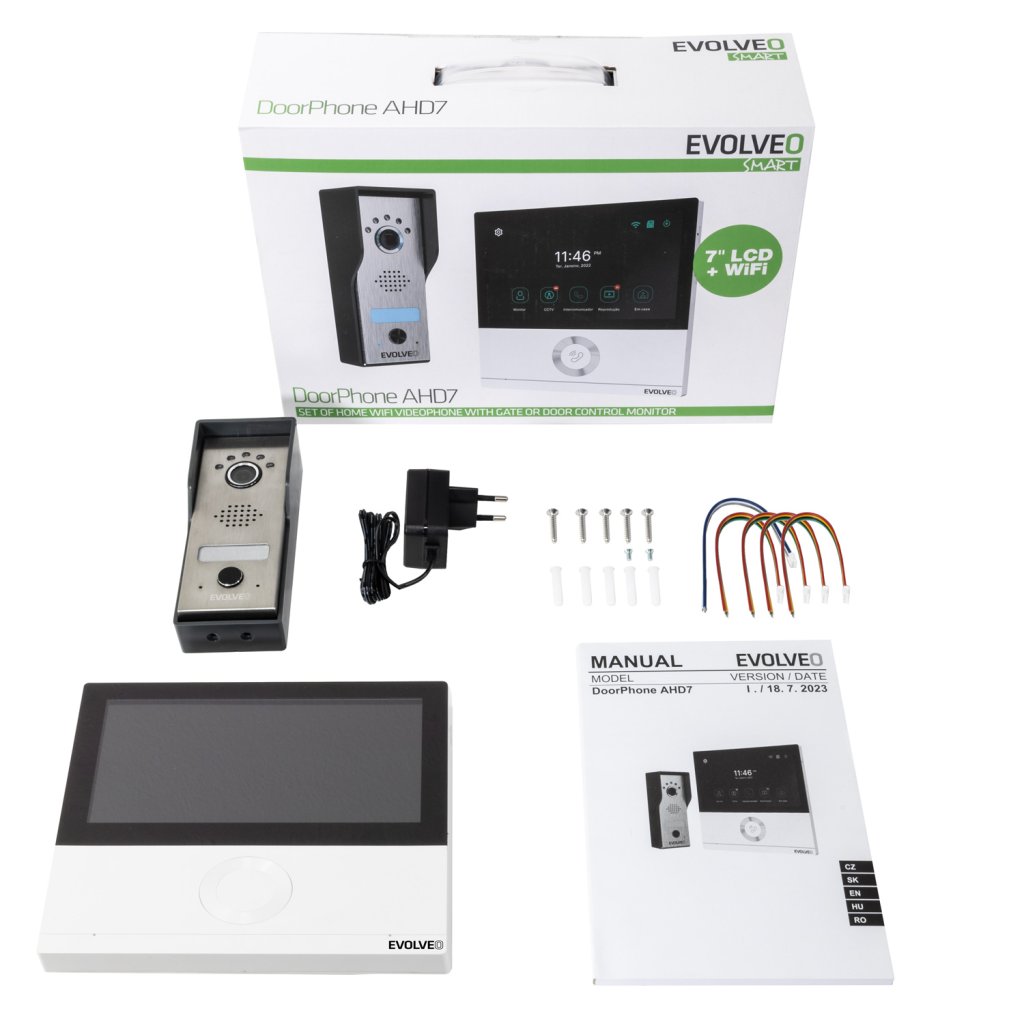

Package contains:

1 x 7″ monitor

1 x entrance panel, door unit

1 x power supply

1x set of screws and dowels

1x set of cables for connecting units

1x relay connection kit

1x User Manual
