EVOLVEO PowerCharge 1000, charging station

Evolveo PowerCharge 1000 charging station

Always have plenty of power on hand for a wide range of devices, wherever, whenever you need it! Traveling, fishing, cottaging, outdoor activities, camping and roadtrips will be more convenient with the PowerCharge 1000 charging station.

Advanced handling and safety

Evolveo PowerCharge 1000 is very easy to use. The touch buttons on the front display can be used to easily switch the AC or DC output on and off, and the remaining battery level can also be monitored. The station is equipped with a fan for efficient cooling and is also equipped with a sensor that prevents overheating.

High Performance Flexible Charging Station

The charging station is compact and easy to carry. With its capacity of 1037 Wh and total output power of 1000 W, it can charge a wide range of devices such as mobile phones, tablets, cameras, speakers and other devices with USB-A or USB-C input. In addition, devices that require AC power (220V-240V) such as drones, laptops, TVs, fans, etc., can be connected using AC outlets.

Charging

There are three ways to charge the station. The station can be charged from the mains, using a solar panel and the last option is charging from a car via a car charger. In all cases, the charging status is shown on the display.

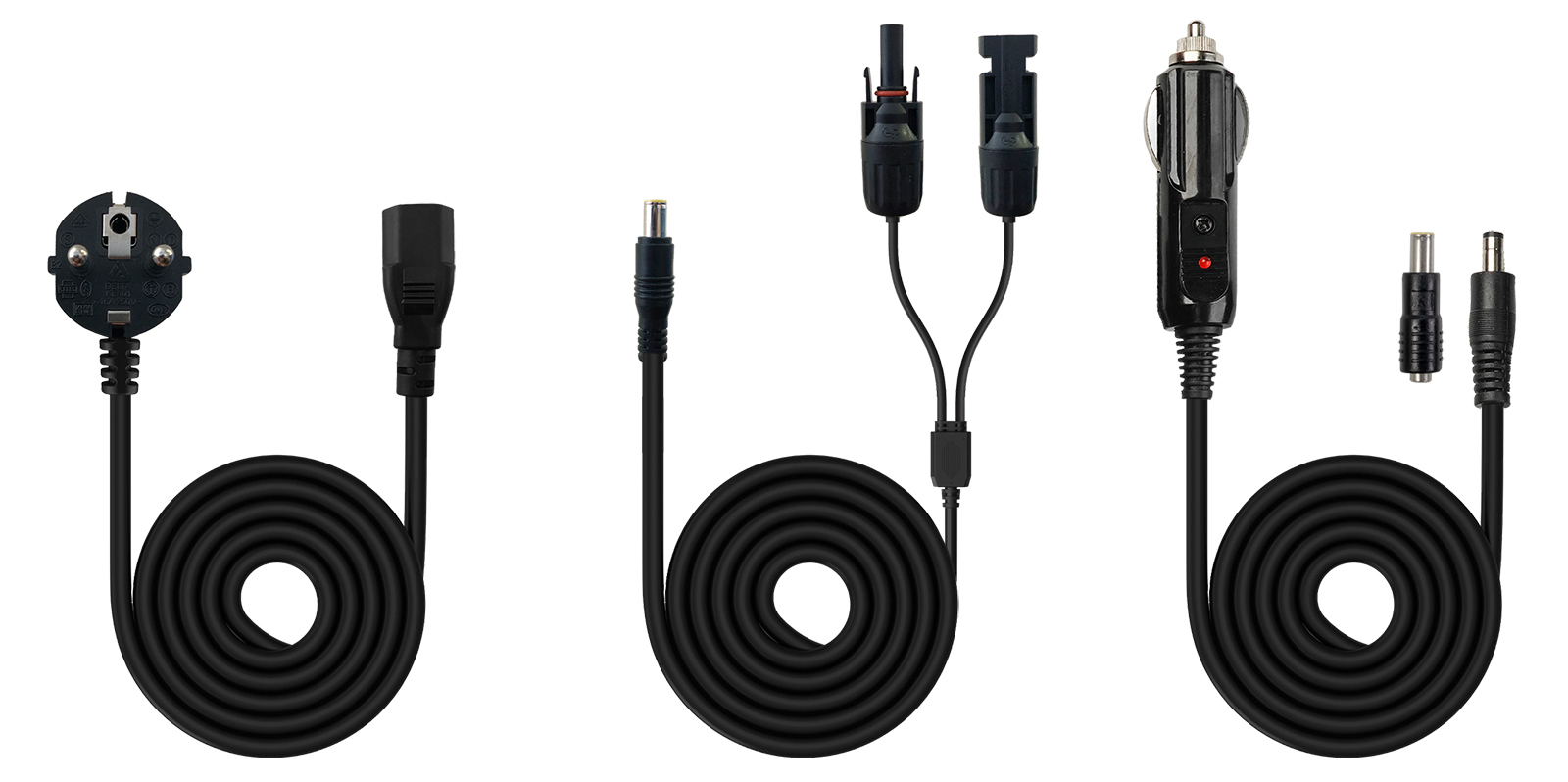

Charging cables included

Included in the package is a set of charging cables. This kit includes a power cord, car charging cable and solar charging cable. Thanks to these cables, you will be able to conveniently charge your charging station not only from a power outlet, but also while driving or using a solar panel.

Complete Specifications

• Ideal for powering car refrigerators, party speakers, mobile phones, tablets, drones, TVs, lighting, kettles, toasters, summer fans
• Capacity: 1036.8 Wh (25.6 V, 40.5 Ah)
• Lifepo4 rechargeable battery
• Nominal power input: 1000 W
• Peak power: 2000 W
• Total AC output power: 1000 W
• Robust body made of aerospace aluminium
• Three possible charging methods:
  • 230 V mains (AC 100-240 V, 50/60 Hz, 200 W)
  • Solar panels (DC 12-30 V, max. 200W, MPPT)
  • Outlet (DC 12 V)
• 2x AC output ports: 100-230 V, 50/60 Hz
• 7x DC output ports:
  • 4x USB-A port (5-20 V, 18 W)
  • 1x USB-C (Type-C) port (5-20 V, 18 W PD)
  • 1x CL cigarette port (12 V, 7 A)
  • 1x 5521 (12 V, 5 A)
• Shared QC 3.0 (18 W) support on USB-A ports
• PD 3.0 (Power Delivery) 18W support on USB-C (Type-C) port
• Maximum Power Point Tracking (MPPT) support for solar charging tracking the highest panel current and voltage to obtain the most optimal battery charging parameters
• Charging time: 6 hours
• Appliance power life: tablet (20 W) - 46 h, drone (60 W) - 15 h, mobile phone (11 W) - 84 h, light bulb (7 W) - 133 h, TV (100 W) - 9 h, car refrigerator (70 W) - 12 h

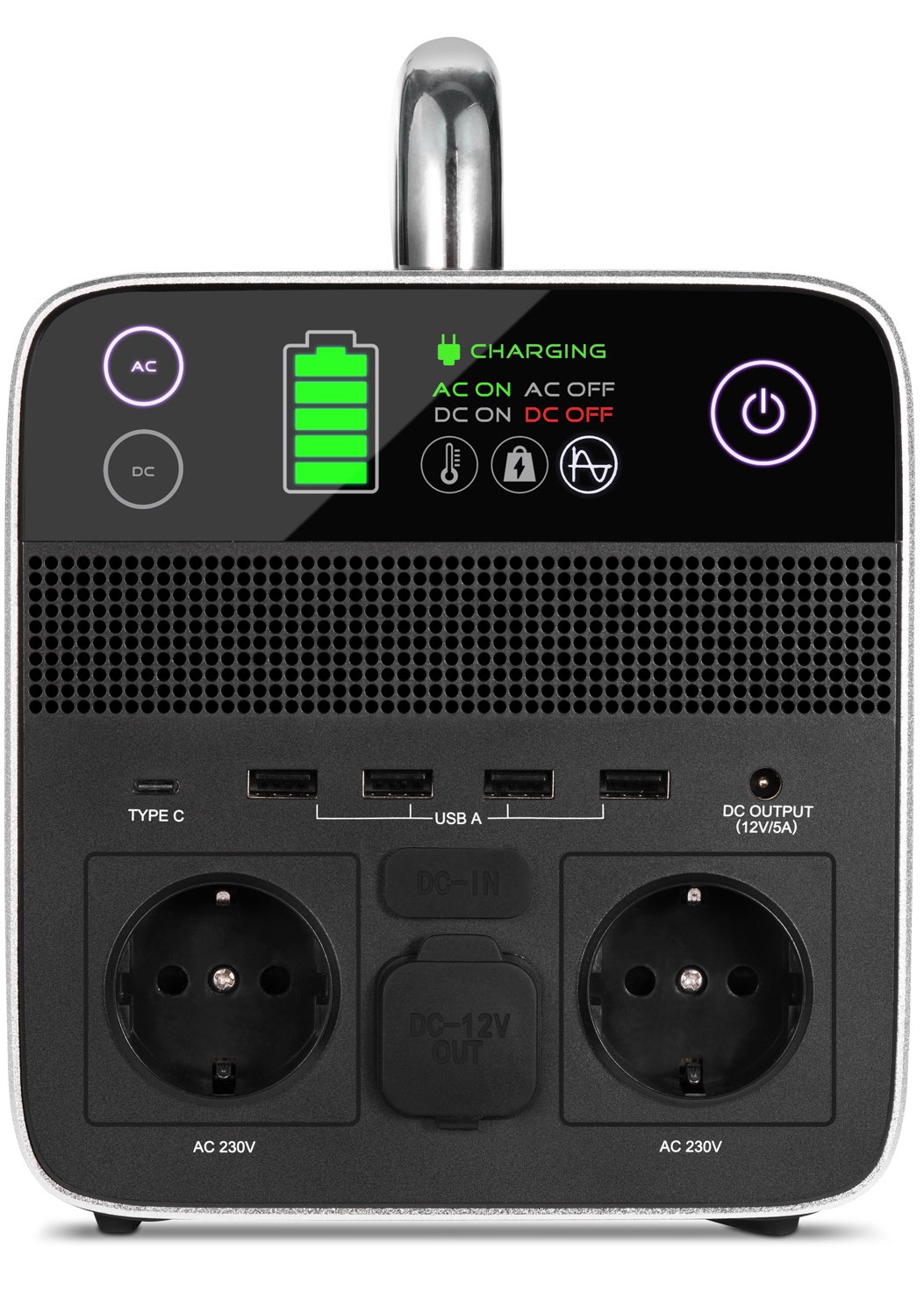

• Large and clear display with touch sensors to control the station
• Colour display backlight
• Display graphic indicators:
  • Indicator for switching on the whole station
  • AC port power on/off indicator
  • On/Off indicator for DC port power supply
  • Battery charge indicator (5 levels)
  • Indicator of the station charging in progress
  • Sinusoidal AC output waveform indicator
  • Overheat indicator
  • Simple overload indicator
• Sound signaling of station control
• Colour indication when station capacity reaches below 3%
• Separate power on/off for AC and DC ports

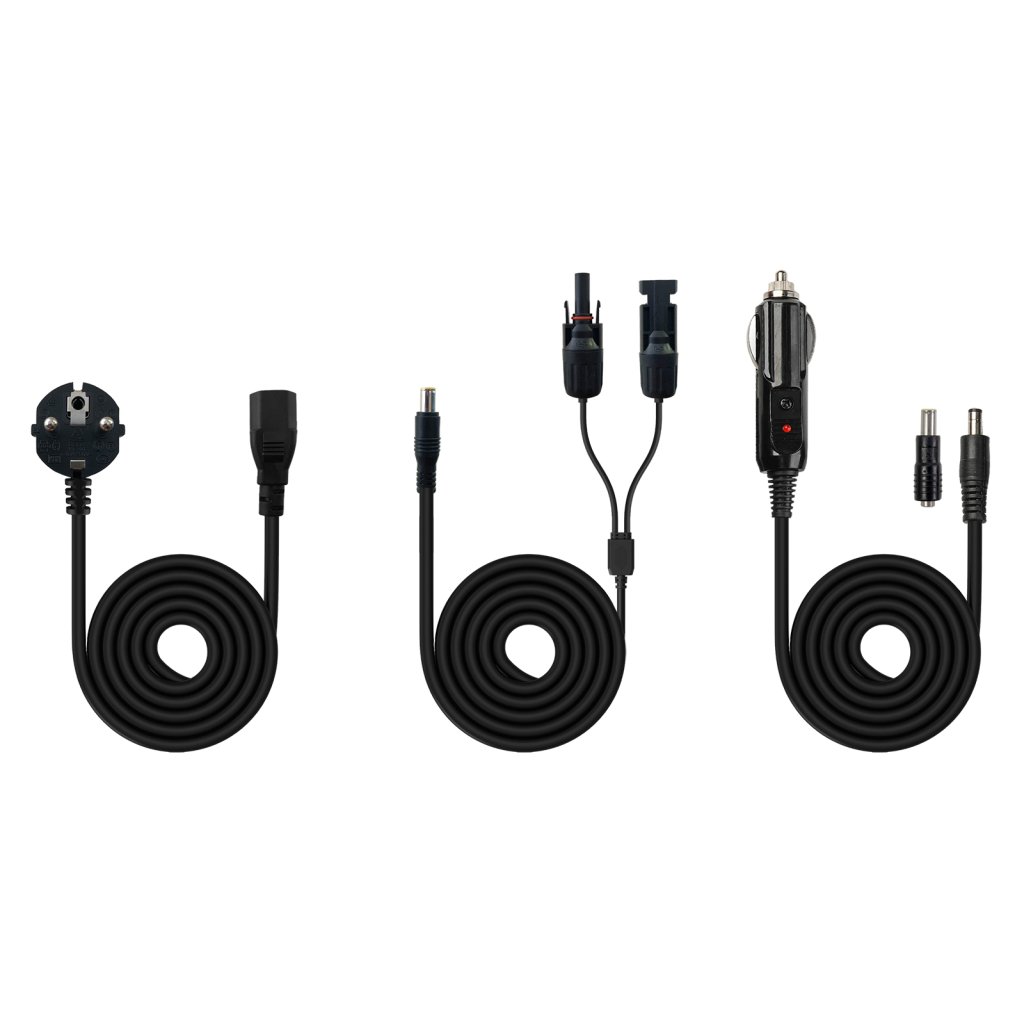

• All wiring is included:
  • Power cable to power adapter (length 1.5 m)
  • Solar charging cable MC4 (length 1.8 m)
  • CL car charging cable (length 1.5 m)
• Inverter AC port waveform: pure sine wave for maximum appliance protection
• High performance and quiet cooling fan
• Automatic fan switching when the internal temperature of the station reaches 35 °C
• Massive handle for easy carrying and transport
• Silent and noiseless operation
• Rubber non-slip feet
• Power adapter parameters:
  • AC input 100-240 V, 5-2.5 A, 50/60 Hz
  • Dc output 24 V, 10.41 A, 250 W
• AC output: AC 230 V, 4.35 A, 1000 W
• Double security protection:
  • Overheating protection (if the internal temperature reaches 85 °C, the power supply to the output ports is stopped and an acoustic alarm is triggered)
  • Anti-overload
• Operating temperature range: 0-40 °C
• LVD, EMC, RoHS certification
• Dimensions (w × h × h): 16.5 × 38.5 × 17.3 cm
• Weight: 13.5 kg

Contents of the package

• Charging station
• Power adapter
• Power cord to power adapter
• Solar charging cable
• CL car charging cable
• Reduction for 5521 connector for charging from a car socket
• Instructions for use (EN, DE, CZ, SK, HU, RO, IT, SLO)
