EVOLVEO StrongVision PRO A, photo trap/security camera

Universal Camera

StrongVision PRO A is the basic camera of the new PRO series of EVOLVEO photo traps. The camera stores all captured images on an inserted SD card, and you can view individual images or videos directly on the camera on the large 2.4" LCD display. The camera is suitable for both in the woods for game observation, as well as for taking time-lapse footage or monitoring the development of your building. Thanks to its compact size and conveniently placed brackets on the camera body, it can be mounted using the included strap, as well as possibly secured with a rope lock such as the EVOLVEO StrongVision LOCK. The camera is powered by 10x AA batteries with 1.5V voltage, which ensures long operation time.

Clear image in any conditions

The camera is equipped with an 8Mpx sensor and an active IR filter. They enable the camera to record video in 4K format and photos with a maximum resolution of up to 30 Mpx. The active IR filter works automatically and helps when recording at night, when the camera senses the surroundings with the help of a powerful IR illuminator. Invisible illumination is provided by 6x high-brightness IR LEDs, each with a power of 3W. The illumination has a wavelength of 940nm, which makes it very difficult to discern by the human or animal eye. So you don't have to worry about the camera being recognized by wildlife or unwanted visitors passing in front of the camera. In the daytime, the recording is in color for both photos and video, which is recorded with sound. At night, recording is in black and white and switching between modes is fully automatic.

Rich accessories

With battery-powered cameras, the biggest issue is always their endurance and the associated efficiency of operation.StrongVision PRO A is powered by 10xAA 1.5V cells, which, depending on the frequency and type of recording, allows a battery life of 1 to 4 months per set. If you want to ensure long-term and inexpensive operation, the camera can be equipped with a rechargeable 8,000mAh battery StrongVison BAT3, which can extend the battery life up to 6 months depending on the settings used. The rechargeable battery also allows you to operate more economically, as you do not have to constantly buy new AA cells.

Although the camera itself is durable and meets IP65, there may be many situations when you need to protect it from either a naughty person or a squirrel that likes to test the durability of the plastic housing. For this reason, we have a protective and lockable metal box EVOLVEO StrongVision MB2 available for the entire StrongVision PRO series. The box is made of 1.5mm thick sheet metal, has all the holes so that you can connect an external power supply or use a steel cable for attachment and is weatherproof thanks to the matt protective coating.

For the case when you have the possibility to connect the camera to the mains, you can buy a 12V power adapter EVOLVEO StrongVision ADAP, the camera will be primarily powered from the adapter and if there is a power failure from the mains, the inserted batteries will serve as a backup power supply.

If you want to use any other power supply or a backup lead-acid battery, you can purchase the EVOLVEO StrongVision PWRC power cable directly for evolveo photo traps.

Parameters:

• Sensor: 8 MPX CMOS
• Camera lens: F=3.1; FOV=57°
• video resolution: 4K/2,7k/1080P/720P/VGA
• Photo resolution: 12MP - 30MP
• Trigger speed 0.8s
• Mode: Photo, Video, Photo&video, Time-lapse, Multishot.
• SD Card up to 256GB

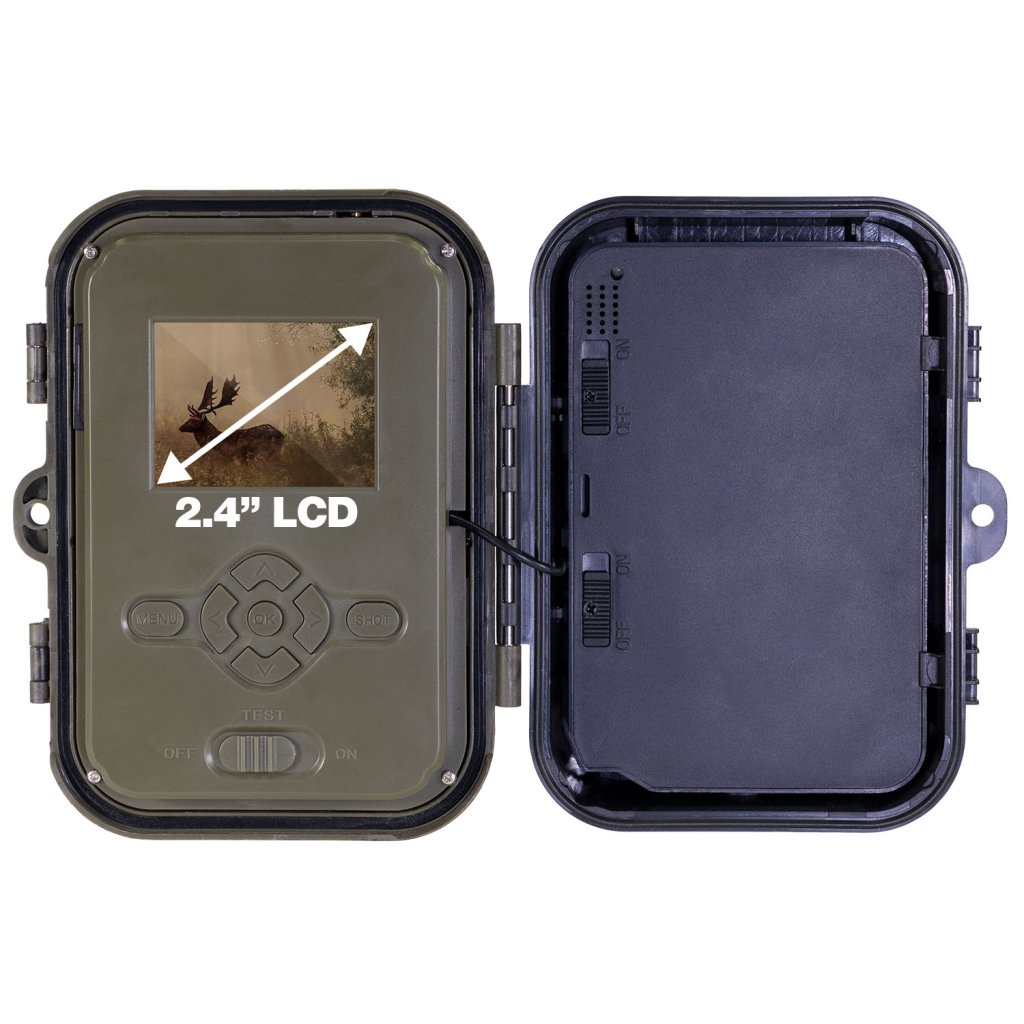

• 2.4" TFT Display
• nightlight:  6 x 940nm Infrared powerful 3W IR LED
• PIR Range: Selectable sensitivity High/Normal/Low
• PIR Angle Sensor: 120°
• maximum IR LED range: 20 metres
• Trigger interval 1/5/10/30s/min
• multiple frames per activation (multishot): 1/2/3/10
• date in photo: Yes
• Security: PIN at start-up (4 digits)
• option to set the scanning in time interval (TimeShot)
• possibility to set the scanning interval from 1 second to 24h for time-lapse

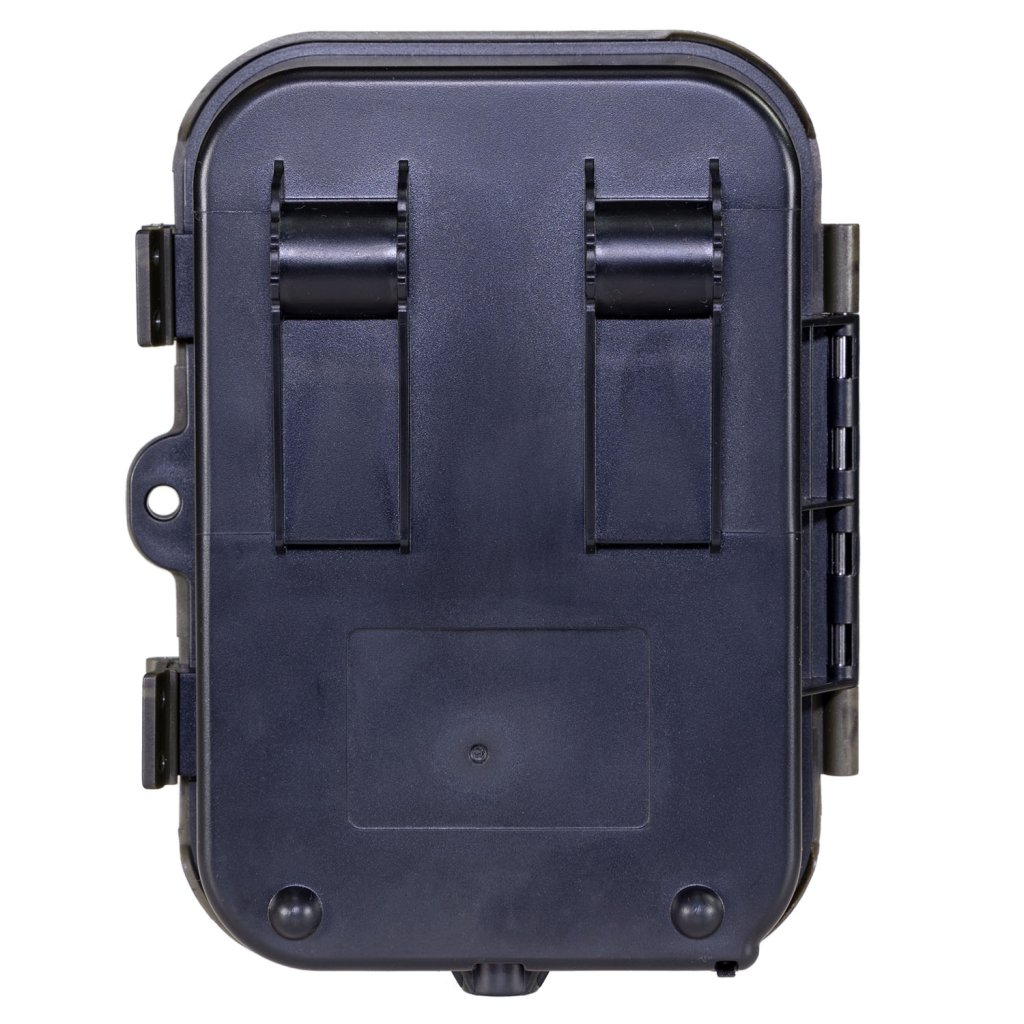

• attaching the camera with a strap or rope lock StrongVision LOCK
• Operating temperature -10°C to +50°C
• batteries in separate battery box, for electronics protection

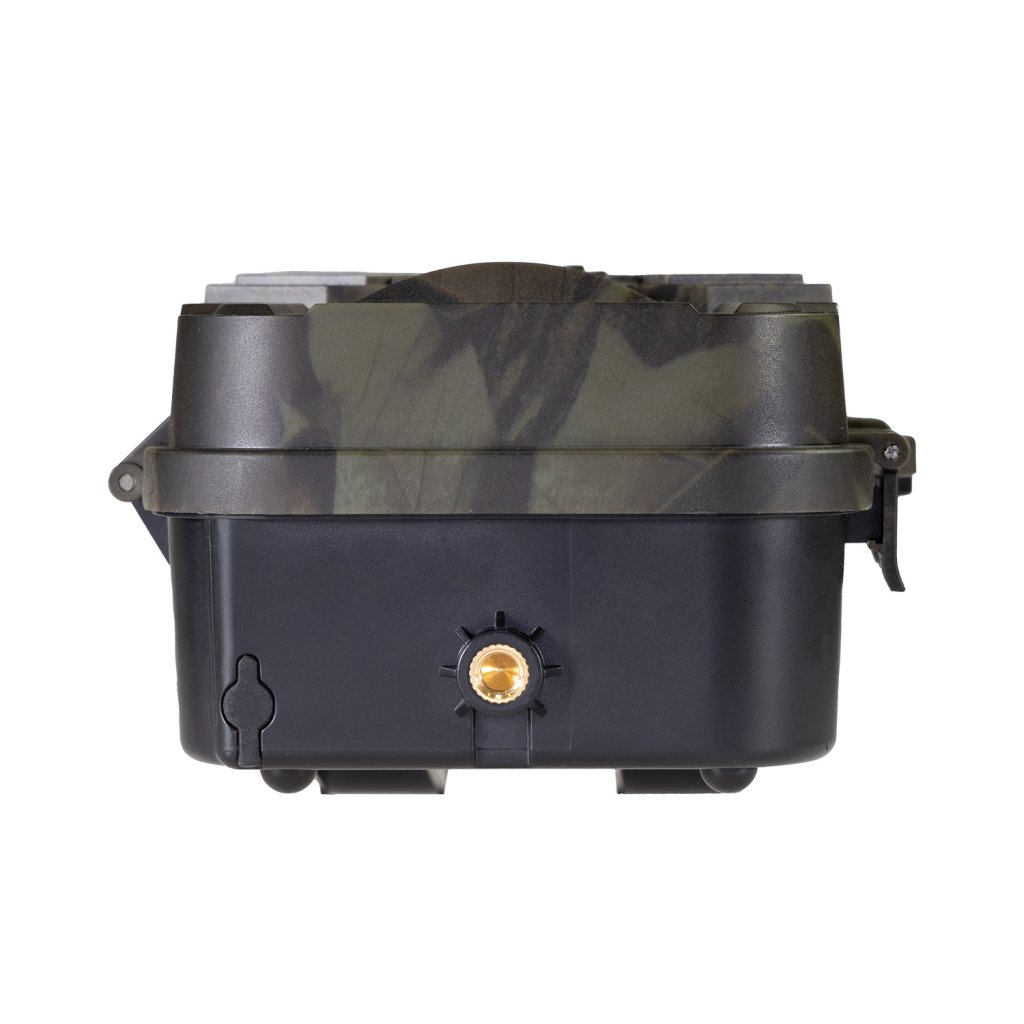

• Fixing: Belt max. 30x2mm cross section, 8mm wire, tripod thread 1/4'
• Interface: USB-C, SD card
• Batteries: 10x AA 1.5V LR6 (not included) or StrongVision BAT3 Li-Ion battery
• power connector DC Jack 3.5x1.3 mm
• Input voltage 12V/1.5A DC - StrongVision ADAP
• peace stream: 0.1mA
• stand-by time: 6 months
• Dimensions 151 x 118 x 87 mm
• Weight 371 g (without batteries)

  Package contents
• EVOLVEO StrongVision PRO A
• fastening strap
• SD card reader
• user manual
