EVOLVEO SecuPro, smart wireless GSM&Wi-Fi security system

Complete alarm system for home security EVOLVEO SecuPro

Imagine you're going on holiday and your home is so securely looked after that the only worry in your mind is whether you've forgotten to pack your swimsuit. With the comprehensive alarm system EVOLVEO SecuPro you can finally relax. This personal guardian never sleeps, never misses a mouse and informs you immediately of any suspicious rustling.

The system communicates with you in Czech, can be controlled by voice and its control panel can wirelessly cooperate with up to 90 different detectors, sensors or other security features. Each of them can be up to 70 metres away from the main unit.

A whole army of security features

The EVOLVEO SecuPro system is like an army that protects the strength of your house. It is commanded by a master unit that you can hang on your wall at home using the included mounting kit. The roles of loyal soldiers are played by door and window detectors, motion sensor, siren and last but not least two remote controls and two key fobs (for easy touch activation/deactivation of the alarm) - all working together towards a single goal: Protect your home.
How does it all work in practice? Imagine, for example, that you are leaving for work and the alarm goes off. The system then immediately triggers an alarm when someone opens the door (secured by a magnetic sensor) without authorisation. And if an intruder tries to bypass the sensors and stealthily enter through an unsecured window, the motion sensor registers it - it immediately sends a signal to the main unit, which sounds the siren and sends a alert to your mobile phone (the system can report the alarm to up to five different numbers). Thieves simply don't stand a chance.

Smart alerts and classic SMS messages

Alarm uses a wireless Wi-Fi connection to communicate with the smart Tuya SmartLife app on your mobile phone. This app is compatible with both iPhones and Android devices. You will be pleased to know that it is available in completely in Czech, so you will be able to understand it perfectly.
In addition to Wi-Fi, the system also communicates with GSM mobile networks, so it remains fully functional and alert even in the event of a sudden loss of internet connection. In short, if Wi-Fi fails for any reason, the system automatically switches to the GSM network so you can continue to control the alarm remotely, receive notifications and stay in touch with your home - all thanks to good old SMS messages. If necessary, the alarm sends you a text message about a potential threat and you can control, activate or deactivate it via SMS. Even without an internet connection, you are still in control of your home

Technical Specifications:

• WiFi connectivity to the free Tuya SmartLife mobile app for iPhone and Android
• Dual Wi-Fi/GSM connectivity
• Colour 2.4" TFT display (49 × 37 mm)
• Deactivatable full screen backlight
• Voice control with deactivation
• Menu in 8 European languages (CZ, SK, EN, HU, DE, PL, RO, SI)
• Voice prompts in Czech and English
• Two-way voice transmission by calling the main unit
• After the alarm is triggered, an automatic phone call can be made from the main unit:
  • Deactivate and reactivate the alarm
  • Monitor status by eavesdropping
  • Conduct two-way voice dialogue
• Main display function:
  • Status reports
  • Date, time and day of the week
  • Alarm status (active/inactive)
  • Countdown of departure/arrival time
  • Signalling open windows/doors on departure
  • STAY and AWAY modes
  • GSM signal strength
  • Intenzitu WiFi
  • Power supply status (adapter/backup battery)
  • Sending SMS
  • The Call
  • Keyboard lock
  • Temperature and humidity
• Touchless control panel with extended life
• SOS button on the base for immediate alarm activation
• Alarm setting and on/off by SMS
• Setting of 5 phone numbers for alarm notification
• Ability to record a 20 second message for playback during an alarm
• Supports up to 90 wireless detectors or remotes
• Warning of an open window or door when scrambling
• Dav protection modes:
  • STAY (security of selected circuits)
  • AWAY (to secure all circuits)
• Alarm delay can be set when entering or leaving the building (0 seconds to 60 minutes)
• Main function of the app control:
  • Alarm activation
  • Alarm deactivation
  • Activation of selected circuits only
  • SOS activation (immediate alarm)
  • Event history (activations, deactivations, alarms, etc.)
  • Setting and controlling peripherals (sensors, remote controls, etc.)
• Alarm setting options in the app:
  • Leaving delay (1 - 1000 sec.)
  • Arrival delay (1 - 1000 sec.)
  • Timeline
  • Siren activation/deactivation
  • Siren duration (1 - 1000 min.)
  • Display backlight activation/deactivation
  • Setting contact phone numbers
  • Changing your password
• Tamper protection in case of theft (an alarm is activated when trying to dismantle the main unit)
• Alarm in case of main power failure or battery backup
• Two options for setting the length of the siren sound:
  • from 1 minute to 24 hours
  • continuously (until switched off by the user)
• Automatic time synchronization via GSM/WiFi
• GSM frequencies: 850/900/1800/1900 MHz
• Power the main unit using the supplied adapter (Micro-USB connector)
• Built-in backup Li-Ion battery (500 mAh, 3.7 V) in case of power failure
• WiFi standard: IEEE 802.11b/g/n
• Operating frequency: 433 MHz
• Operational range of the base for connection to sensors and transducers: 70 m (in free space without obstacles)
• European certifications LVD, EMC, RoHS

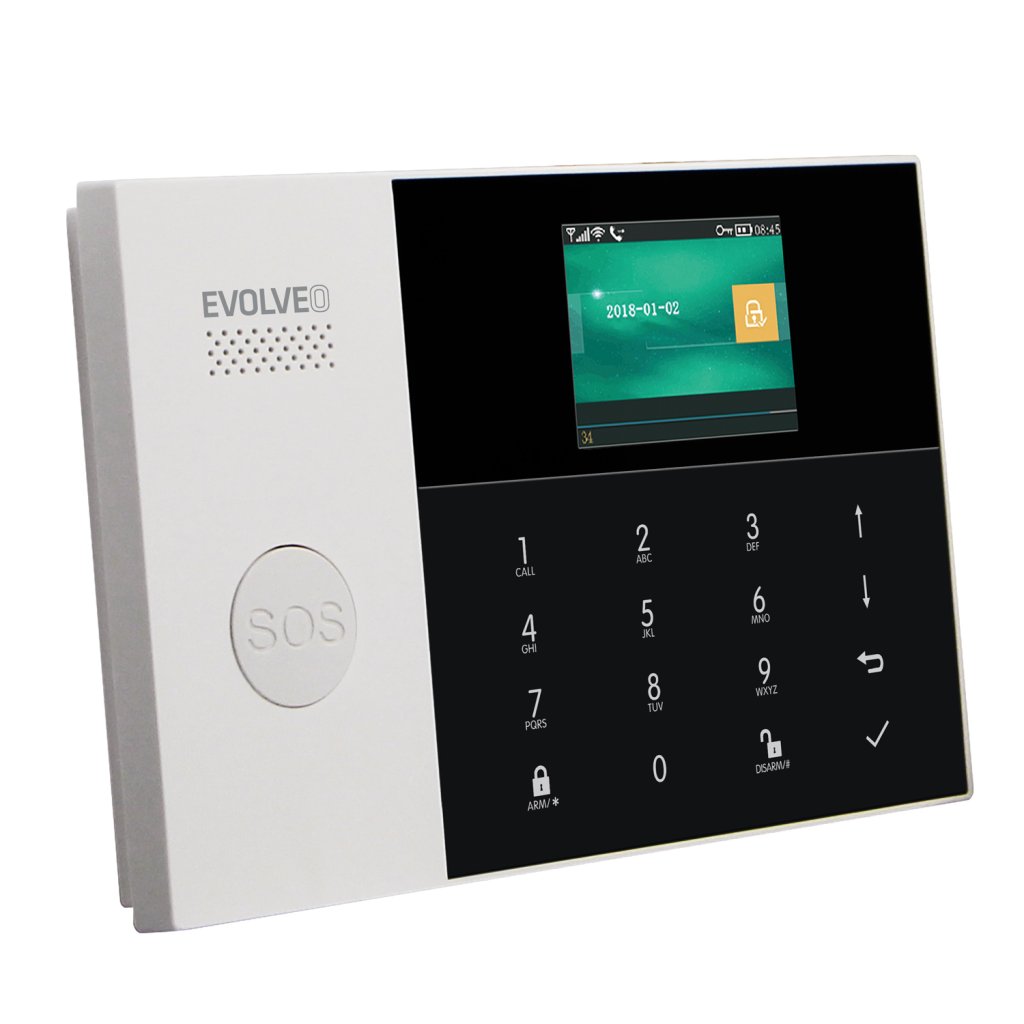

Main Unit Specifications:

• Power supply: DC 5 V

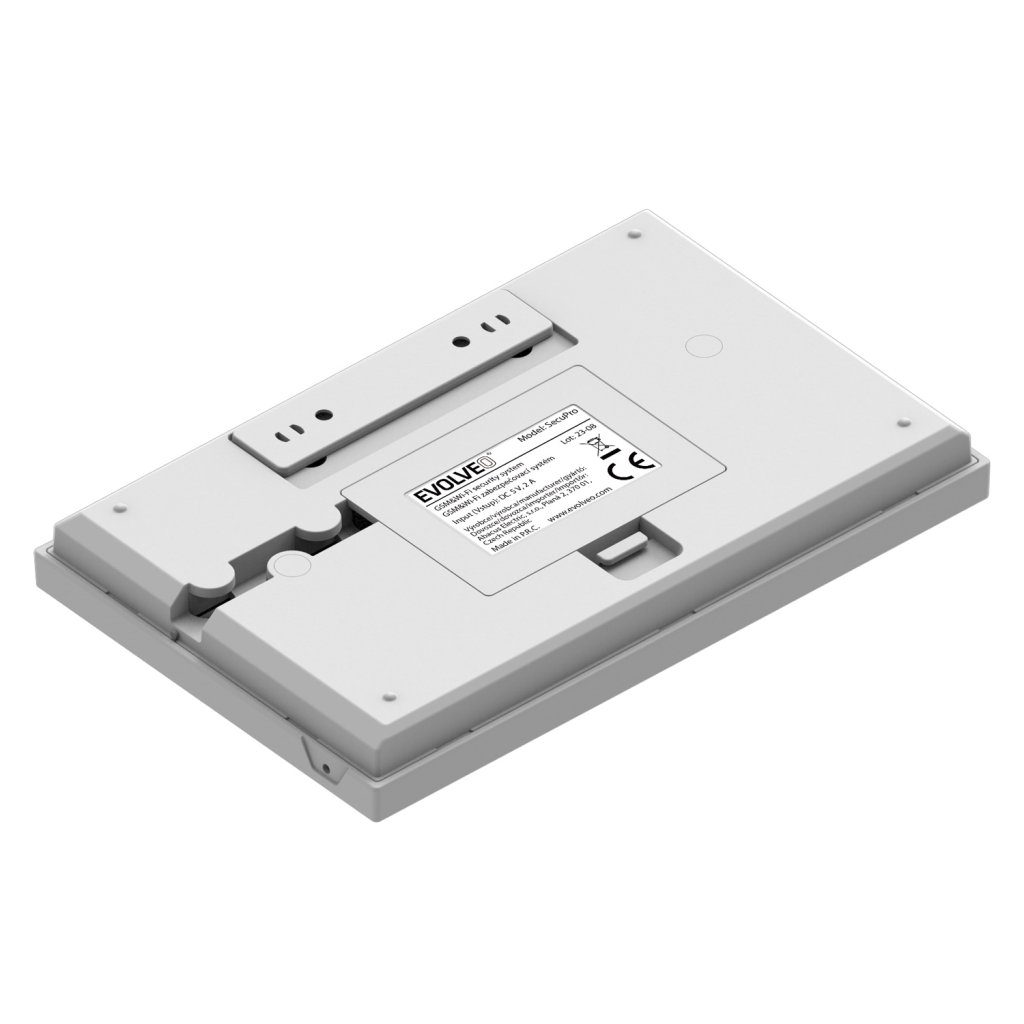

• Mounting on the wall using the supplied mounting kit (2x dowel + 2x screw)
• Standby current: ≤80 μA
• Operating current: 120 mA
• Alarm mode current: 500 mA
• Dimensions (w × h * h): 180 × 21 × 115 mm
• Weight: 236 g

Power Adapter Specifications:

• Nominal input voltage and frequency: AC 100-240 V, 50/60 Hz
• Nominal input current: 0.3 A
• Nominal output voltage and current: 5 V, 2 A
• Nominal power input: 10 W
• Spot on the adapter: USB-A
• Separate power cable USB-A -> Micro USB
• Length of power cord: 1 m
• Dimensions (w × h * h): 180 × 21 × 115 mm
• Weight: 236 g

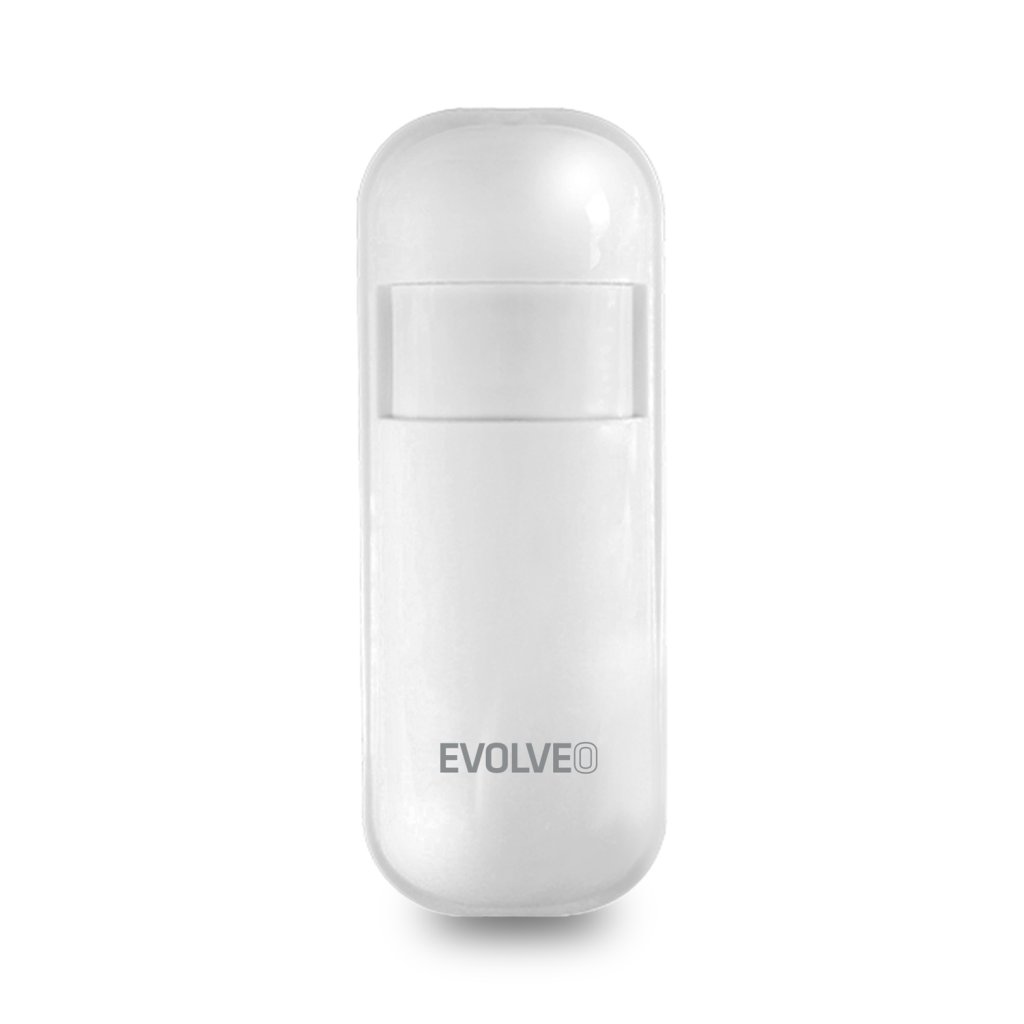

PIR motion sensor specifications:

• Detection range: 12 m
• Detection angle: 110°
• Infrared sensor
• Red LED indicating active movement
• Power supply: 1.5 V AAA micro button cell battery (2 pcs)
• Battery life up to 1 year
• Anti-RFI technology eliminates radio frequency interference
• Anti-EMI technology eliminating the influence of electromagnetic fields
• Standby current: ≤20 μA
• Alarm mode current: ≤25 mA
• Wall mounting using the supplied hinged bracket
• Mounting kit included (2x dowel + 2x screw)
• Alternative installation with double-sided tape
• Dimensions without holder (w × h * h): 40.5 × 26 × 105 mm
• Dimensions with holder (w × h * h): 40.5 × 45.5 × 105 mm
• Weight (without batteries and without holder): 37 g
• Weight (without batteries and with holder): 42 g

Door/window magnetic sensor specifications:

• Detection distance: 25-35 mm
• Tamper protection in case of theft (alarm is activated when trying to dismantle the transmitter)
• Power supply: 3 V button cell battery CR2450 (1 pc)
• Battery life up to 1 year
• On/Off switch at the back of the transmitter to switch the sensor on/off
• Red LED indicating open circuit
• Soft self-adhesive pads for transmitter and magnet to protect window and door surfaces
• LED signalling in case of low battery (≤ 2.2 V)
• Standby current: ≤8 μA
• Alarm mode current: ≤14 mA
• Transmitter dimensions (w × h × h): 30 × 15 × 67 mm
• Magnet dimensions (w × h × h): 11 × 13.5 × 44 mm
• Transmitter weight (without battery): 16 g
• Magnet weight: 11 g

Siren Specifications:

• Siren volume: 100 dB
• Mounting on the wall using the supplied mounting kit (2x dowel + 2x screw)
• Alternative installation option using the supplied soft self-adhesive pad to protect the mounting surface
• Power supply: cable with base connection
• Power cable connector: Jack 3.5 mm
• Length of power cord: 0.9 m
• Operating current: ≤60 mA
• Dimensions (w × h × h): 53.5 × 63.5 × 47.5 mm
• Weight (incl. cable): 61 g

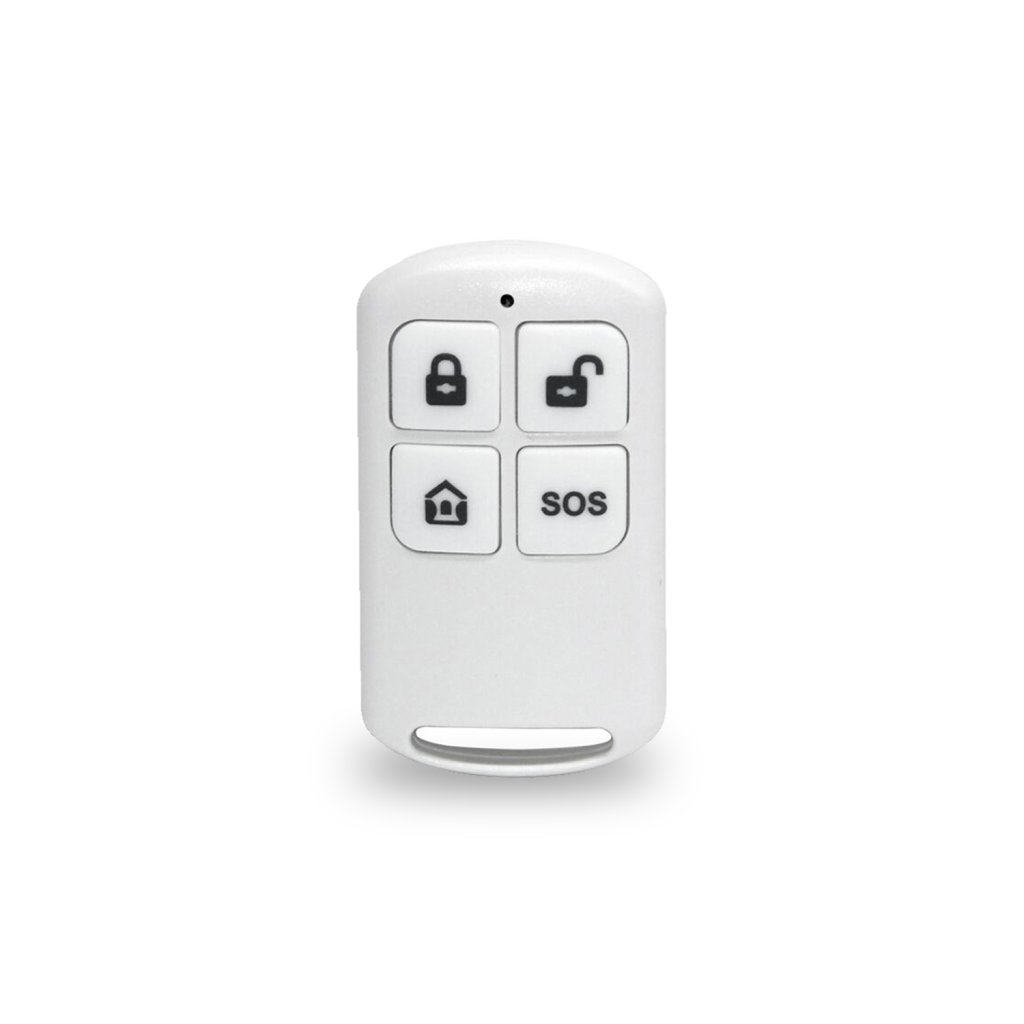

Remote Specifications:

• Dosah: 100 m (in free space without obstacles)
• Power supply: 3 V button cell battery CR2025 (1 pc)
• Battery life up to 1 year
• Red LED indicating when the button is pressed
• Standby current: ≤15 mA
• Dimensions (w × h × h): 32 × 11.5 × 56.5 mm
• Diameter of the key ring grommet: 4 mm
• Weight (without battery): 13 g

RFID tag specifications:

• Working range: 2 cm
• Battery-free operation
• Dimensions (w × h × h): 32 × 4.5 × 40 mm
• Weight (without battery): 5 g

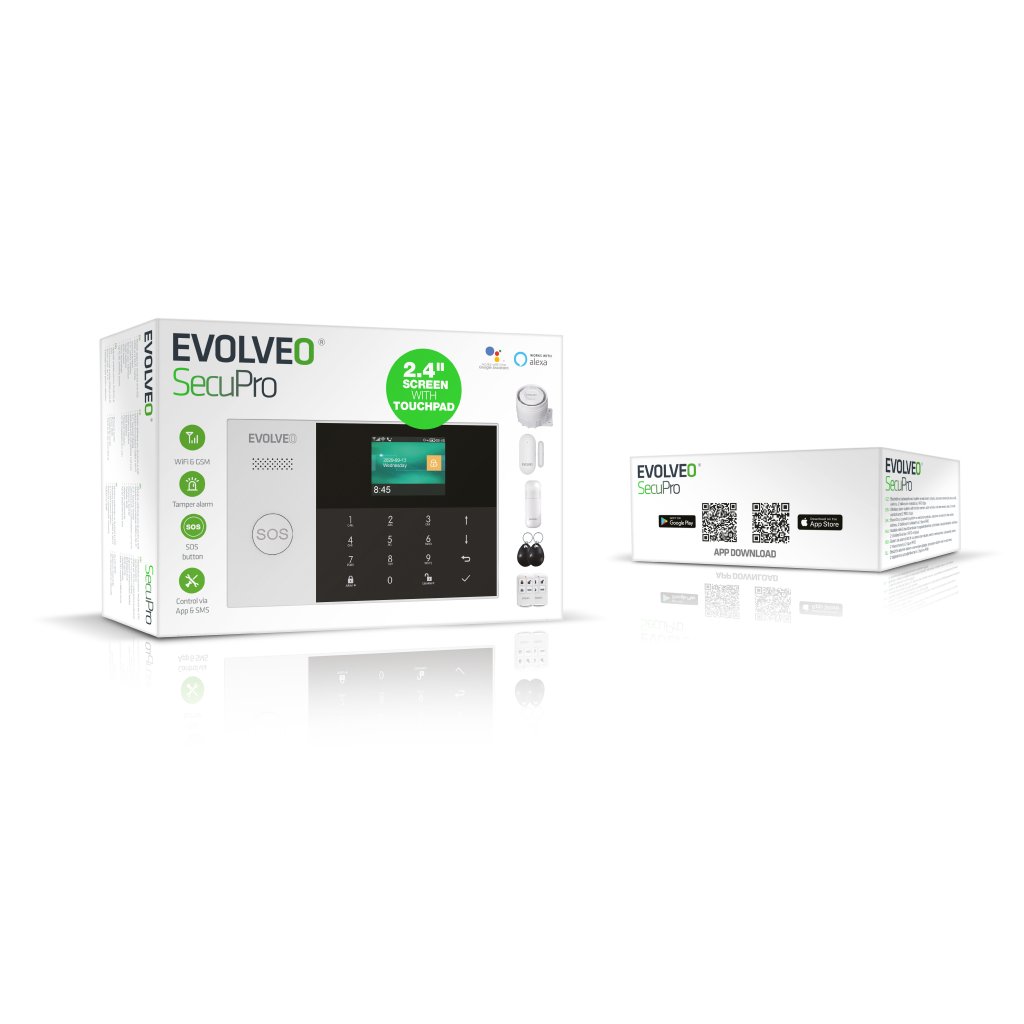

Package contents:

• Alarm (base)
• PIR motion sensor
• Mounting base with joint for PIR motion sensor
• Open window/door sensor (2 parts)
• Door/window sensor protective pads (2 pcs)
• Remote control (2 pcs)
• RFID tag/keychain (2 pcs)
• Siren
• Power adapter
• Power adapter cable
• Back-up fuses
• Pins 6 mm (4 pcs)
• PH screws 3,5 × 25 mm (4 pcs)
• Instruction manual (EN/DE/CZ/SK/HU/RO/IT/SLO)
